USR audio devices
The USR can support headphones via its front panel jack socket. On the rear panel a line
out jack socket can be used to drive powered speakers. The USR derives its audio feeds
from two sources: The headset socket on the front panel and the speaker socket on
the rear panel are linked via the USB connection of the CAM; while the Digital audio is
linked only via the video connectors.
To connect headphones and/or headsets
1 Connect your chosen audio device to the
3.5mm socket labeled on the front
panel. Please see below for a compatibility
list.
To
headphones/
headset
Supported devices
All standard headphones and some headsets are directly supported, others require
a suitable converter. It can be difcult to distinguish different headset standards,
however, some (but not all) CTIA/AHJ devices use white dividers on their jack plugs.
Supported
• Stereo headphones - Yes
• Mono microphone – Supported when used with an adapter
• CTIA/AHJ-compliant headset with mic - Yes
• CTIA/AHJ-compliant adapter with mic and headphones plugged in - Yes
Not supported
• OMTP-compliant headset with mic – Not supported directly
• OMTP-compliant adapter with headset plugged in – Not supported directly

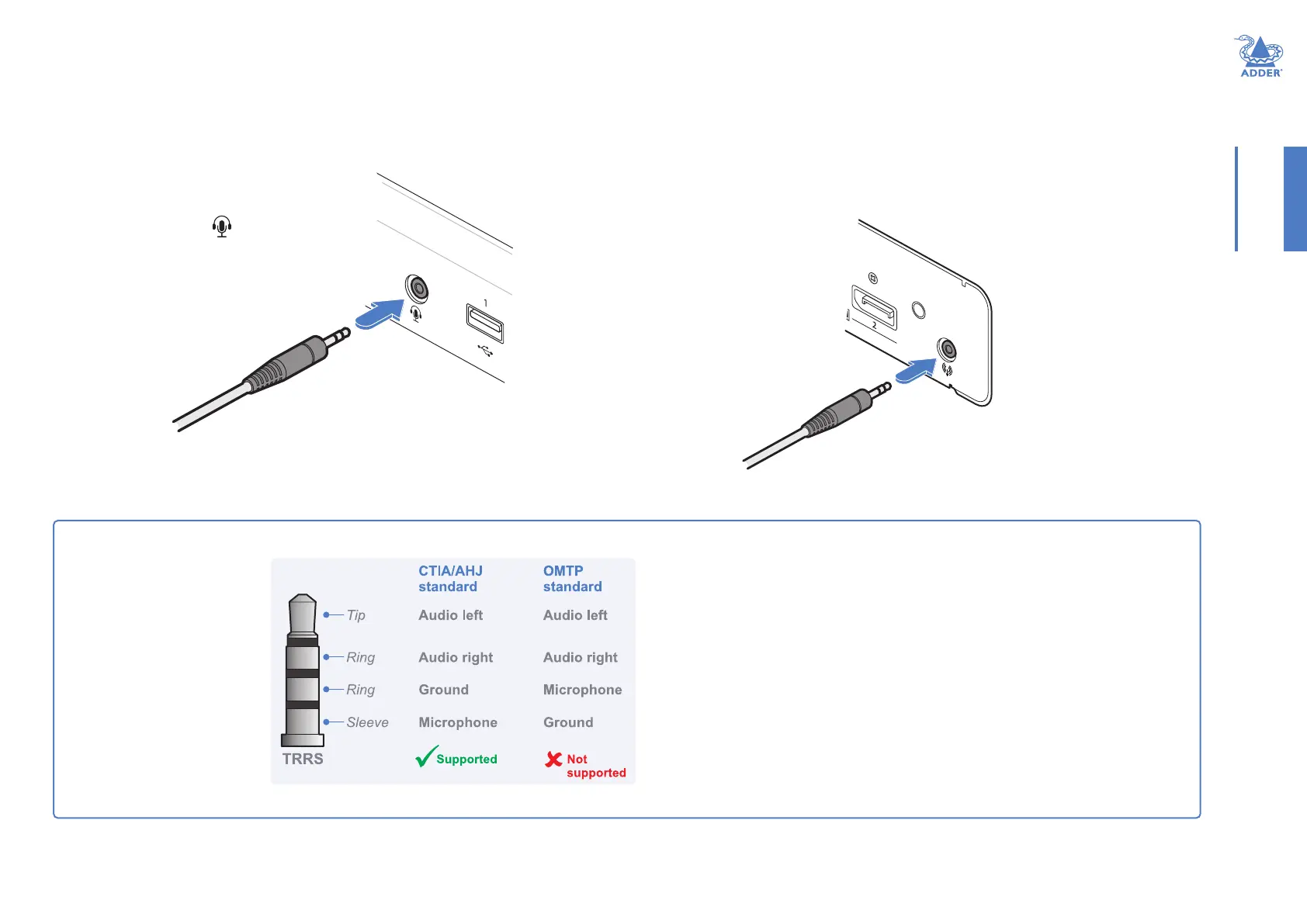

Headphone, headset and microphone support
The combined jack socket can
accommodate any standard
stereo headphones; it can
also support headsets which
conform to the CTIA/AHJ
standard. The lesser-used
OMTP standard is not directly
supported as its microphone
and ground connections
are swapped. If used, the
audio may be distorted and/
or the mic will not operate.
Suitable OMTP to CTIA/AHJ
converters are available.
To connect amplied speakers
1 Connect your speakers to
the 3.5mm line out socket
on the rear panel.
To speakers
