12
INSTALLATIONCONFIGURATIONOPERATION
FURTHER
INFORMATION
INDEX
USR power in
Each USR is supplied with a power adapter and country-specic power cord. The
supplied power adapter uses a locking-type plug to help prevent accidental disconnection;
please follow the instructions shown on the right when disconnecting a power adapter.

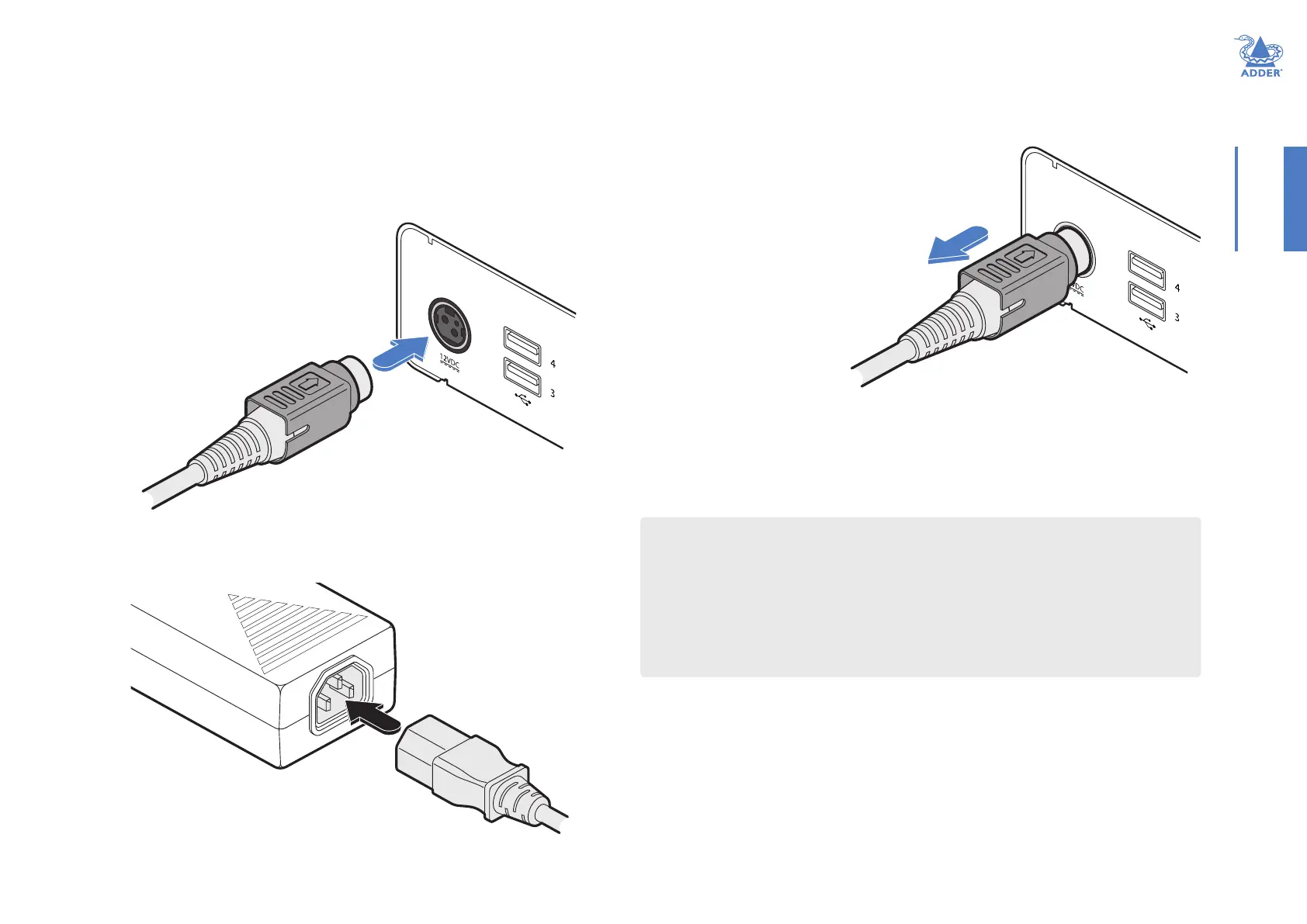

To connect the power adapter
1 Attach the output plug of the supplied power adapter to the power input socket on
the left side of the rear panel. As you insert the plug, pull back slightly on the outer
body to assist the locking mechanism until the plug is fully inserted.
2 Insert the IEC connector of the supplied country-specic power cord to the socket of
the power adapter.
3 Connect the power cord to a nearby mains supply socket.
To disconnect the power adapter
1 Isolate the power adapter from the
mains supply.
2 Grasp the outer body of the power
adapter plug where it connects with
the node.
3 Gently pull the body of the outer
plug away from the node. As the
body of the plug slides back, it will
release from the socket and you can
fully withdraw the whole plug.
IMPORTANT: Please read and adhere to the electrical safety information
given within the Safety information booklet provided with this product. In
particular, do not use an unearthed power socket or extension cable.
Note: The unit and the power adapter generate heat when in operation and will become
warm to the touch. Do not enclose them or place them in locations where air cannot circulate
to cool the equipment. Do not operate the equipment in ambient temperatures exceeding
40 degrees Celsius. Do not place the products in contact with equipment whose surface
temperature exceeds 40 degrees Celsius.
From the
power adapter
Gently pull back the plug outer
body to release the lock
