Dimmer Manager software
Instruction Manual - page 30
Issue: 004
Lighting Technologies
Chapter 8: status and error reporting
The four coloured flags in the icons
The dimmer units detect events such as Loss of DMX, Fan Failure, Missing phase,… These events
are already displayed on the dimmer unit’s local display. Thanks to ADN, they’re also reported
back to the Dimmer Manager PC.
Overview of all the error messages – direct access
In OnLine mode, a System Summary is shown permanently in the lower left hand corner of the
screen. To view the source of Warning or Error: double click on one of the four flags.

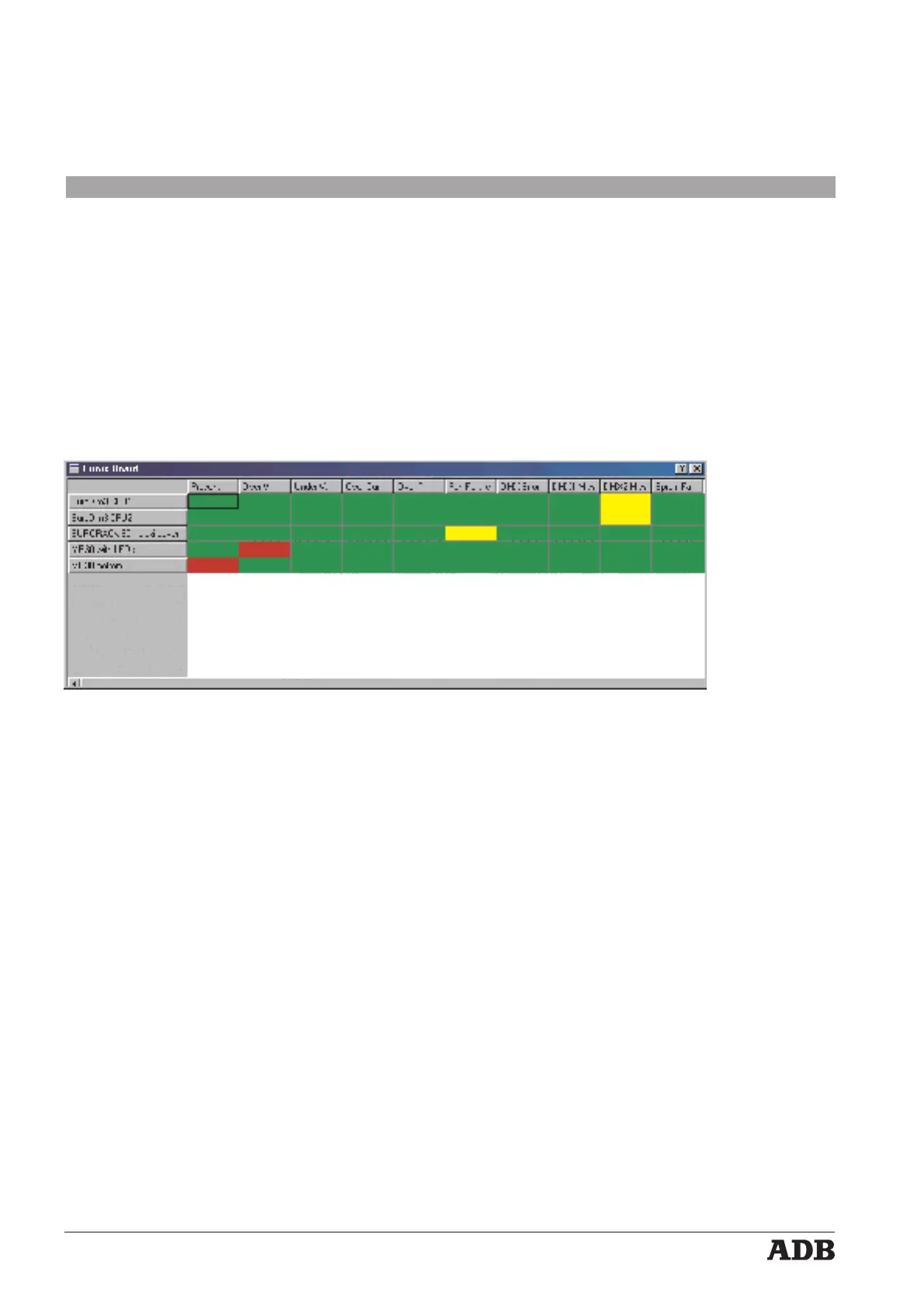

This opens a new window “Errors Board”.
• each line represents a dimmer unit; only dimmer units reporting a Warning or an Error are listed
• the columns represent all types of events
• the colour coding is defined in the Error filter of the dimmer unit.
We will now cover in detail the interpretation of the colours, and the use of coloured flags in the icons.
The three colours
The colour codes are
• Red = Error
• Orange = Warning
• Green = OK or Ignore
You are free to decide for each event which flag colour it gets. This choice is stored in the *.dim
file because the importance of an event usually varies with the show.
The coloured flags
When you are OnLine, the icons of dimmer units and groups will show four coloured flags. Each
flag represents a family of status or error messages. The colour of the flag - green, orange, red - is
user-defined depending on the importance of the event for this show. See How to edit the Error
Filter for a dimmer unit and The Global (Default) Error Filter.
