KLEMANTIS AS 1000 RGBW
19
7. APPENDIX
7.1 Klemantis installation steps
The following steps summarize the recommended procedure for installing a single row of units (for instance on the floor):
1. Calculate the proper installation distance (D) from the cyclorama.
2
. Place the Klemantis stably and make sure all Klemantis units are parallel to the cyclorama, at the set distance (D). Reduce the gap between two
adjacent fixtures to a minimum (1 - 2 mm).

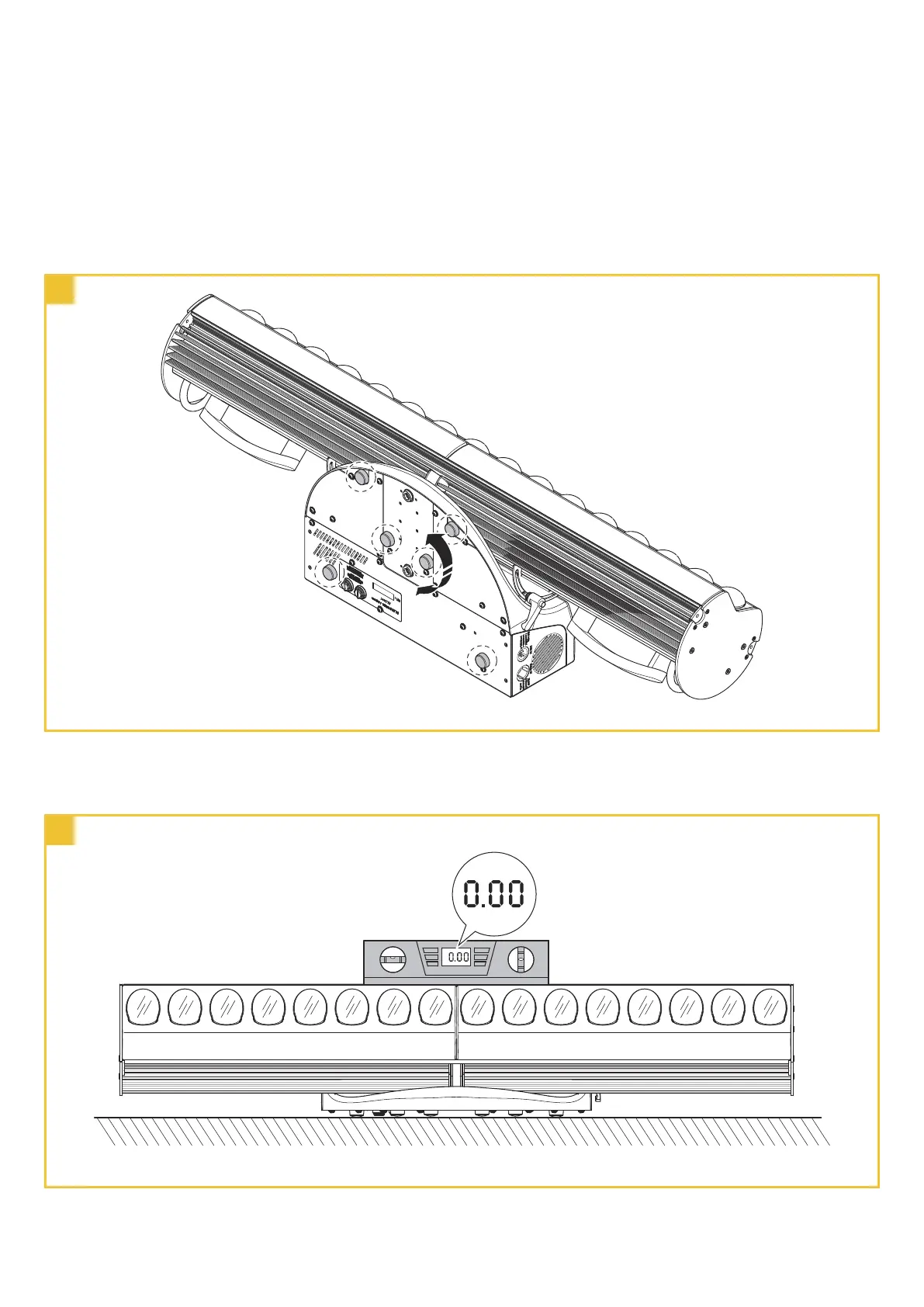

3. If the floor is not level, use the adjustable feet
(fig. 18)
4. Adjust the tilt of each unit (a digital bubble level smartphone app may be used):
a. Before tightening the clamps, set all the Klemantis units to 0° in the back-stage-to-front-stage direction
(fig. 19)
.
18
19
