Dimmer Manager software
Instruction Manual - page 24
Issue: 004
Lighting Technologies
Chapter 7: Learn Show, Learn – Scan – View Loads
This chapter describes the functions related to the Diagnostics of individual dimmers. It is applicable
to all EURODIM 3 cabinets, and to MEMOPACK, MEMORACK and EURORACK 60 which are
fitted with the optional Extended Diagnostics (current measurement).
Learn Show
The role of Learn Show is to identify the dimmers that are used in a show, so that the Loads tests
and reporting can be limited to the dimmers that you actually use. This avoids long lists of status
messages about dimmers which are irrelevant for the show. The information "used /not used" is
one of the many parameters stored in the *.dim file for the show.
Learn Show – manual mode
Learn Show is performed manually or automatically. For the manual identification of Used dimmers:
• select the dimmer units required in the show
E.g. by selecting some Groups, or by selecting the NETPORT XT
• Menu Bar > Dimmers > Command > Test Channel

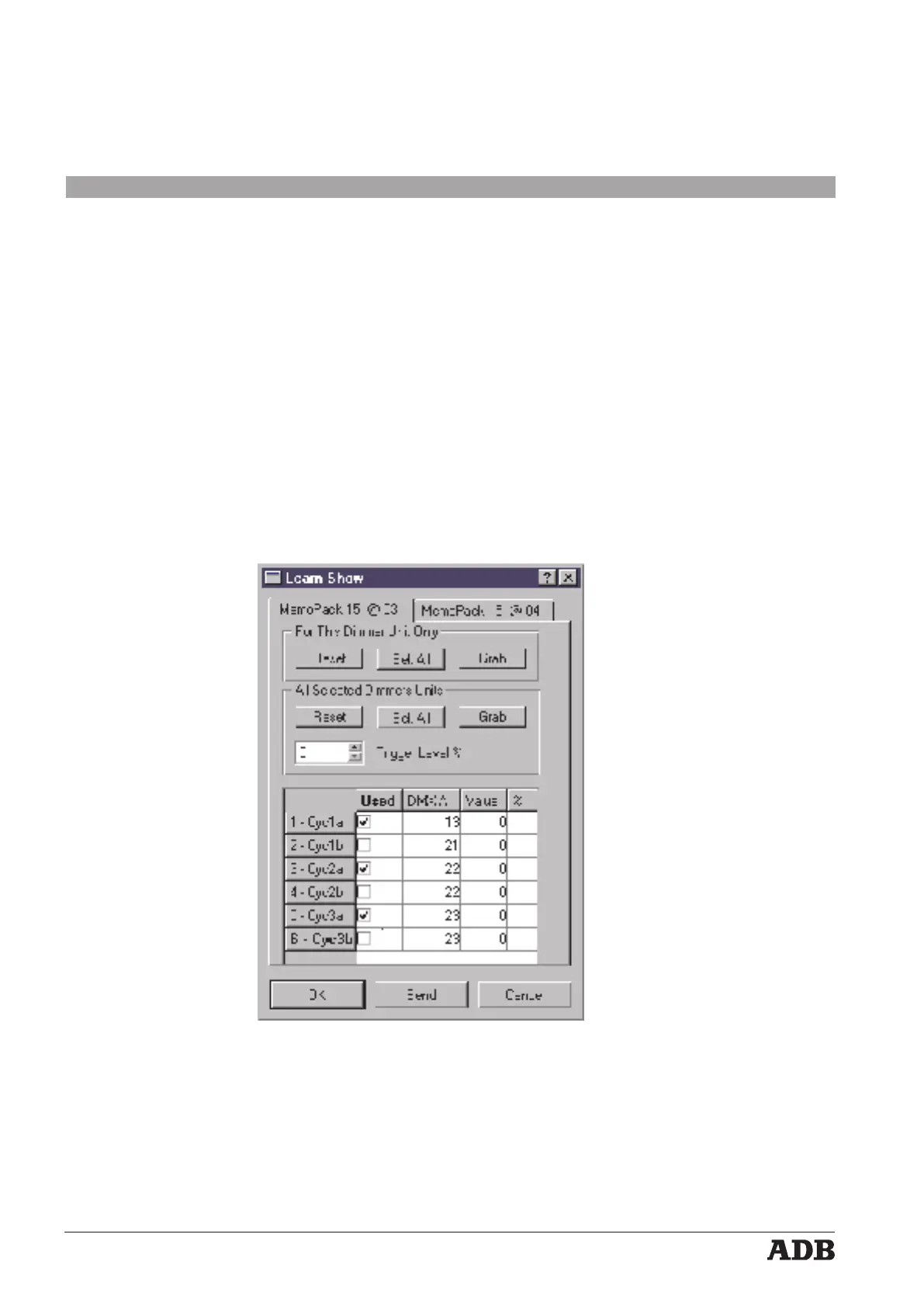

This opens a dialogue window “Learn Show”
• select the tab of a dimmer unit
• to select: tick in the column Used; to un-select: tick again
Learn Show - shortcuts for manual selection
• "Reset" will un-select all dimmers
• "Sel. All" selects all dimmers
• "For this dimmer only" to Reset / Select / Grab only the dimmers on the selected tab
• "All selected dimmer units" to Reset / Select / Grab in all selected dimmer units
A quick way to select "all dimmer units" is to select all the NETPORT XT's.
