EURODIM TWIN TECH
Page 30 sur 92

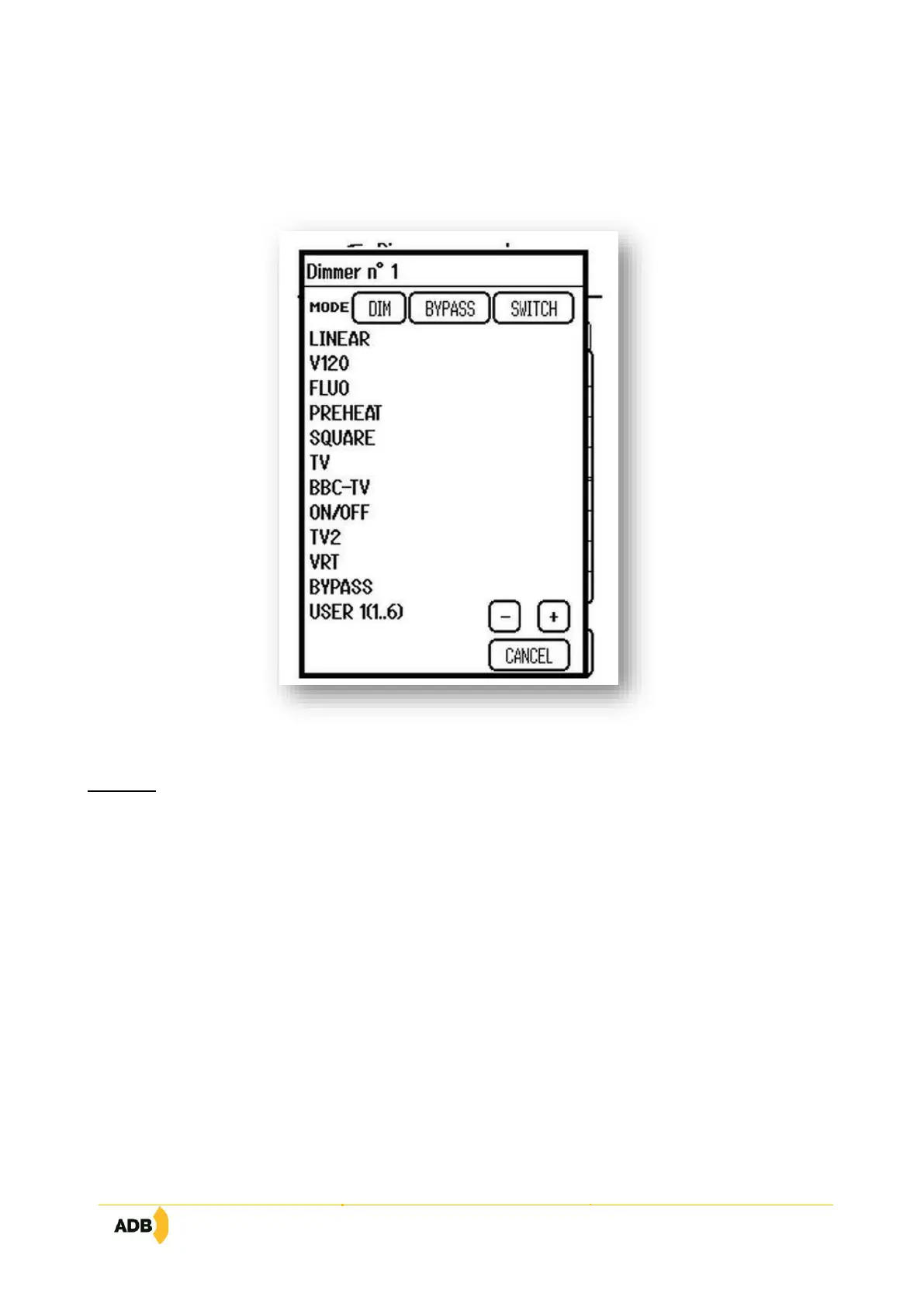

Push to a circuit on the column curves to choose the right curve:
Reminder
The left-hand column contains the referencing of the modules and circuits present in the cabinet:
− Example: Value 1/1: references module 1/circuit 1 of the module
− The right-hand figure indicates the output on the cabinet (from 1 to 128).
In the Laws column we select the law that we wish to attribute to a circuit.
(This choice will depend on the type of load connected at the circuit output)
Important: after validation, this action has an immediate effect on the light dimming.
In the Multiplying Factor column, we attribute a multiplying factor (between 0 and 100%) to the circuit.
Ultimately, the circuit control value is as follows:
DMX channel value → law applied to the circuit → multiplying factor.
