www.acti.com

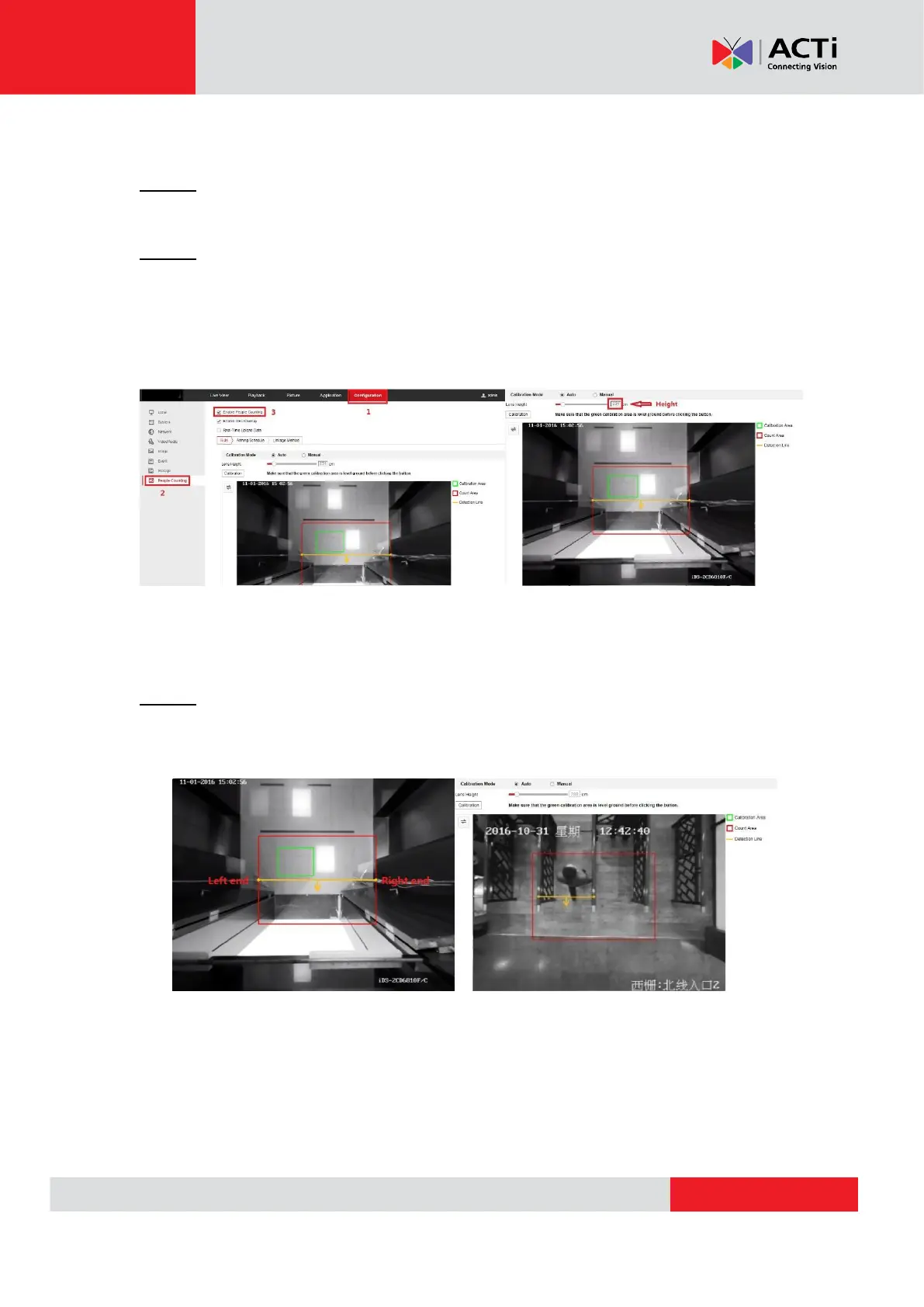

INSTALLATION GUIDE
10
2.
Configuration for single camera
Step 1: Enable People Counting: check [Configuration]-[People Counting] -
[Enable People Counting]
Step 2: Calibration- Select the green box, drag it to proper location and click
[Calibration]. After this, “Height” in the configuration page will refresh (close
to the real height). A red box, which means the counting scope, and yellow
detection line will turn up. The arrow shows the direction of entering. See
picture below:
Notice
:
If auto calibration fails, switch to [Manual] and input the measured “Height”,
then click [Calibration].
Step 3: Detection line: move the detection line to proper location, about 0.5m
to the door. Then adjust the length of detection line to the real door’s width
by dragging the detection line’s two ends. See picture below:
