9
2. Hardware Description
This product provides three different running speeds – 10Mbps and 100Mbps at
port 1 to port 8, 10/100/1000Mbps at port 9 and automatically distinguishes the
speed of incoming connection.
This section describes the hardware features of the FGSD-910P / FGSD-910HP. For
easier management and control of the switch, familiarize yourself with its display
indicators, and ports. Front panel illustrations in this chapter display the unit LED
indicators. Before connecting any network device to the FGSD-910P / FGSD-910HP,
please read this chapter carefully.

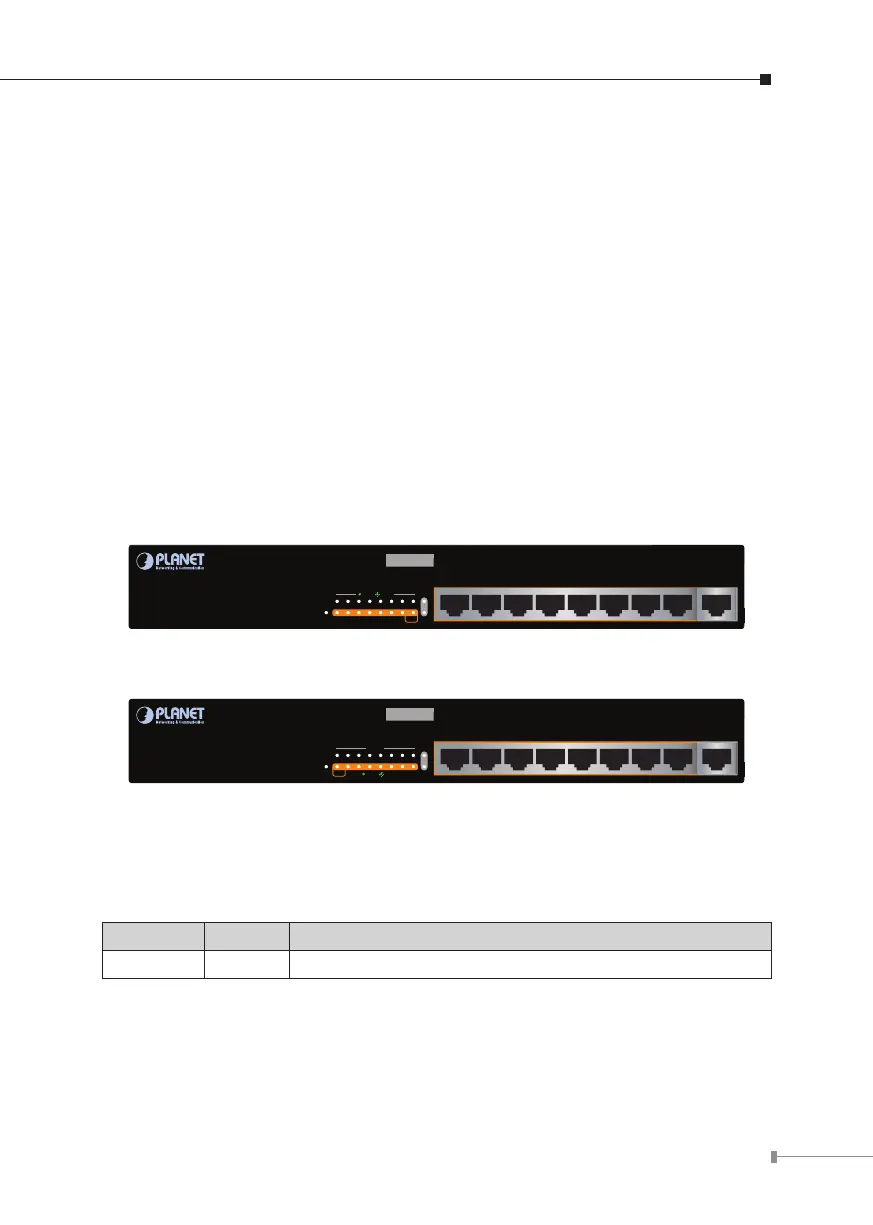

2.1 Front Panel
The Front Panel of the FGSD-910P / FGSD-910HP PoE Ethernet Switch consists
of 8x Auto-Sensing 10/100Mbps Ethernet RJ-45 Ports and 1x Auto-Sensing
10/100/1000Mbps Ethernet RJ-45 Port. The LED Indicators are also located on the
front panel of the PoE Ethernet Switch.
PoE
8-Port 10/100Mbps+1 Gigabit
802.3af
PoE Switch
FGSD-910P
1
PWR
2 3 4 5 6 7
Speed
10/100
LNK/
ACT
Gigabit
8 89
ACTLNK
8 97654321
Figure 2-1: FGSD-910P Switch Front Panel
PoE
8-Port 10/100Mbps+1 Gigabit
802.3at
PoE Switch
FGSD-910HP
1
PWR
LNK/ACT
2 3 4 5 6 7
1000
10/100
LNK/
ACT
Gigabit
8 89
ACTLNK
8 97654321
Figure 2-2: FGSD-910HP Switch Front Panel
2.1.1 LED Indicators
System
LED Color Function
PWR Green Light: Indicates the switch has power.
