Auto-control of utility and generator relay design
Utility or generator auto-control relays make it easy to compose the hybrid power system
The remote temperature and the voltage sensor design will collect accurate data of battery
temperature and voltage
Isolated RS485 with 5VDC/200mA to protect output for no power devices with MODBUS
protocol
To monitor or set the parameters by using the phone Apps or PC software.
★Tracer10415AN@48V system

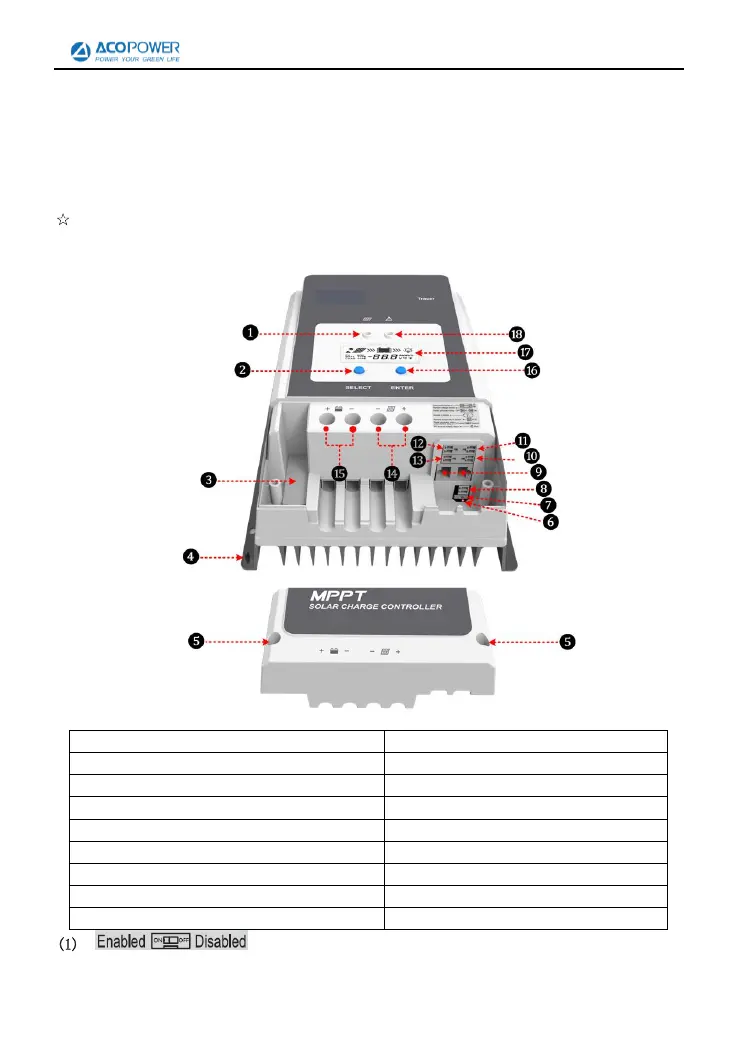

1.2 Characteristics
ᬚ-Charging LED indicator
ᬣ- Utility/Generator relay ON
ᬛ-SELECT button
ᬤ- RBVS Port
(4)
ᬜ-Fuse
ᬥ-Load control relay
(5)
ᬝ-Grounding Terminal
ᬦ- Utility/Generator relay OFF
ᬞ-Cover screw holes M4
ᬧ-PV Terminals
(6)
ᬟ-PV reverse polarity alarm indicator
ᬨ-Battery Terminals
(6)
ᬠ- Generator and load relay enable
ʙ
ᬩ-ENTER button
ᬡ- RTS Port
(2)
ᬪ-LCD
ᬢ- RS485 port(5VDC/200mA)
(3)
ᬫǦFault LED indicator
(1) Generator and load relay enabled when the switch is ON;
Generator and load relay is disabled when the switch is OFF.
