3.6 Steamer Connections

The Evolution Gas Steamer is available in a connected and

connection-less models.

Both the connection-less and connected model will require a

gas connection and an electrical connection.

CONNECTED UNITS:

The connected model in addition to the gas and electrical

connection will require a water connection and access to a

ﬂoor drain or sink to route a drain hose (not supplied) to allow

condensate to be removed and to drain the steamer when

required.

See FIGURE 5 for identiﬁcations of the required steamer

connections.

CONNECTIONLESS UNITS:

This model must be manually ﬁlled with tap water and must be

ﬁlled throughout the cooking process to assure consistent cook

times.

Do not use the “Low Water Indicator” as your indication

that this steamer requires water as this actually turns o the

heat to the product thus stopping the cooking process.

A full size steam table pan or a 1/1 gastronome pan must

installed in rails under the steamer any time the steamer is

operating and anytime that the steamer is being cleaned or

drained of the water in the cooking chamber. Failure to follow

this directions will cause a the steamer to fail which is not

covered under the limited warranty (FIGURE 6).

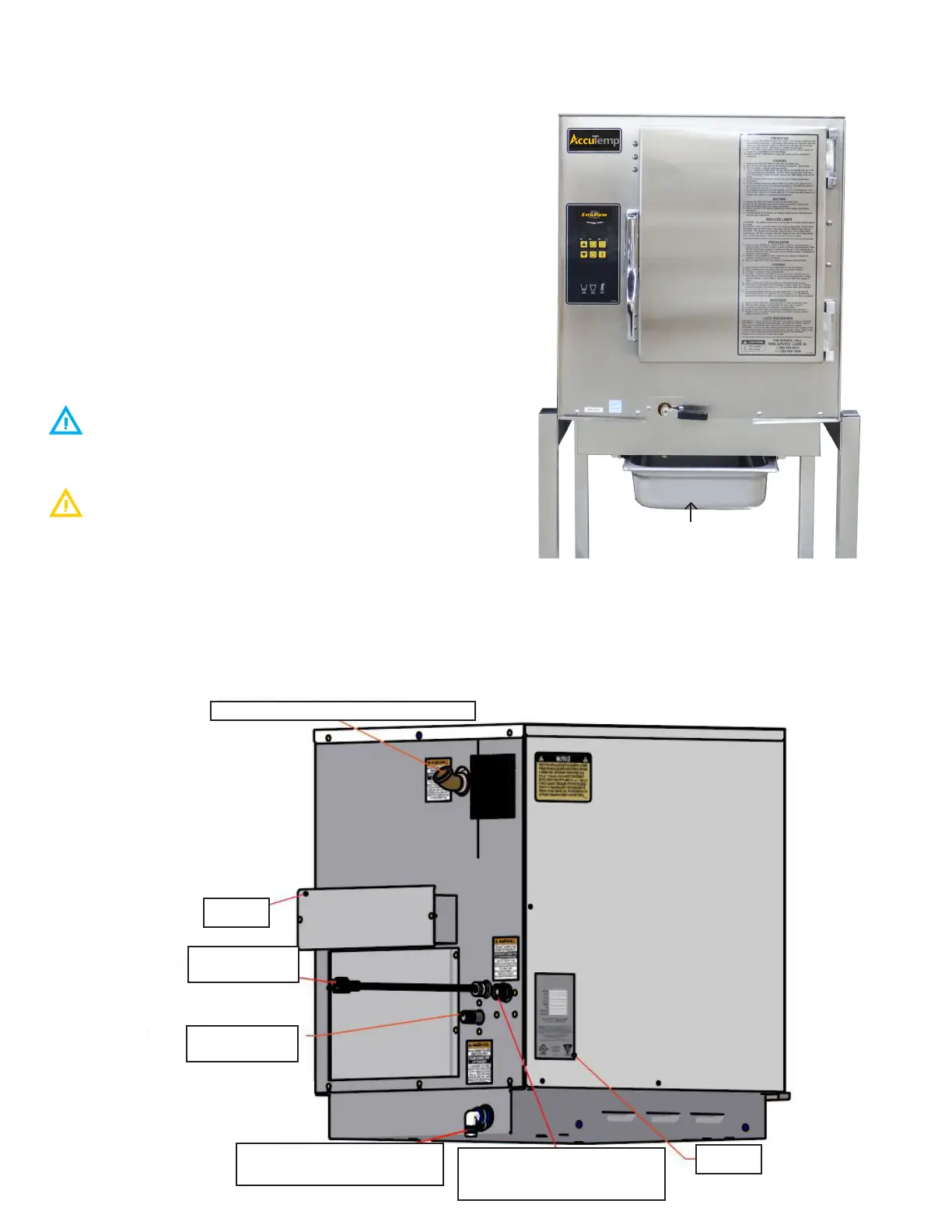

FIGURE 5  TEXT ENCIRCLED BOLD ARE SHARED

CONNECTIONS BETWEEN BOTH MANUAL AND AUTOFILL

UNITS

DRAIN PAN

FIGURE 6: MANUAL FILL UNIT ON SINGLE STAND

3/4” Cooking Chamber Exhaust Vent

Flue

Power Plug -

120VAC

3/4” Barbed Drain Connec-

tion (Connected Models Only)

3/4” GHT Potable Water

Connection (Connected Models

Only)

Data Tag

1/2 Gas Supply

Connection
