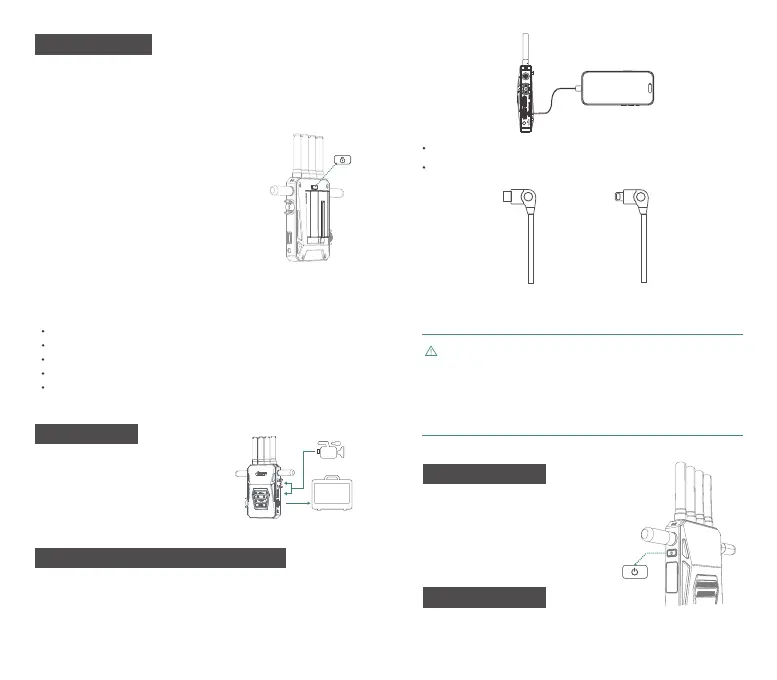

CineView Master 4K supports NP-F series batteries and DC power
supply. The power supply system supports hot-swapping, i.e., when
DC power is supplied, the NP-F batteries can be replaced without
powering down the device and vice versa.
5.4 Power Supply
NP-F Batteries
To install the NP-F970/F750/F550 batteries into
the CineView Master 4K:
Insert the batteryinto the slot at the back of the
CineView Master 4K as shown in the illustration.
Push downon the battery until you hear a “click”
sound, ensuring it is securely installed.
To remove the battery, press the battery lock
and pull the battery out.
Please use the corresponding DC adapters:
Connector: 5.5mm x 2.1mm.
Input Voltage: 7.4-16.8V.
Center Positive.
Output current should be no less than 2A.
It is recommended to use a 9V/2A or 12V/2A DC adapter.
DC Power
5.6 Wired USB Video Output to iOS Device
Use the provided USB-C to Lightning or USB-C to USB-C cable to
connect the transmitter's VIDEO-OUT port to your iOS device for
wired video transmission.
5.5 Connection
Use SDI or HDMI cables to connect the
CineView Master 4K with camera and
other monitoring devices.
5.7 Power On/Off
Power On: Press the power button for
1 second, the LCD screen and both
indicator lights will turn on.
Power Off: Press and hold the power
button for 3 seconds to power off.
5.8 Group Setting
Please pair the transmitter and receiver(s) before use. (refer to 6.3
Group Setting/Pairing).
iOS Device (USB-C Port): Use a USB-C to USB-C cable.
iOS Device (Lightning Port): Use a USB-C to Lightning cable.
USB-C to
Lightning cable
USB-C to
USB-C cable
1. Only the Accsoon proprietary USB-C to Lightning cable
can be used for connecting the CineView Master 4K's
transmitter to iPhone/iPad.
2. In addition to the accessories that come with the
product, other accessories required for installation need
to be purchased by the user.
