Rear view

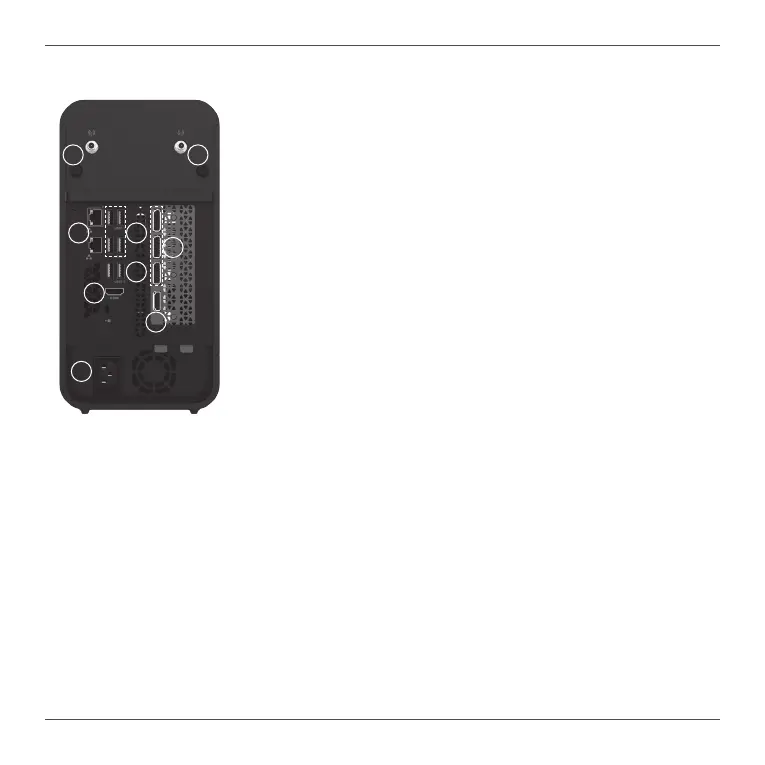

Refer to the diagram below to identify the components on this side

of the system.

1. WiFi antenna connectors

The WiFi antenna connector supports WiFi antenna module.

2. LAN ports

The eight-pin RJ-45 LAN ports support standard Ethernet

cables for connection to a local network. The LAN port marked

with K is for Killer Ethernet.

3. USB 3.1 port

The USB 3.1 port supports the SuperSpeed USB 3.1 devices

and is backwards compatible with USB 3.0/2.0/1.1 devices.

Use this port for USB 3.1 devices for maximum performance

with USB 3.1 compatible devices.

4. USB 3.0 ports

The USB 3.0 port supports the SuperSpeed USB 3.0 devices

and is backwards compatible with USB 2.0/1.1 devices. Use

this port for USB 3.0 devices for maximum performance with

USB 3.0 compatible devices.

2 3

5. HDMI ports

The HDMI (High Denition Multimedia Interface) port supports a UHD device such as an LCD

TV or monitor to allow viewing on a larger external display.

6. DisplayPorts

DisplayPort supports both external (box-to-box) and internal (laptop LCD panel) display con-

nections.

7. Power input (AC 100-240V, 50-60Hz)

Connected with power cord to mains for AC input.
