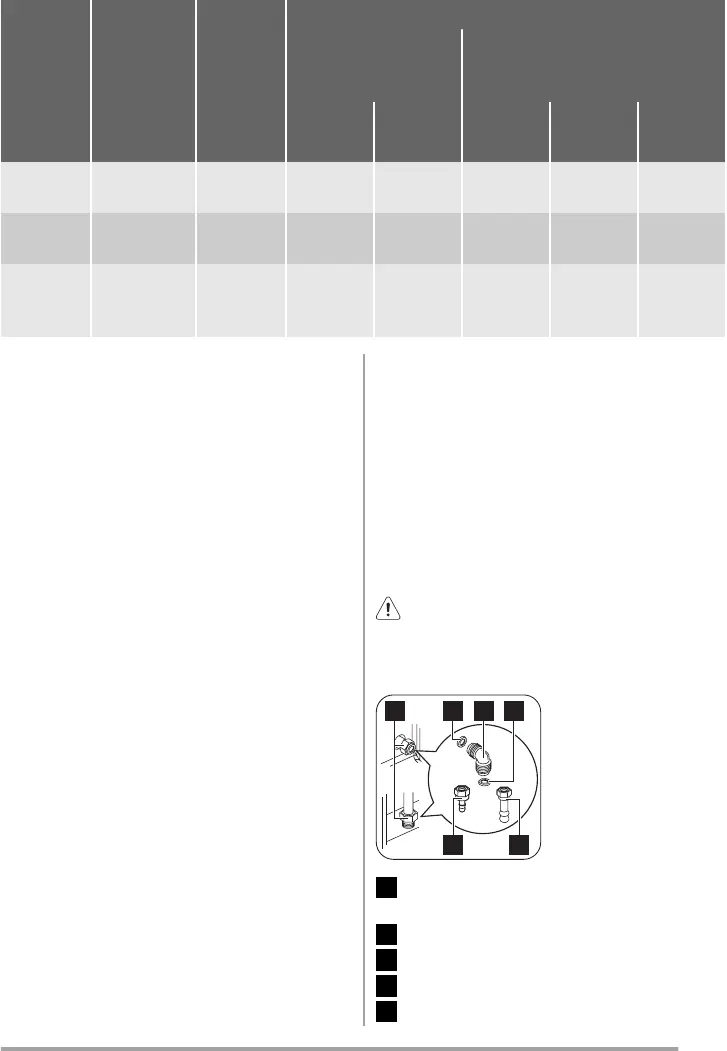

Gas burners

BURNER

NORMAL

POWER

REDUCED

POWER

NORMAL POWER

NATURAL GAS

G20 (2H) 20 mbar

LPG

(Butane/Propane) G30/G31 (3+)

28-30/37 mbar

kW kW

inj. 1/100

mm

m³/h

inj. 1/100

mm

G30 G31

g/h g/h

Auxiliary

burner

1.0 0.33 70 0.095 50 73 71

Semi-rapid

burner

2.0 0.45 96 0.190 71 145 143

Rapid burn-

er

3.0 (natural

gas)

2.8 (LPG)

0.75 119 0.286 86 204 200

Gas Connection

Choose fixed connections or use a flexible pipe in stain-

less steel in compliance with the regulation in force. If

you use flexible metallic pipes, be careful they do not

come in touch with mobile parts or they are not

squeezed.

Flexible nonmetal pipes connection

If it is possible to easily control the connection in its full

area, you can use a flexible pipe. The flexible pipe must

be tightly attached by clamps.

Installation: use the rubber pipe holder. Always engage

the gasket. Then continue with the gas connection. The

flexible pipe is prepared for apply when:

– it can not get hot more than room temperature, high-

er than 30°C;

– it is no longer than 1500 mm;

– it shows no throttles;

– it is not subject to traction or torsion;

– it does not get in touch with cutting edges or corners;

– it can be easily examined in order to check its condi-

tion.

The control of preservation of the flexible pipe consists

in checking that:

– it does not show cracks, cuts, marks of burnings on

the two ends and on its full length;

– the material is not hardened, but shows its correct

elasticity;

– the fastening clamps are not rusted;

– expired term is not due.

If one or more defects are visible, do not repair the

pipe, but replace it.

Important! When installation is complete, make sure

that the seal of each pipe fitting is correct. Use a soapy

solution, not a flame!

The gas supply ramp is on the rear side of the control

panel.

Warning! Before gas connection disconnect

the mains plug from the mains socket or

switch off the fuse in the fuse box. Close the

primary valve of the gas supply.

1

2

32

4

5

1 Gas connection point (only one point is applicable

for appliance)

2 Gasket

3 Adjustable connection

4 LPG rubber pipe holder

5 Natural Gas pipe holder

15
