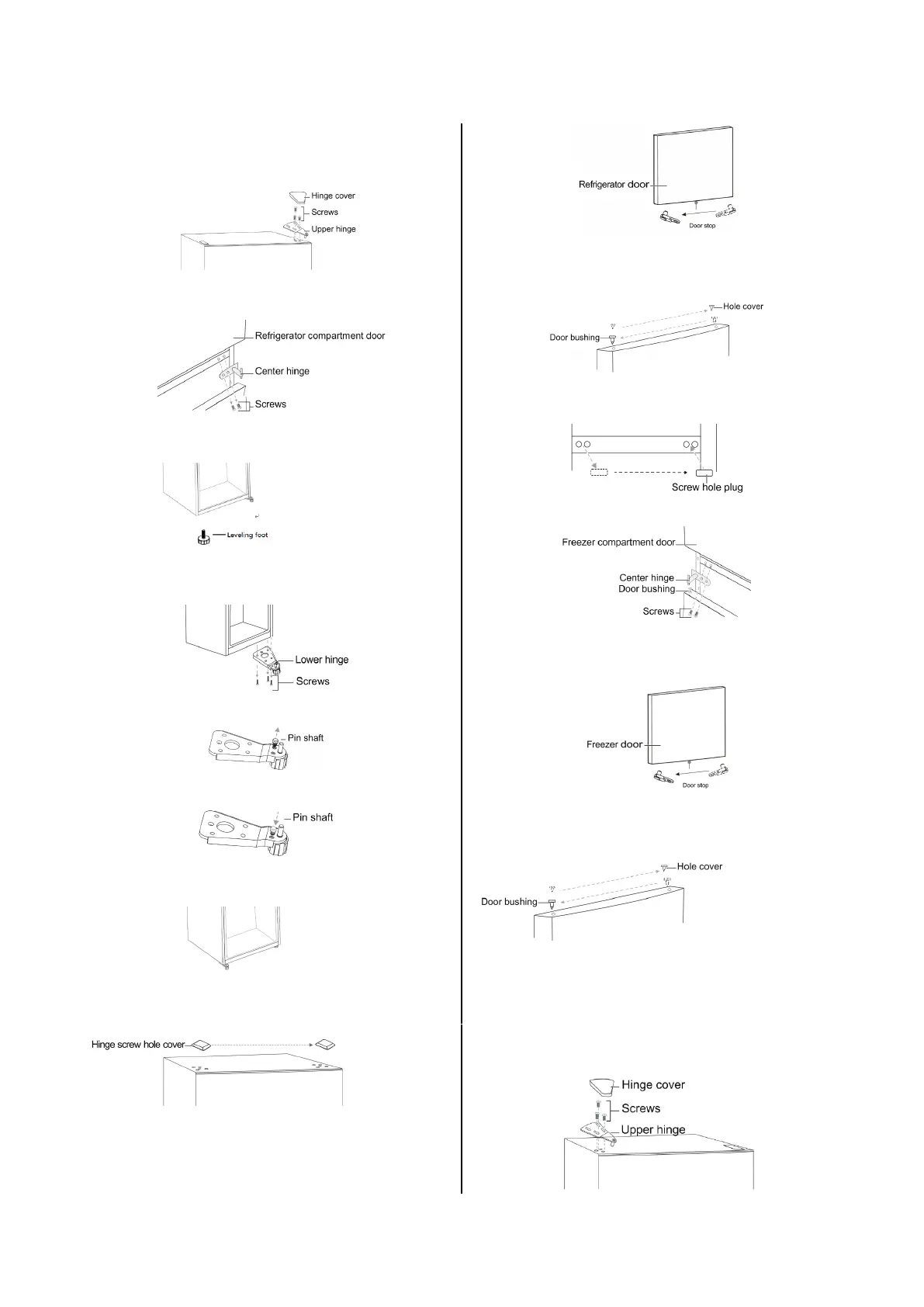

Reversing the Door Swing
1. Make sure that your refrigerator is unplugged.
2. Pry the hinge cover up and off, remove the three
screws that secure the upper hinge to the door, then
remove the hinge.
3. Remove the freezer compartment door from the
cabinet.
4. Remove the two screws that secure the center hinge.
5. Remove the freezer compartment door.
6. Remove the leveling foot on the left side of the cabinet,
and place it aside for later installation.
7. Remove the screws that secure the lower hinge to the
right side of the cabinet, then remove the hinge.
8. Remove the washer and nut that secure the pin shaft to
the right hole on the lower hinge, then remove the shaft
9. Insert the pin shaft into the left hole on the lower hinge,
then secure the shaft with the washer and nut.
10. Install the lower hinge on the left side of the cabinet.
11. Install the leveling foot having been removed to the
right side of the cabinet.
12. Remove the screw that secures the door stop from the
bottom right of the refrigerator compartment door, then
remove the door stop and install to the bottom left side.
13. Install the refrigerator compartment door.
14. Move the door bushing from the top right side of the
freezer door to the top left side of the door. And move the
left hole cover to the right side.
15. Remove the center hinge screw hole plug on the left
side of the cabinet, then install in the screw holes on the
right side of the cabinet.
16. Install the center hinge to the left side with the two
screws you removed previously.
17. Remove the screw that secures the door stop from the
bottom right of the freezer compartment door, then
remove the door stop and install to the bottom left side.
18. Install the Freezer compartment door.
19. Move the door bushing from the top right side of the
freezer door to the top left side of the door. And move the
lefthole cover to the right side.
20. Remove the hole cover from the top left side of the
cabinet and secures the cover on the top right side of the
cabinet.
21. Secure the upper hinge to the top left side of the
cabinet with the three screws you removed previously.
Before you tighten the upper hinge screws, make sure
that the top of the door is level with the cabinet and that
the rubber gasket makes a good seal.
22. Install the hinge cover over the hinge on the top left
side of the cabinet.
