038
Effect Area
Controls and Functions

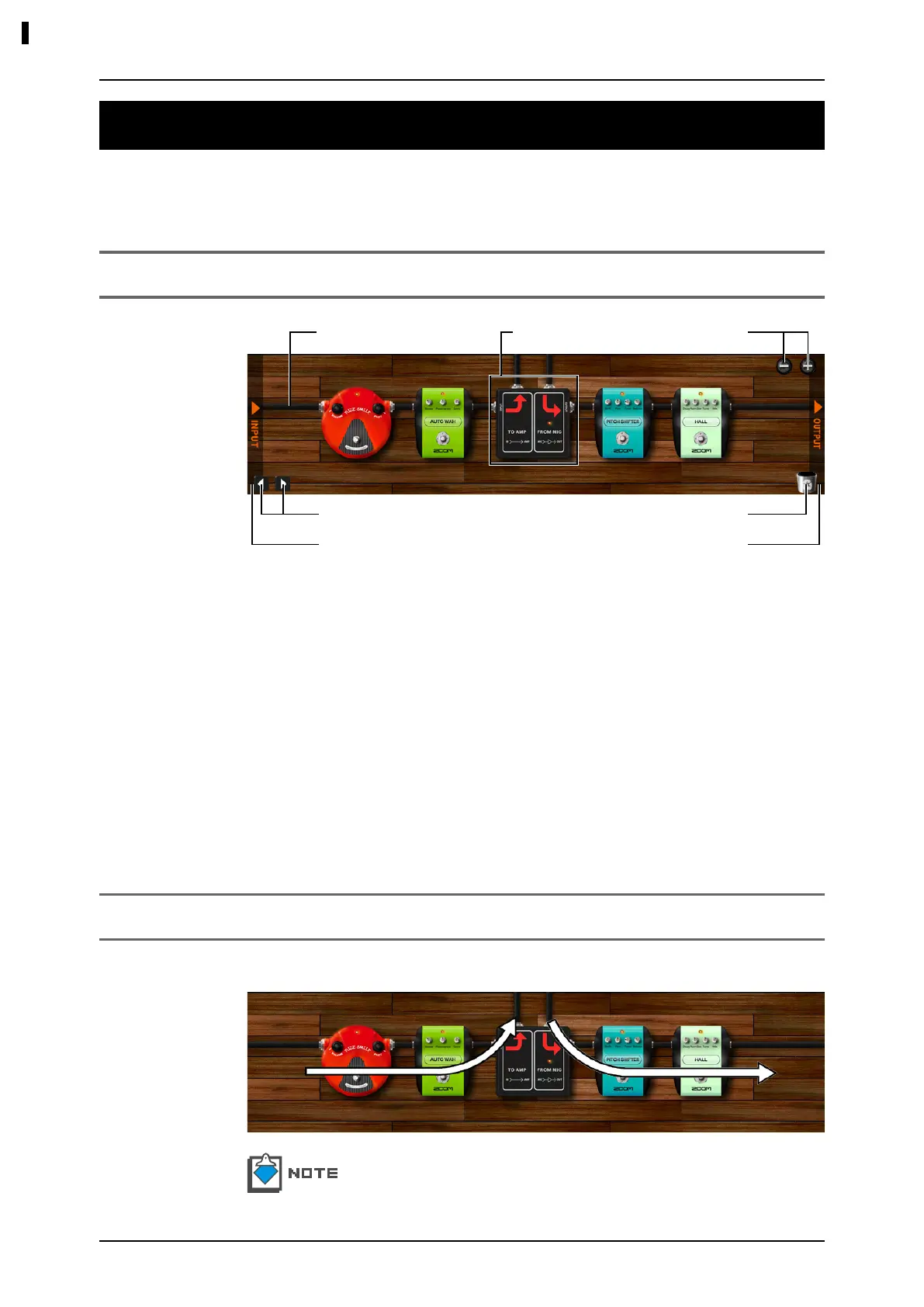

Effect Area
At the Effect Area, you can set, adjust, and position the instruments,
and wire the shielded cables freely.
①
Shielded cable This connects the signal between the instruments.
②
Amplifier Module This sends the input signal to the Amplifying
Area, and processes the signal in following order:
amplifier, cabinet, microphone.
(
→
P053)
③
[+][-] buttons These let you magnify the view of the Effect Area.
④
[LEFT][RIGHT] These let you zoom up the instruments one by
each.
⑤
[INPUT] bar This can be used to connect the instruments to
the input signal of ZFX Plug-in.
(
→
P047)
⑥
Trash can This lets you delete the instruments and shielded
cables.
⑦
[OUTPUT] bar This can be used to connect the instruments to
the output signal of ZFX Plug-in.
(
→
P047)
③
[+][-] buttons
⑤
[INPUT] bar
①
Shielded cable
⑦
[OUTPUT] bar
⑥…
Trash can
②
Amplifier Module
④
[LEFT][RIGHT] scroll buttons
Signal flow of Effect Area
The signal will be processed from left to right as below.
The shielded cables are available for both the stereo and monaural
signals.
scroll buttons
