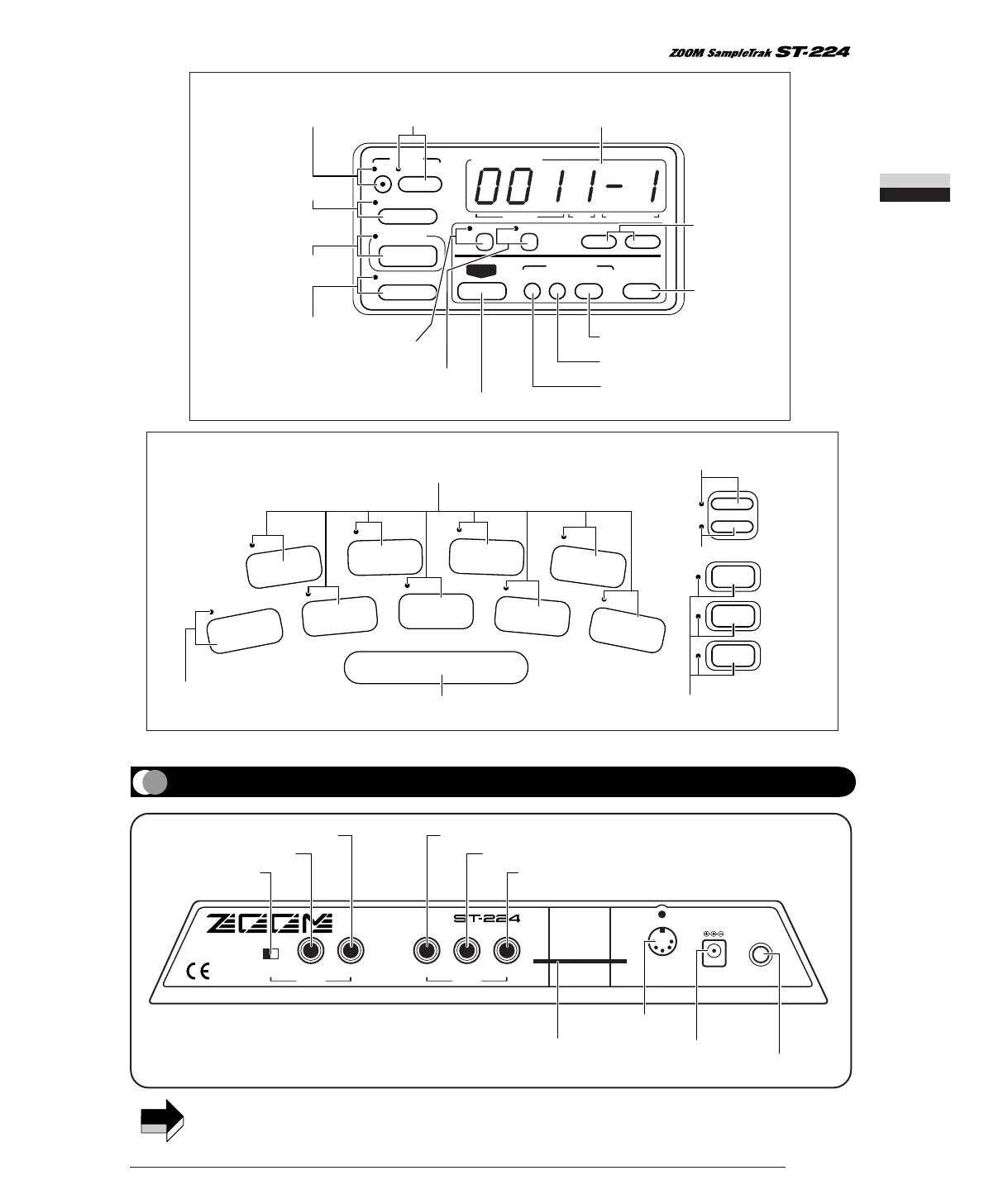

Names of Parts
Rear Panel
In this manual, names of front panel and rear panel controls and jacks are indicated by square brackets [ ].
NOTE
COPY DELETE
EXIT
LOAD SAVE
+
–
AUTO SYNC
PLAYLIST
TAP
BPM
SONG
PLAY/STOPREC
BPM/
VALUE
MEASURE
SAMPLE/SONGBEAT
BACKUP
SPECIAL
INTERNAL/DATA CARD
■ Display/sequencer section
Display
[SPECIAL] key
[-] [+] keys
[EXIT] key
[LOAD] key
[SAVE] key
[COPY] key & LED
[DELETE] key & LED
[INTERNAL/DATA CARD] key
[SONG REC] key & LED [SONG PLAY/STOP] key & LED
[TAP/BPM] key & LED
[PLAYLIST] key & LED
[AUTO SYNC] key & LED
ZOOM CORPORATION
MADE IN JAPAN
MODEL
L/M
O
N
O
PHONES
R DATA CARD MIDI IN DC9V
300mA
POWER
OUTPUT
L/M
O
N
O
LINE/MIC
R
INPUT
[INPUT R] jack
[OUTPUT R] jack
[INPUT L/MONO] jack
[PHONES] jack
[LINE/MIC] switch
[OUTPUT L/MONO] jack
[DATA CARD] slot
[MIDI IN] jack
[POWER] switch
[DC9V] jack
LOOP/MARK
4
SHIFT
OFFSET
6
SWING
PANNING
8
MIDI
TRIGGER/GATE
2
QUANTIZE
TUNING
SOURCE
SOURCE MIX
5
PRE COUNT
END POINT
3
TIME SIG
START POINT
1
BAR LENGTH
LEVEL
7
CLICK VOLUME
REVERSE
BANK
3
BANK
2
BANK
SONG
PAD
1
FUNCTION
■ Pad section
[PAD FUNCTION] key & LED
[SONG FUNCTION] key & LED
[BANK 1] - [BANK 3] keys & LEDs
[SOURCE] pad & LED
[LOOP/MARK] pad
Pads 1 - 8 & LEDs
