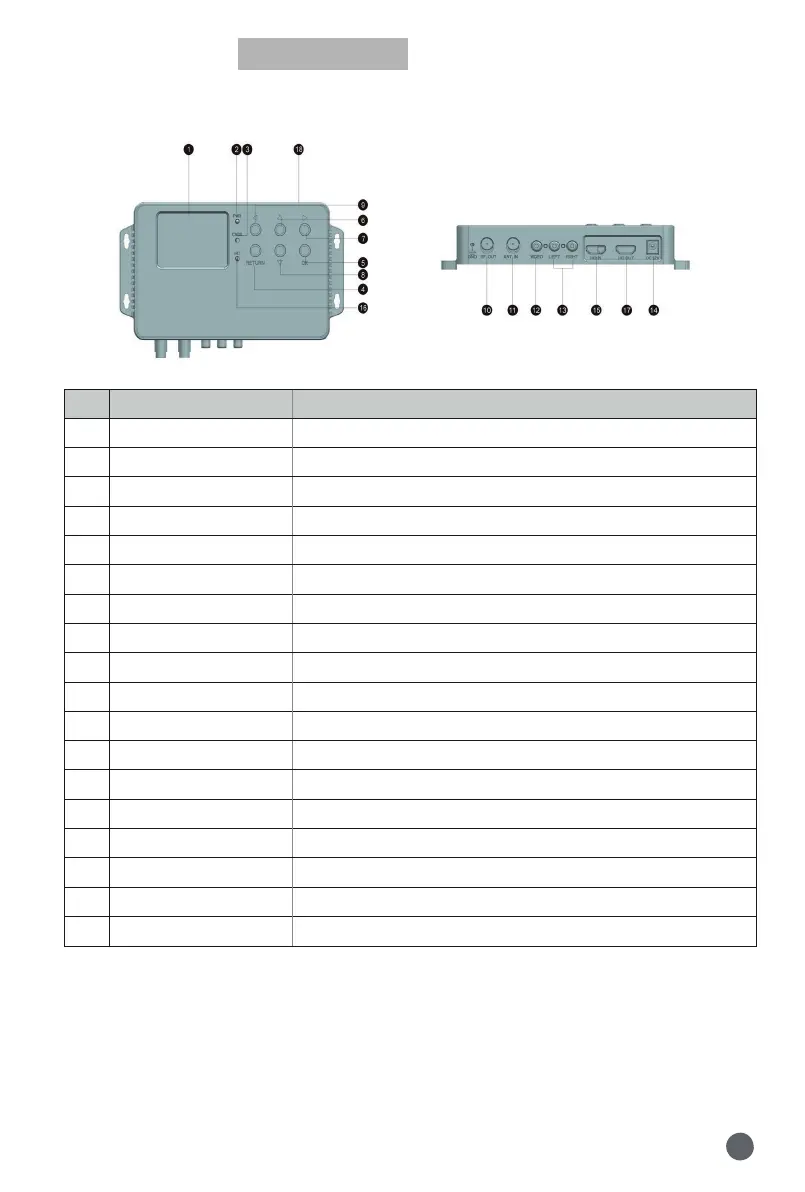

1.3! PRODUCT OVERVIEW & ILLUSTRATION
NO
Description
FUNCTION
1
LCD Screen
Video display
2
PWR
Power indicator light
3
CVBS
CVBS indicator light
4
RETURN
Return submenu and save settings
5
OK
Confirm the current operation
6
!
Change the frequency point or cursor up
7
"
Switch settings in menu or cursor right
8
#
Change the frequency point or cursor down
9
$
Switch settings in menu or cursor left
10
RF OUT
Rf output port
11
ANT IN
Terrestrial Digital signal input port
12
VIDEO IN
Composited video input port supports NTSC and PAL
13
AUDIO IN
Stereo audio signal input port
14 DC 12V IN Connect to Adaptor Input
15
HDMI IN
HDMI signal input port (Support 4K)
16
HDMI
HDMI indicator light
17
HDMI OUT
HDMI signal output port (Support 4K)
18
PC
Use for software upgrade
