Section 2. Cleaner Specications
2.1 General Specications
The general specifications for the cleaner are as follows:
x 2
A
B
C
D
x 2
x 2
E
x 2
F
G
H
I

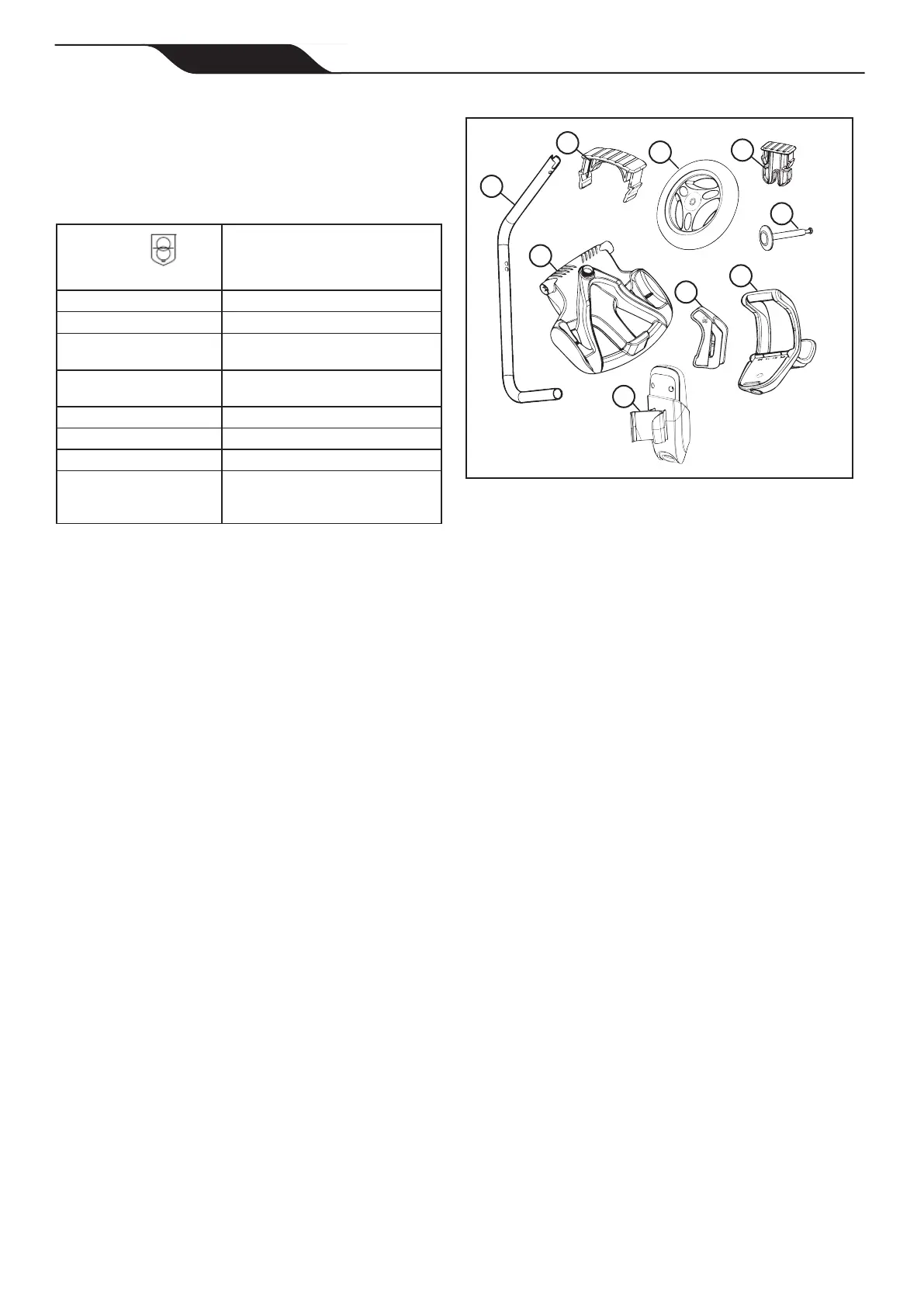

Figure 1. Transport Caddy Assembly Components
(VX50 4WD / VX55 4WD)
(a) handle frame
(b) support blocks (x 2)
(c) wheels (x 2)
(d) wheel locking clips (x 2)
(e) wheel axle / hubcap (x 2)
(f) base unit
(g) cleaner hook
(h) caddy handle
(i) remote control hook (VX55 4WD only)
When unpacking the cleaner and its components:
• Check to make sure each component is in the box.
• Check cleaner and components for damage during
transport.
• If there are any missing parts or damage, contact
Zodiac
®
at 1300 763 021.
.
Control box
supply
voltage
220-240VAC,50Hz;shortcircuit-proof
safetyisolatingtype
Supply voltage 30VDC
Installed load 150Wmax
Cable length
VX40/ VX50 4WD:
18m
VX55 4WD: 21m
Cleaner size
(WxDxH)
43x48x27cm
Weight of Cleaner 9.5 kg
Packed weight 19 kg
Filtration
All-purposeltercanister
Cycle lengths Variableprogrammingforcleaning
oor,walls,andwaterline.
From1.5-3.0hours.
The cleaner is a double-insulated product. A double-
insulated electrical appliance is one which has been
designed in such a way that it does not require a safety
connection to ground. The basic requirement for
double-insulation is that no single failure can result
in dangerous voltage becoming exposed so that it
might cause an electric shock and that this is achieved
without relying on an earthed (grounded) metal casing.
This is achieved by having two (2) layers of insulating
material surrounding live parts or by using reinforced
insulation. Therefore, devices having double-insulated
construction, such as this cleaner, do not utilize a
grounded (three-prong) cord/plug.
Section 3. Assembly
3.1 Unpacking
The packaging should contain the following items:
• Robotic cleaner
• Control box
• Control box base (VX40 only)
• Remote Control (VX55 4WD only)
• Transport and storage caddy assembly components
(VX50 4WD and VX55 4WD only)
H0516700_REV A
4
