MagnaPool™ | Installation Manual

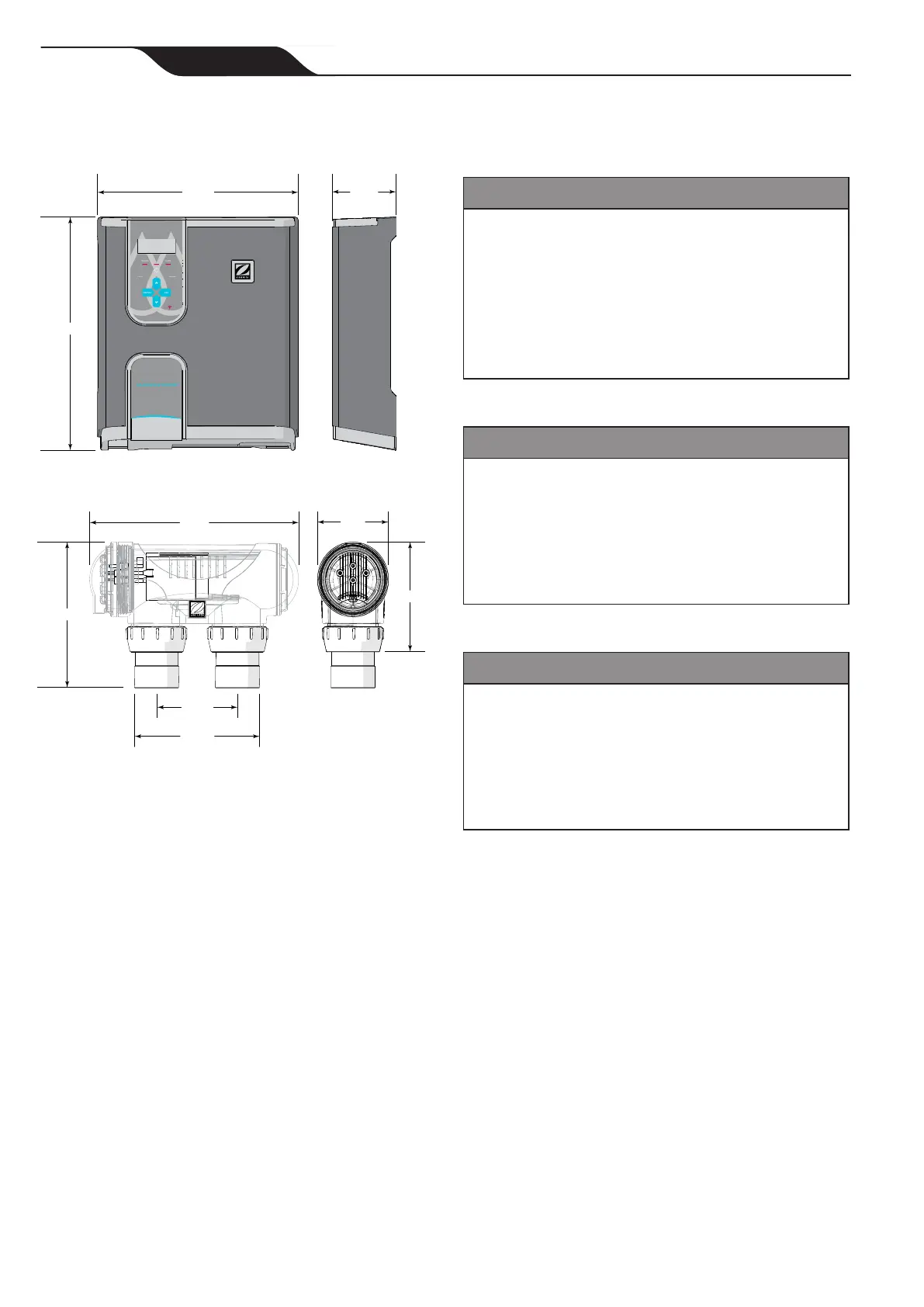

2.3 Dimensions
2.3.1 Controller
31.5 cm
9.6 cm
36.4 cm
Figure 1. Controller Dimensions
2.3.2 Cell
32 cm
11.5 cm
21.5 cm
11 cm
21.5 cm
15.5 cm
Figure 2. Electrolytic Cell Dimensions
2.4 Materials and Tools
2.4.1 Controller
Tools Needed for Installation
• Power Drill
• 7 mm Drill Bit - Hammer Drill Bit
(only necessary to drill into brick or concrete)
• Pencil or Marking Pen
• Flat Head Screwdriver
• Pozidiv Screwdriver
• Small Flathead or Slotted Screwdriver
2.4.2 Cell
Tools Needed for Installation
• PVC Cutter
• PVC Cement
• Pencil or Marking Pen
• Check Valve
• 40 mm or 50 mm PVC pipe
2.4.3 pH ORP POD
Tools Needed for Installation
• Power Drill
• Pencil or Marking Pen
• Flat Head Screwdriver
• Phillips Head Screwdriver
• Small Flathead or Slotted Screwdriver
