4.5 Replacing the Track

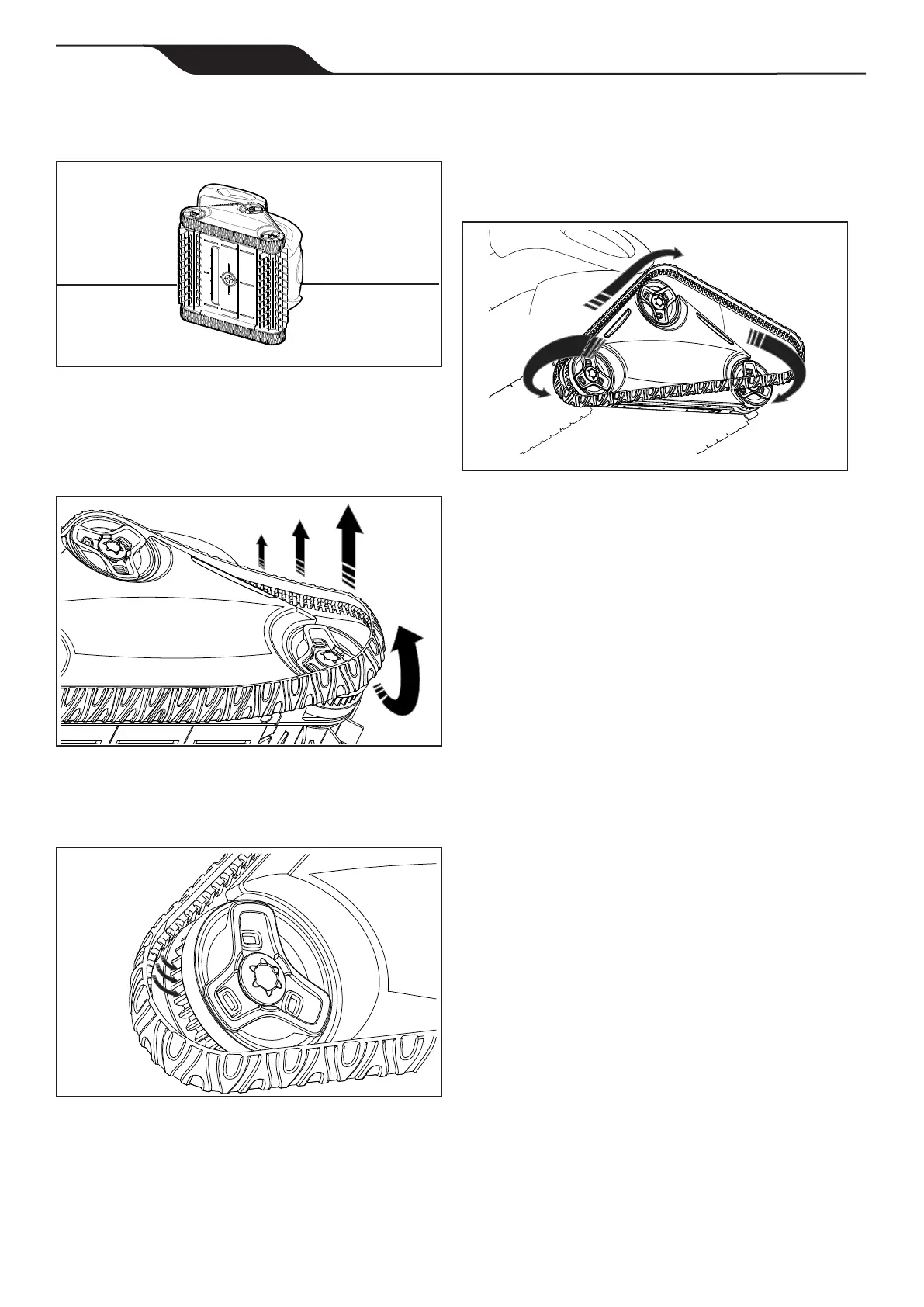

1. Stand the cleaner on its side (Figure 31).
Figure 31. Stand Cleaner on its Side
2. Starting at one of the wheels, pull on the inside
of the track to separate the tire lip from the
wheel. See Figure 32. Remove the track from
the cleaner.
Figure 32. Pull the Track Over Wheels to Remove
3. To install a new track, place the inside rib of
the track into the groove in the rst wheel. See
Figure 33.
Figure 33. Position Track into Wheel Grooves
1
4. Stretch the track around the second wheel,
then pull over the last wheel (see Figure 34).
Push and position the rib of the track so that
the track is seated properly in the groove of the
wheel.
1
3
2
Figure 34. Stretch Track Around Wheels
5. Verify the rib of the track is positioned
properly within the groove of each of the three
wheels and under the track guide. If necessary,
turn the wheels gently to seat the track.
16
H0574000_REVA
