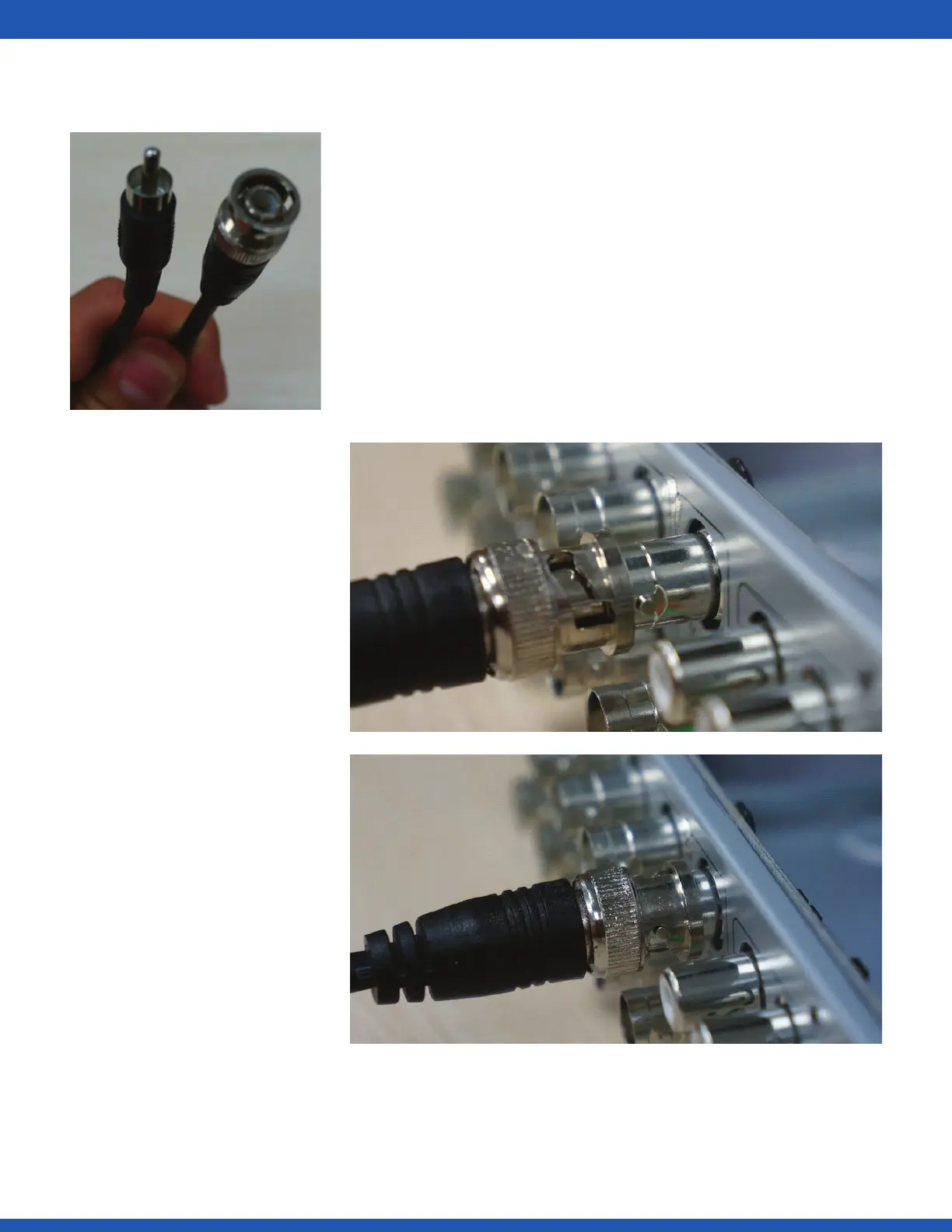

Connecting Video & Audio BNC cables
BNC connections are uncommon with the exception of
some very specifi c applications for it. If you are going
to connect to your display via BNC, you will need a BNC
male to RCA male cable (as shown on the right). If
you want to connect both a video and audio, you will
need two such cables. Please follow the instructions
to successfully connect your display and audio via BNC
connection:
1. On the output BNC
connectors on the rear
panel of your DVR, you
will see two protrusions
(one on each side of the
connector). On the male
BNC end of your cable,
you will see two slots.
Line up the slots with the
protrusions, as shown in
the picture below:
2. Push the connector
in, and twist until the
connection is secure, as
shown:
3. If you are making a video connection, plug in the RCA male end of the cable to the
yellow composite port on your display. If you are making an audio connection, plug in
the RCA male end of the cable to either the white or red ports on your monitor.
