Island Hood Installation
The recommended height to install your hood is 30˝ minimum and 36˝ maximum
above the cooktop. For Outdoor (304 Series) hood installation, the unit must be
installed at a minimum of 36˝ and a maximum of 42” above the grill.
1. Locate the center above the stove where the hood is to be installed. Ensure that
the bracket will be secured to solid wood backing. Attach mounting bracket to
the ceiling.
2. Attach the transition piece and ducting to top of the hood. Figure 1 and 2
3. Attach the four long angle iron pieces to the hood’s motor housing. Figure 3
4. Determine desired height and attach the four short angle iron pieces to the long
angle iron pieces that are attached to the hood. Figure 3
5. Install the duct work in the center of the ceiling bracket.

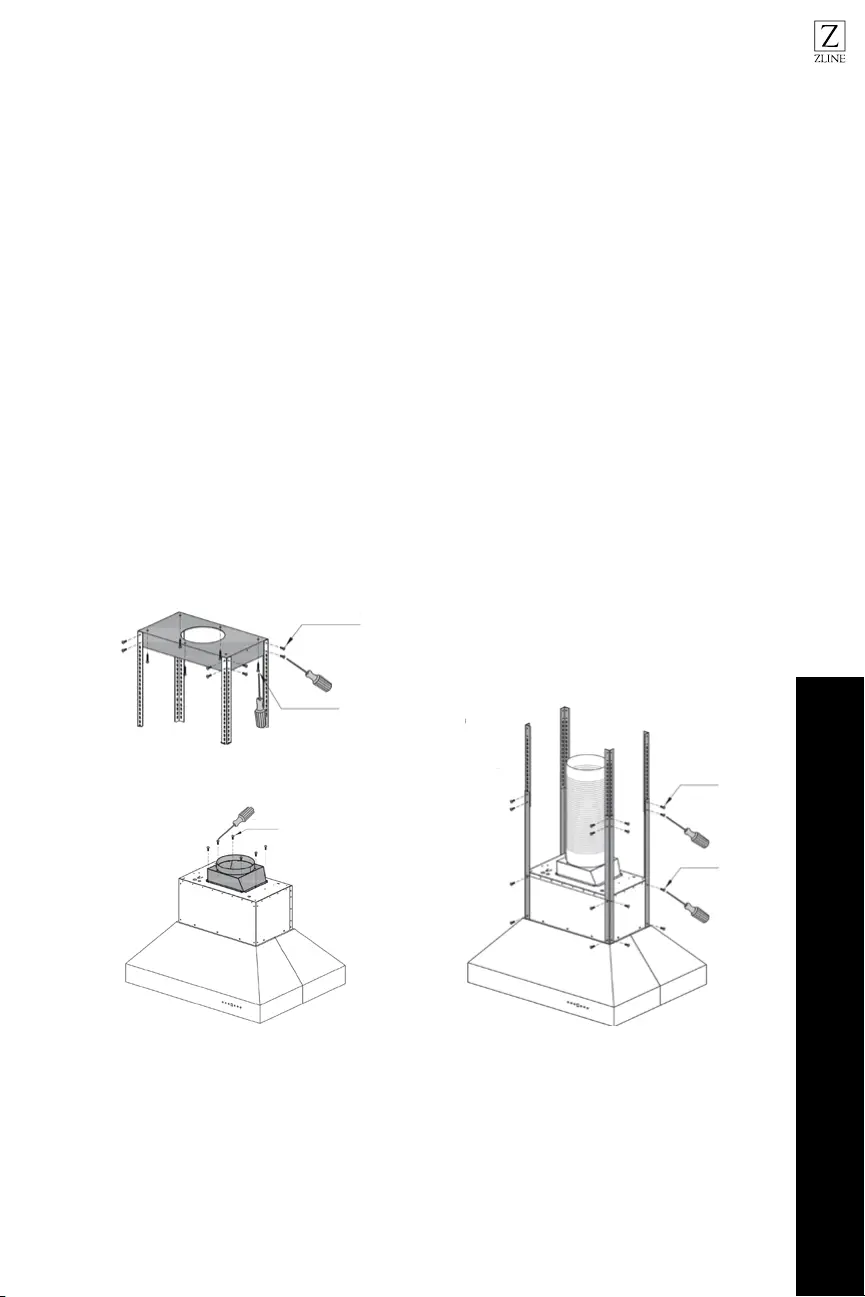

ISLAND HOOD INSTALLATION
Figure 1
Figure 2
Figure 3
1. Screw
2. Screw
Screw
Screw
Screw
