Tornado II & Tornado III Use, Care, and Installation Guide
ZEPHYRONLINE.COM

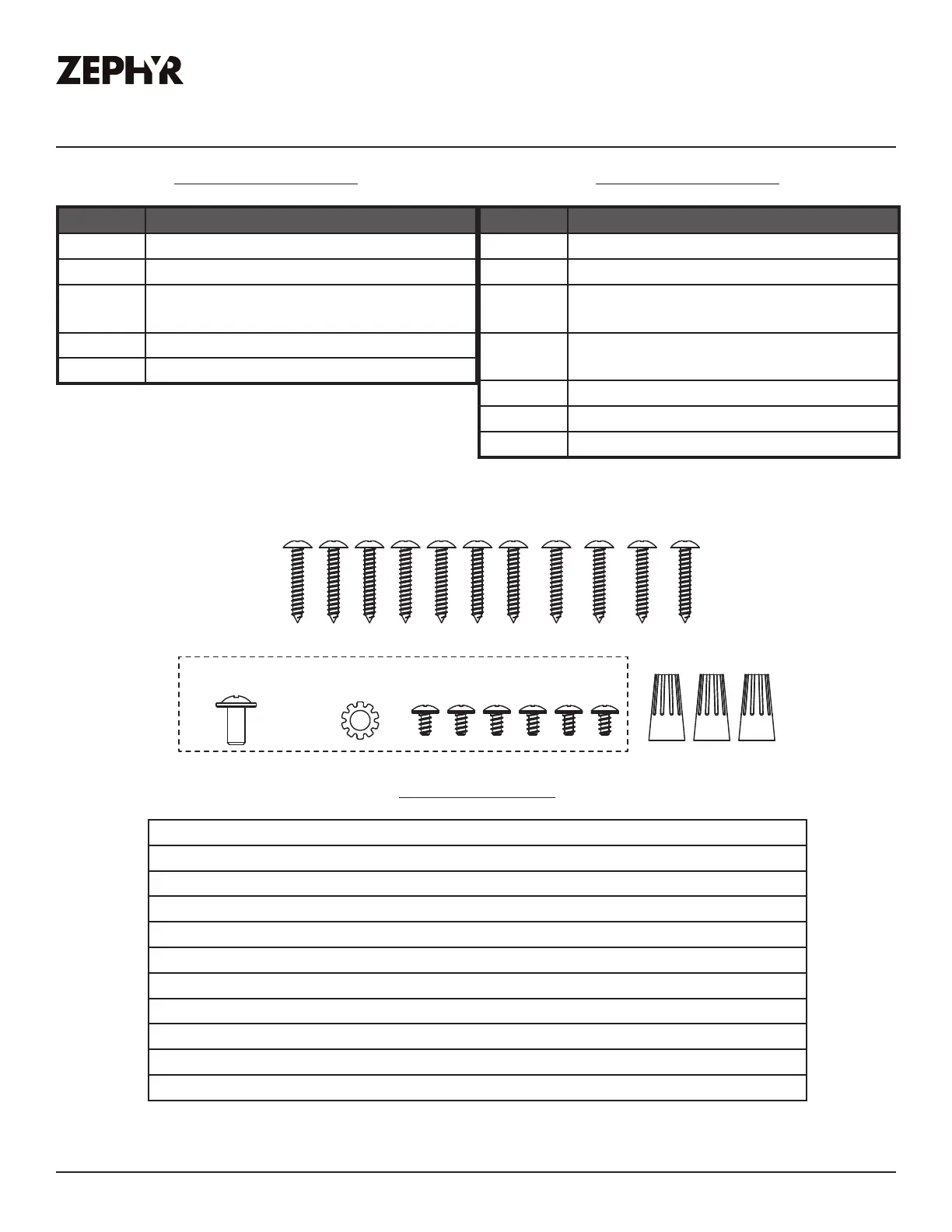

List of Materials
Wire Caps (3)
M4 x 25 Screws (11)
M4 x 8 Screws (6)
3/16 x 3/8
Screw (1)
Lock Washer (1)
AK8340ASX ONLY
Parts Not Supplied
Ducting, conduit and all installation tools
Cable locking connector (if required by local codes)
Dual internal blower (PBD-1000A) - AK82 only
Single internal blower (CBI-290C, CBI-390A, CBI-600A) - AK83 only
Dual internal blower (PBI-1100B) - AK83 only
External blower (CBE-1000) - AK83 only
In-line blower (PBN-1000A) - AK83 only
48” stainless steel hood liner, 17” x 20” depth (AK083480AS) - AK83 only
48” stainless steel hood liner, 20” x 23” depth (AK083481AS) - AK83 only
36” stainless steel hood liner, 17” x 20” depth (AK082360AS) - AK8227AS only
Optional RF remote control (14000005)
Parts Supplied (AK82)
Quantity Part
1 Insert hood
2 Pro bae filters
2 LumiLight LED with TruHue, 6W (pre-
installed)
1 Single internal blower (pre-installed)
1 Hardware package
Parts Supplied (AK83)
Quantity Part
1 Insert hood
3 Pro bae filters
2 LumiLight LED with Truhue, 6W (pre-
installed)
1 Single blower mounting plate (pre-
installed)
1 Remote blower wiring harness
1 10” round adapter w/ damper
1 Hardware package
