6 | 57 EN

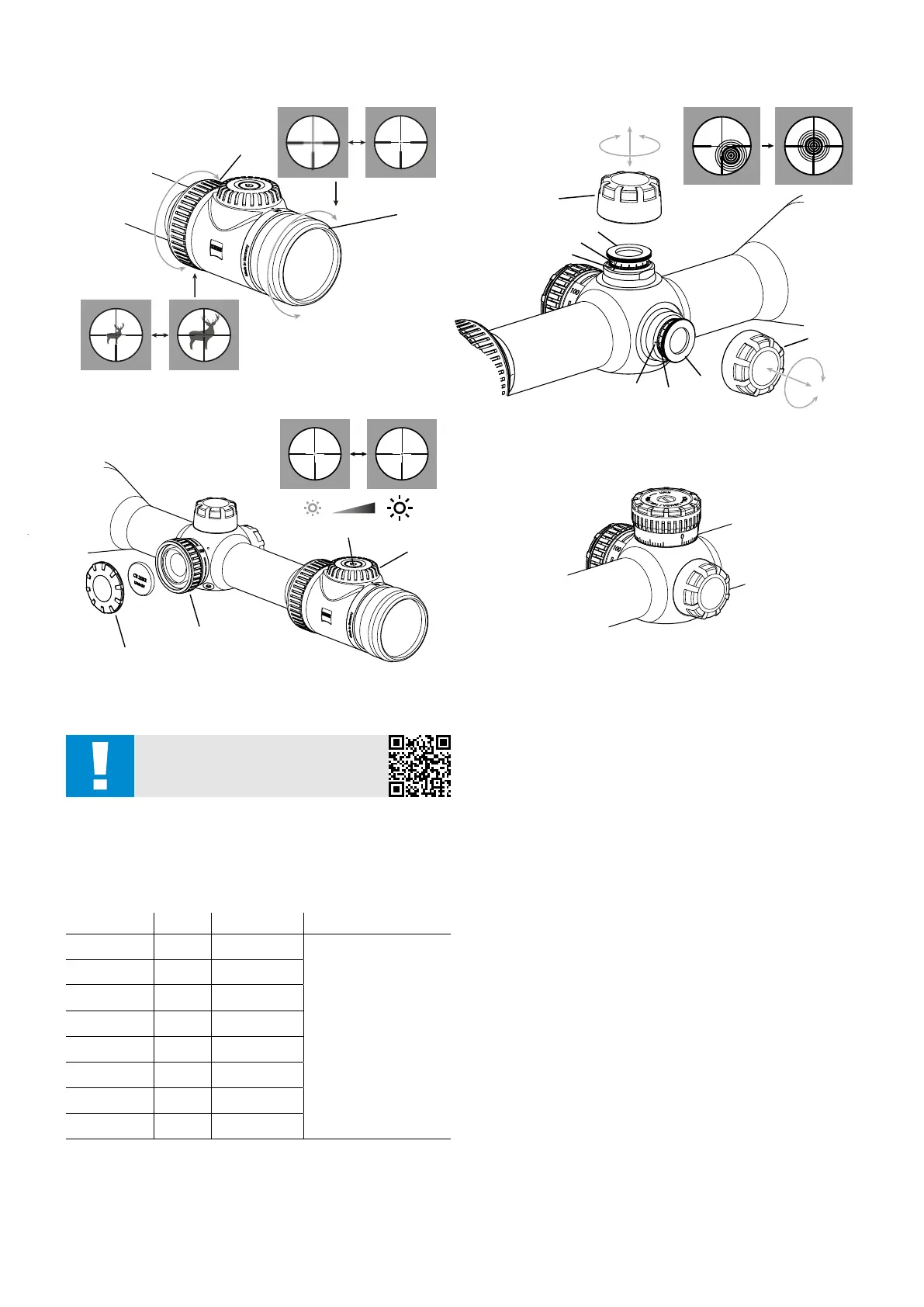

Description of the components
(1) Magnication changer
(2) Diopter compensation for display
(3) Battery cover
(4) On and O switch (reticle illumination)
(5) Brightness rotary control (reticle illumination)
(6) Adjustment knob for parallax compensation (not available on the
V8 1.1–8 models)
(7) Protective lens cap for reticle adjustment (elevation)
(8) Protective lens cap for reticle adjustment (windage)
(9) Adjustment knob for reticle adjustment (elevation)
(10) Adjustment knob for reticle adjustment (windage)
(11) Zero mark of the graduated ring
(12) Index point
(13) Bullet drop compensator (BDC/ASV)
Focusing the reticle
Focusing the reticle is done by means of the diopter compensation by turning the
eyepiece (2).
The ZEISS V8 1.8-14x50 and ZEISS V8 2.8-20x56 riescopes are equipped
with a parallax compensation mechanism that has a click-stop at 100m. The
ZEISS V8 4.8-35x60 also has parallax compensation; however, the click-stop is at
300m.
Adjusting the diopter compensation and the parallax mechanism
• Set the riescope to the largest available magnication by rotating the
magnication changer (1) on the eyepiece support.
• Focus on a target 100m or 300m away, depending on the model. Rotate the
adjustment knob for the parallax compensation (6) to the 100m or 300m
click-stop. Focus the reticle by rotating the adjustment knob for the diopter
compensation (2). Both the target and the reticle should now be in focus. The
diopter compensation only needs to be carried out once.
• By turning the parallax compensation (6), the optimum sharpness for any target
distance can now be set and aiming errors due to parallax can be avoided.
(2)
(1)
(7)
(10)
(8)
(11)
(12)
(12)
(11)
(9)
Instructions for use
ZEISS products are famous for outstanding optical performance, precision
engineering and a long service life.
Please observe the following instructions for use to obtain the best results from your
riescope and to ensure it remains as your preferred gear for many years to come.
Scope of supply
ZEISS V8 riescopes with reticle illumination.
Product
Order
no.
Lens thread
Scope of supply
V8 1.1-8x24 M 522100 M 28x0.5
Riescope
Protective lens cap
Li-batt. 3V CR 2032
Optics cleaning cloth
Quick Guide
Safety Instructions and
Regulatory Information
V8 1.1-8x24 5522101 M 28x0.5
V8 1.8-14x50 M 522110 M 54x0.75
V8 1.8-14x50 522111 M 54x0.75
V8 2.8-20x56 M 522130 M 60x0.75
V8 2.8-20x56 522131 M 60x0.75
V8 4.8-35x60 M 522140 M 62x0.75
V8 4.8-35x60 522141 M 62x0.75
WARNING!
Please note the enclosed safety instructions and regulatory
information, they can also be found under:
www.zeiss.com/cop/safety
(5)
(4)
(6)
(3)
(13)
