Bullet drop compensation feature (BDC/ASV)
for ZEISS CONQUEST V6 riflescope
If your ZEISS CONQUEST V6 riflescope is fitted with a bullet drop compensation
feature, you have the option of staying on the spot quickly and easily at a range of
distances. The bullet drop is compensated in line with the distance by adjusting the
sight line of the riflescope without removing the protective cap from the bullet drop
compensation feature.
The rotary knob (13) has a linear graduation of 1 to 75. The distance between
each graduation is equivalent to 1 click, with 1 cm equivalent to 100 m. Each tenth
graduation is labelled with a number between 10 and 70.
A ratchet prevents unintended adjustment.
If the ballistic values for an accurate aiming at 100 m are known, the number of
required clicks can be directly calculated and noted for the various distances.
Table 1 provides nine different ballistic curves for this.
Note: A limit stop in the bullet drop compensation feature prevents adjustment
below the “0” mark.

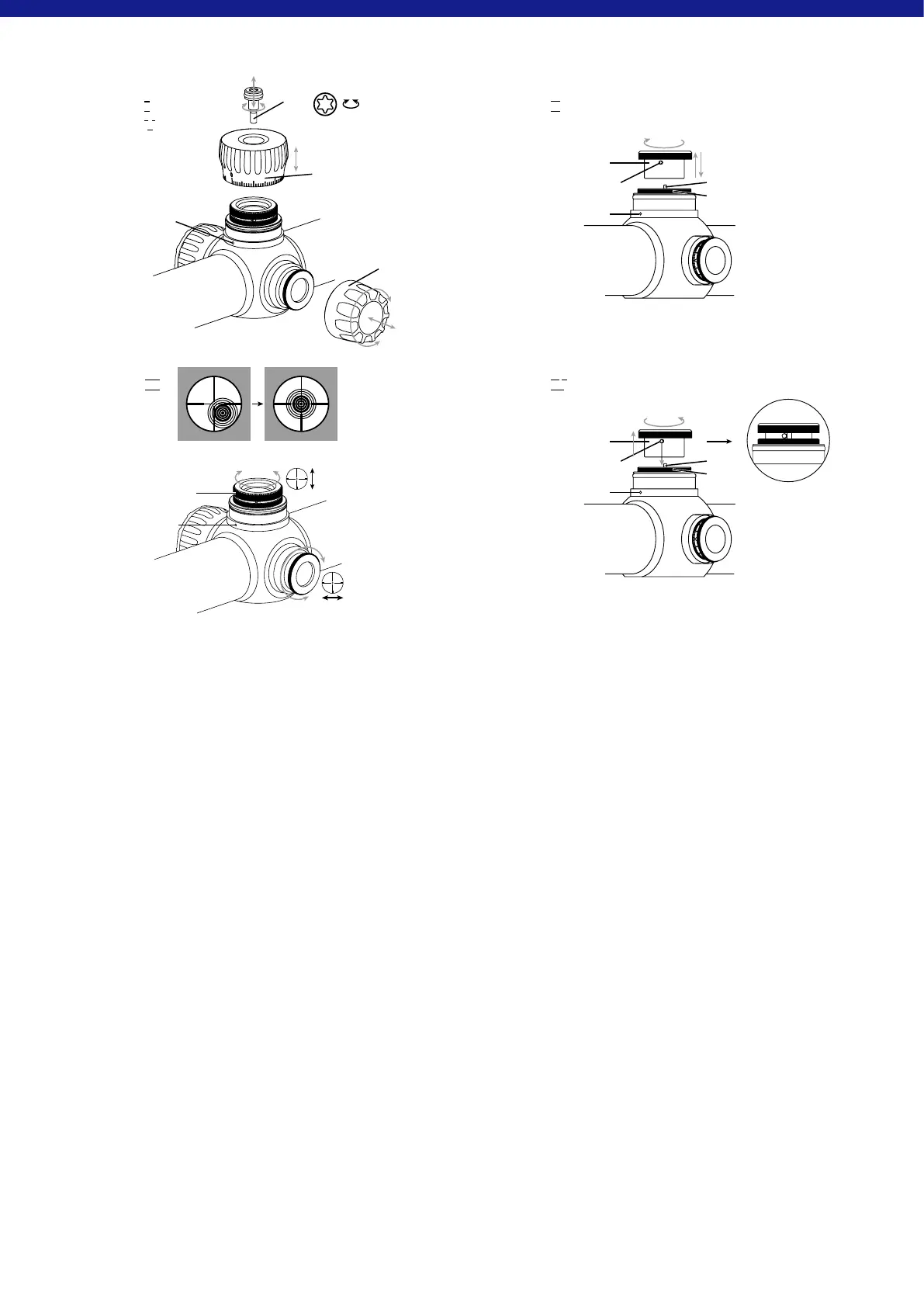

Firing the weapon with the bullet drop compensation feature (BDC/ASV):
The following procedure should be followed to adjust a shot:
ASV I Remove screw (12) and adjusting button (13).
ASV II Pull driver (16) from the catch and turn (180°) clockwise.
It is now possible to make a downwards correction directly using the driver
(16).
ASV III If the weapon shoots too low, the shot must be adjusted upwards
(direction “H”), which is equivalent to rotating the driver (16)
clockwise.
If the weapon shoots too high, the shot must be adjusted downwards,
which is equivalent to rotating the driver (16) anti-clockwise.
Once the weapon has fired at 100 m:
ASV IV Lift driver (16) out of the catch and position so that the stop pin (17) of the
driver (16) sits on the stop pin (18) of the stop ring (19), as shown in Fig.
(20).
ASV V Position the adjusting button (13) so that the “0” mark corresponds with
the index markings on the stop ring (14). Ensure that the O-ring does not
become damaged.
Use the screw (12) to retighten the adjusting button (13).
Seal integrity
The riflescope is waterproof, pressure tested to ISO 9022-80 and filled with nitrogen.
The integrity of the seal is also guaranteed if the protective lens caps (13 or 15) of
the reticle adjustment are not screwed on. However, always ensure a good seat of
these protective lens caps (13 or 15) and the sealing ring under them.
Reticle
Your riflescope is equipped with the reticle of your choice. For the ZEISS Conquest
V6 models the reticle is in the second level. The reticle is not magnified during
magnification change, but rather it always remains the same. Thus for these
riflescopes the dimension of change of the reticle is dependent on the magnification.
For an overview of the reticles and dimensions of coverage currently available, visit
www.zeiss.de/subtensions or contact us at:
Carl Zeiss
Sports Optics GmbH
ZEISS Gruppe
Gloelstraße 3 – 5
D-35576 Wetzlar
Reticle retrofitting
The ZEISS Conquest V6 riflescope can of course also be retrofitted with other
available reticles. For
reticle retrofitting, please send the riflescope to our customer service.
Care and maintenance
Your riflescope has ZEISS LotuTec coating. The effective protective coating for the
lens surfaces noticeably reduces contamination of the lenses through an especially
smooth surface and the resulting water-beading effect. All types of contamination
stick less and can be quickly and easily removed without smearing. LotuTec coating is
durable and abrasion-resistant.
Your ZEISS riflescope requires no special maintenance. Do not wipe coarse particles
(e. g. sand) from the lenses. Blow them off, or use a soft brush! Over time,
fingerprints can corrode the lens surface. Breathing on the lens and polishing with a
clean optical cleansing cloth/tissue is the easiest method of cleaning the lens surface.
To avoid a possible fungal coating which is common in the tropics, store the optics in
a dry place and always ensure good aeration of the lens surface.
(12)
ASV I
ASV V
(13)
(14)
(15)
0,6 Nm
(~ 0,44 lbf ft)
T 20
ASV II
(16)
(18)
(19)
(17)
180°
(14)
ASV III
(16)
(14)
ASV IV
(16)
(17)
(14)
(18)
(19)
(20)
4 | 5 EN
