Installing the Computer 3 - 3

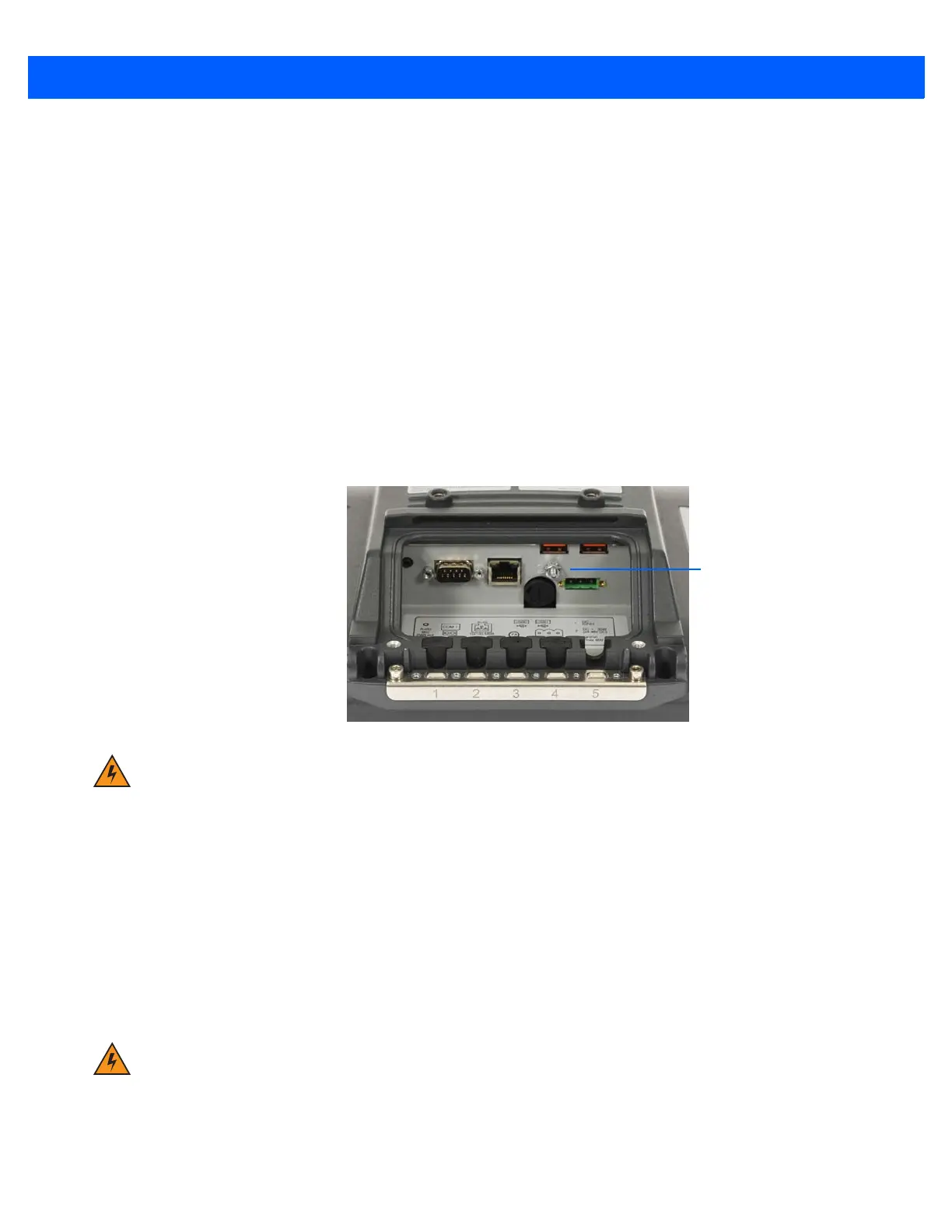

Figure 3-1
Position of the ground bolt
• The other end of the white supply voltage cable should be connected to the vehicle's chassis.
• Make sure that the 8585's connecting cable is attached as close to the battery as possible. Connecting the
8585 to large electrical loads, such as converters for the forklift motor may result in random restarts, mal-
functions and/or irreparable damage to the device.
• If you want to connect devices fed by other power sources to the 8585, such as printers and so on, be sure
to power up the peripheral devices at the same time or after the 8585. Otherwise, you may encounter
start-up problems, malfunctions or even irreparable damage to the device.
Wiring Vehicle Power to the 8585/8595
A 1.8 meter (6 ft.) extension power cable (PN 13985–301) is available which should be used to wire the
8585/8595 to the truck battery. This cable needs to be ordered separately. This cable should be wired to a
filtered, fused (maximum 10A) accessory supply on the vehicle. On negative chassis vehicles, the positive lead
Caution:
Property
Damage
WARNING! PAY CLOSE ATTENTION TO THE FOLLOWING WARNINGS!
Some forklifts have a chassis that is connected to DC+. Therefore, the 8585
chassis is also connected to DC+. However, if you use peripheral devices that
supply DC– to the 8585 via an interconnector (such as a DC– serial port), this will
cause a short circuit. This will inevitably lead to malfunctions or even a total
system failure.
Always attach the ring tongue on the white supply voltage cable to the ground
bolt situated on the connector bay.
Most electrically-driven forklift vehicles have floating chassis, connected to
neither DC+ or DC-. However, electrical faults can cause the battery + or - to be
connected to the chassis via low resistance paths. All connected peripherals
must be completely isolated.
Ground bolt
WARNING! Individual vehicle requirements and any installed supplementary electronic systems
on the vehicles must be reviewed to ensure 8585/8595 grounding is compatible -
follow vehicle manufacturers recommendations.
WARNING! Applying a voltage above the input voltage rating or reversing polarity may result in
permanent damage to the 8585/8595 and will void the product warranty.
