1
Stage Lighting
LP-LED
PRO
LP-LED4PRO

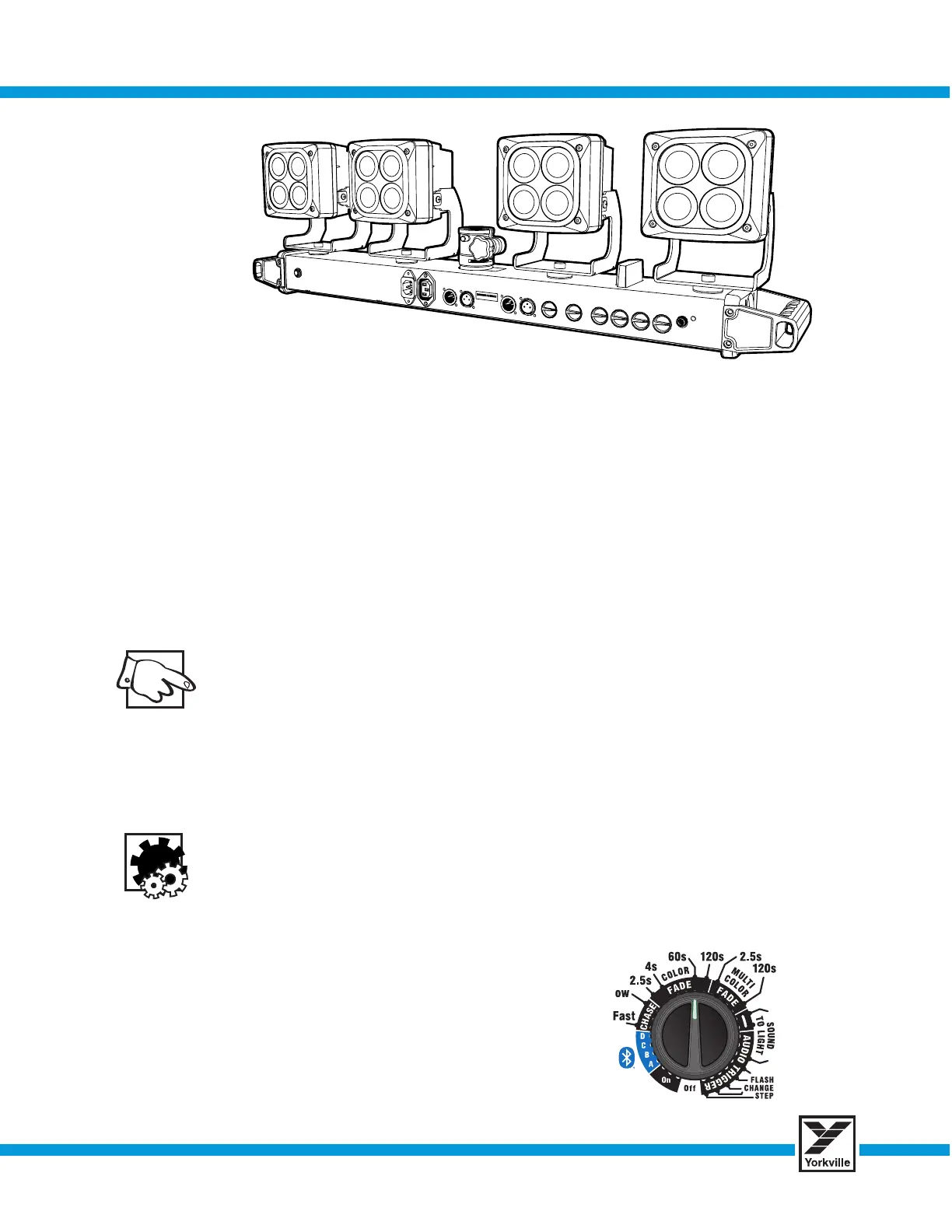

The Yorkville Sound LP-LED4PRO is a compact and powerful lighting system incorporating 4 lighting xtures,
called pods, installed in a stand-mountable bar. The bar houses the user controls, the connectors for a separate
controller, the power supply and mounting options. Each light pod uses 4 very high-power multi-die LED emitters
comprised of a red, green, blue, cyan, amber and two lime dies. This set of dies provides a much more complete
light spectrum with more accurate color rendering for people and/or objects illuminated.
At a distance of 6 feet, the light beam has a diameter of 2.5 feet. The diameter of the light at 12 feet is 4
feet. The light is mixed in the lens so that the mixed light color is visible when looking at the lens. Each pod
may be adjusted in 2 axis, left/right and up/down.
Several different ways to use the LP-LED4PRO
1. Stand alone, no separate controller is required.
2. Linked to other LP-LED/X/M/PRO Bars, one as primary.
3. With a Yorkville Lighting Controller. The Yorkville Sound LP-C12 controller allows for more functionality
than the LP-LED/X/M/PRO Bars on their own. The older Yorkville Sound LP-608 can also be used but
has limited functionality (see more detailed description below).
When a Yorkville Sound Color Controller is used, the controls on the LP-LED/X/M/PRO Bars become
inactive except for the Brightness Control.
4. With a DMX™ Controller. The DMX™ signals pass through internal integrated DMX™ processing via a
3-pin standard XLR. Five separate modes are available with DMX512 addressing standard protocol. Only
the Brightness control is active on all control sources when using DMX and the Bluetooth® app.
5. Bluetooth Smart™ device. Using our dedicated Android and iOS apps via any Bluetooth Smart™
enabled device. Effects and full manual RGBACL color controls are available, along with extended
Bluetooth™ effects such as strobe.
1. Function and Stand Alone Operation
The Function Control allows you to set the basic operation of the LP-LED4PRO Bar. It allows you to power the
unit on, off, choose Bluetooth™ operation or use manually. When an LP-LED4PRO Bar is operated by itself
(stand alone) there are a number of modes which can be set by the Function control:
• OFF (2 identical positions)
• Lamp Color control (3 identical positions)
• Bluetooth™ operation 4 separate settings (A, B, C, D)
• Chase (3 speeds)
• Single Color fade (6 speeds)
• Multi Color fade (4 speeds)
• Audio effects via internal microphone or via ¼-inch jack
triggering (10) (inserting a jack bypasses the internal microphone)
Function
