Suspension rod
Unit
Return air pipe
Canvas air conduit
Transitional air conduit
Outlet pipe
Air-out window

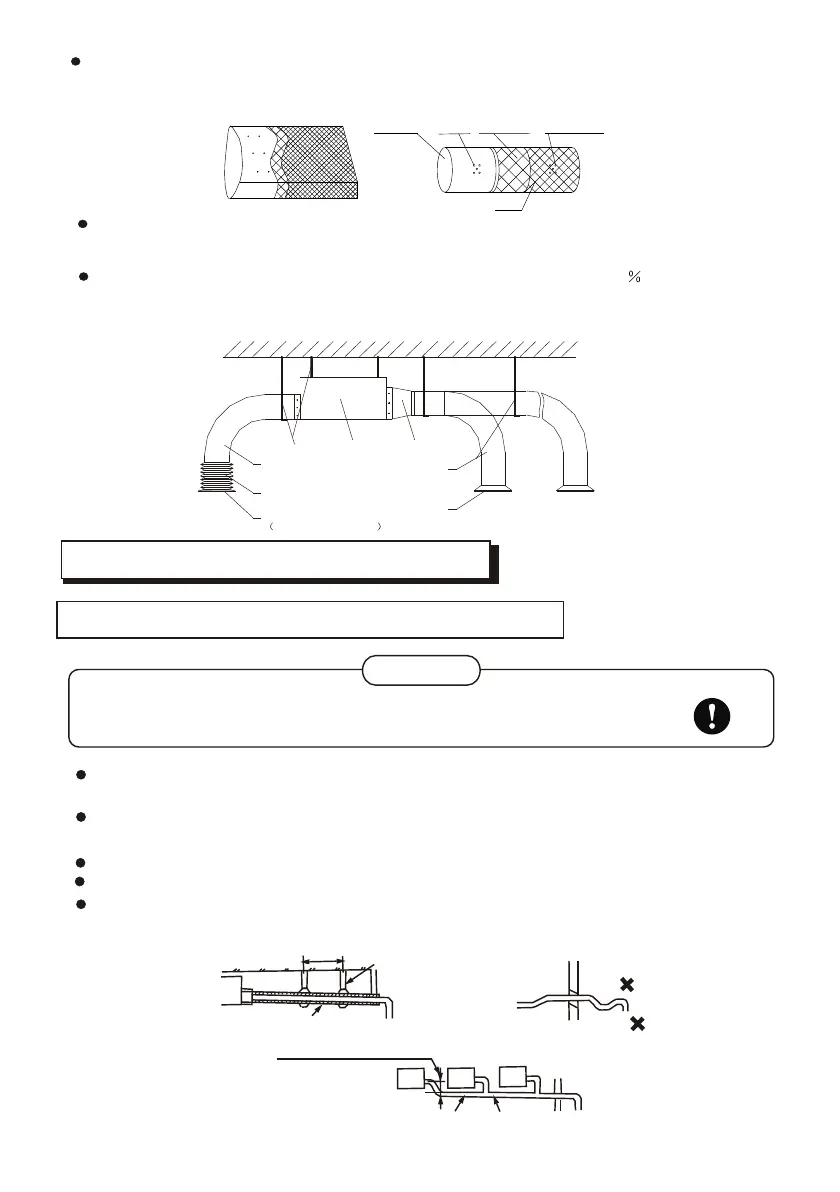

4. Tips for installation of return air pipe and outlet pipe
To minimize energy loss occurring in transmission process and condensed water during heating
operation, return air pipe and outlet pipe should be equipped with heat-insulating layer as shown in the
figure.
Return air pipe and outlet pipe should be fixed to floor precast slabs by iron stand; in addition, all
ports of the air conduit should be tightly sealed by gasket cement, and it is advisable that the edge
clearance of return air pipe should be 150mm at least.
Drain pipe for condensed water should be installed with minimum gradient of 1 , and the drain pipe
should be insulated with heat-preserving pipe casing as well.
Air conditionerAir conditioner
Plastic pinPlastic pin
Heat preserving
wool
Heat preserving
wool
Tin foilTin foil
Plastic pin capPlastic pin cap
Installation diagram for indoor unit
Return air window
including filter screen
The drain pipe of indoor unit must have the heat insulation , or it will condense dew, as well
as the connections of the indoor unit.
The declivity of the drain pipe downwards should not be over 1/100, and no winding and
bending.
The total length of the drain pipe when pulled out traversely shall not exceed 20m , when the
pipe is over long, a prop stand must be installed every 1.5 to 2m to prevent winding.
Refer to the following figures about the installation of the pipes.
Do not impose any pressure on the connection part of the drainage pipe.
Be sure to follow this Installation Manual during drainage installation,
the drainage pipe must have the heat insulation to prevent condensing.
CAUTION
DRAINAGE PIPE INSTALLATION
VP30
Support
Bend
Up and Down
Fold
As long as possible about (10mm)
Lean Downward
over 1/100
1.5m~2m
Lean Downward over 1/100
Low staiic pressure drainage pipe installation
11
