1. Power cord indicates the supply cable from indoor air switch to indoor unit or outdoor unit.
Indoor/outdoor power connecting wire indicates the supply cable connecting indoor unit and o utdo or unit .
2. Cross-section area of power cord wire is the minimum value here. In case power-connecting wire is longer than usual, just
select the conductor cross-section a level higher than the specified one to avoid voltage drop.
4. In case single-core double-layer wire is adopted, its cross section should be one level bigger than the specified one, and the wire
should be covered with dedicated electric sheath.
2
3. The cross section of ground wire for the whole set of air conditioner should be 2 mm at least.
Power cord connected to indoor unit should be cable RVV (300 500); the power cord connected to outdoor unit and the
indoor/outdoor power connecting wire should be multi-wire strand cable ( neoprene ) YZW (300 500V).
Notice: Drain pipe must not be flattened during binding treatment.
Drain pipe outlet should be led to a place that can avoid affecting the
environment.
Liquid pipe
Liquid-pipe heat preservation
Drain pipe
Heavy-current cable
Gas-pipe heat pre ser vat ion
Gas pipe
Light current cable

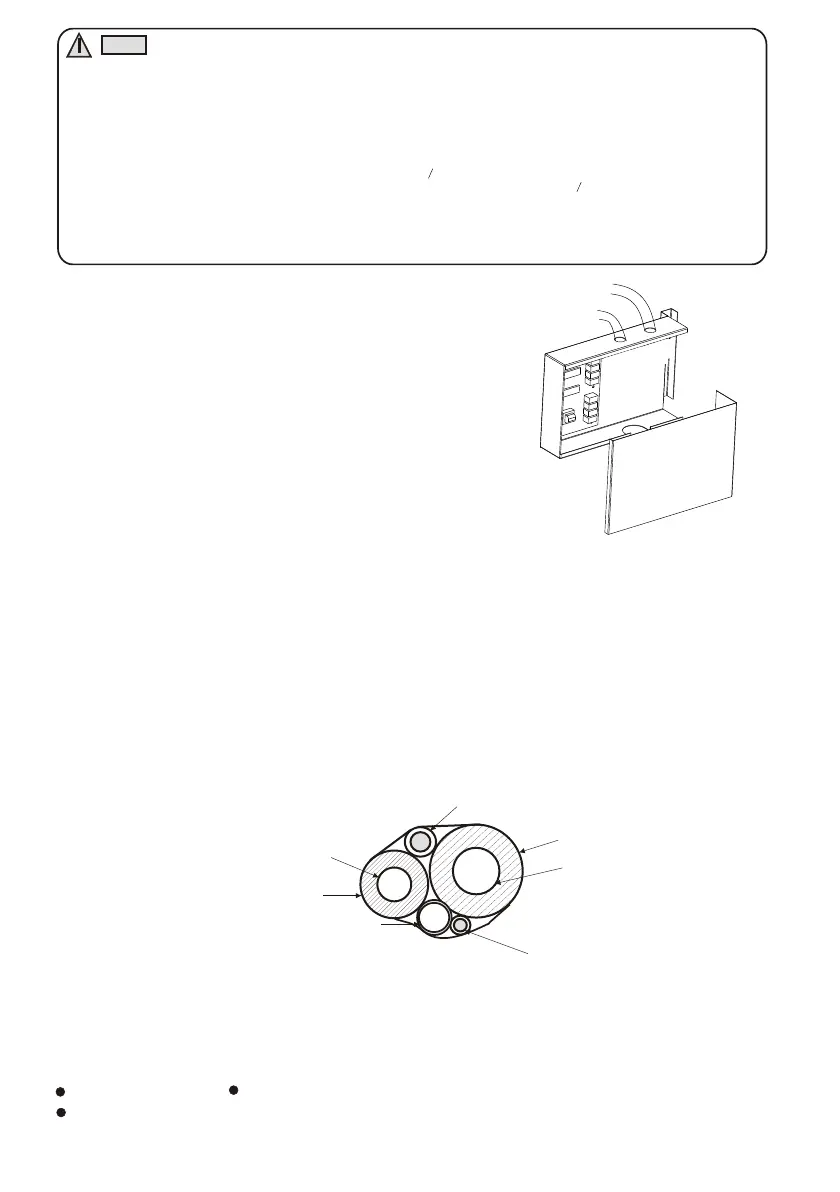

1. Wiring method for indoor unit: Open the
electric junction box to carry out wire
connection. Notice that the connecting wire
should be passed through wire-inlet rubber
ring of the box. Connect the wires according
to stipulations in the wiring diagram, and the
wire splices at connecting terminal should be
tightly compacted, free of looseness.
2. Binding treatment
Once the connecting wires have been properly connected, bind the connecting
tubing, connecting wire and drain pipe by binding tapes
After binding treatment, the cross section is shown in the figure below:
Notice
If situations as follow occur, please cut off the electric power before contacting the dealer
open or close incorrectly fuse or electric leakage protector breaks for several times.
Objects or water into the AC
22
