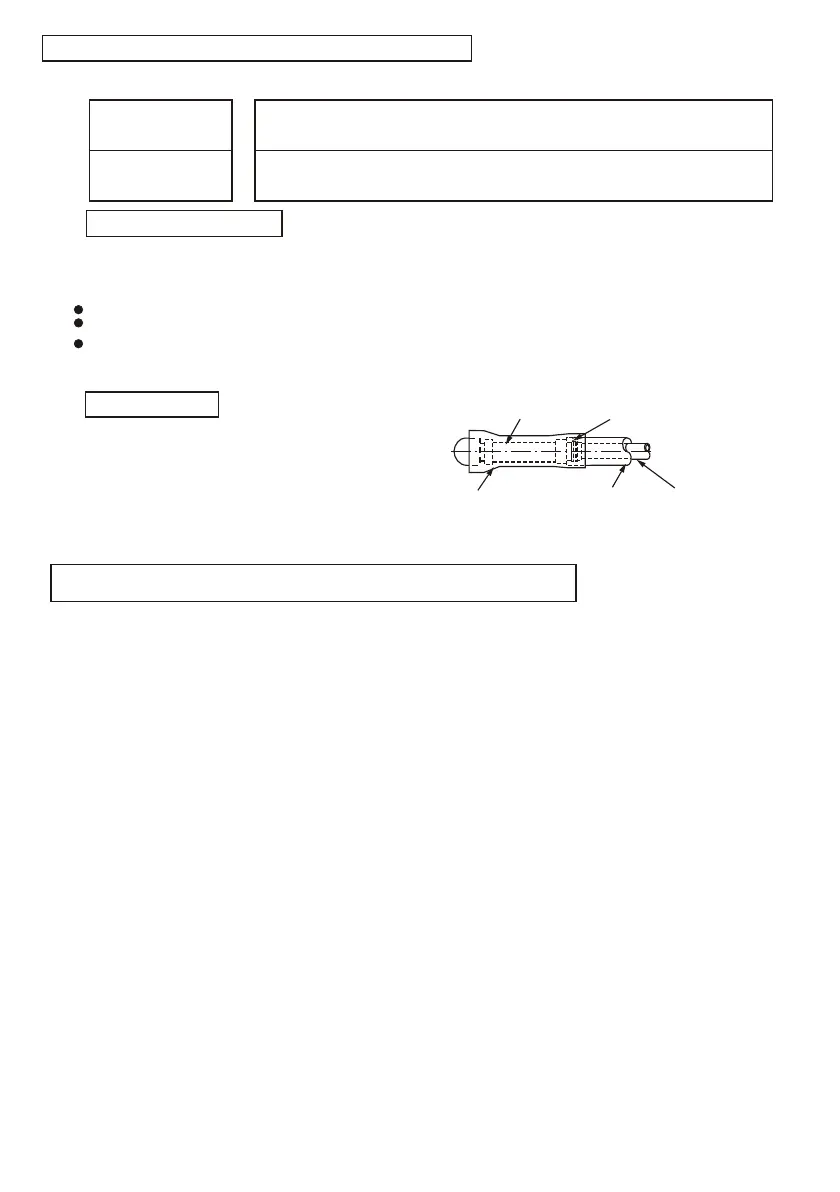

Drainage Pipe Material, Heat-insulating Material
Polyvinyl chloride pipe (f32mm outer diameter)
Foamed polyethylene insulation plate (10mm thickness)
The listed material should be used:
Drainage Pipe
Material
Heat Insulation
Material
Connection Procedure
Connect the transparent pipe with the polyvinyl chloride pipe.
Use polyvinyl chloride glue at the connection part of the drainage pipe, be sure no water
leakage.
Paste glue at the front 40mm of the polyvinyl chloride pipe, insert it into the transparent pipe.
It needs 10 minutes for the glue to dry. Do not impose pressure on the connection during the
drying period.
Heat Insulation
Wrap the flexible hose carefully with the
attached heat insulation material from
the start to theend (to indoor part)
Flexible Hose
Hose band
Attached Heat-insulation
Material
Polyvinyl Chloride Pipe
Field-arranged
Heat-insulation
Material
Warning:
Must install drainpipes according to the following figure , avoiding generating condensed water and
leakage water.
a.Assemble the main body according to Figure .
b.The opening of drainpipes can be installed on the leftside or the right side . Could remove the drain
stopper and put it on the leftside or the right side.
c.For the best effect, should keep pipes as short as possible. Tilt the pipes to ensure the flow of fluid.
d.Make sure the drainpipes have admirable heat insulation.
e.It is necessary to install a trap near the opening of the drainpipe,so that when the machine is
working, the pressure in the inside of the machine is lower than atmospheric pressure. If there
isn't a elbow , the water will splash and the pipe will produce a bad smell.
f.keep straightness of drainpipes so as to remove dirt.
g.Seal the drainpipe on the other side of the machine , then wrap up the drainpipe in the heat-barrier
materials .
h.Put water into the drain pan to test whether the water can be discharged swimmingly.
i.In humid conditions , please must use a add-on drain pan(commercially available) to cover the
whole area of the indoor unit.
Hight static pressure drainage pipe installation
12
