1. Copper-cored wire should be selected.
2. As the electric control box is inside the unit body, dismantle the valve installation cover, top cover
right front board sequenly when connecting wires. Then connect the responding wires from the hole
of the electric of the right back board.
3.Mate series number according to junction box of outdoor unit. (Disposed length of connection wire is good enough
for inserting the conenction pole completely as the right picture shows.)
4. Wrap the electric wire(conductor),which is not inserted into the connection pole, with PVC b
elt and make it
avoid any
electric appliance or metal elements.
5. After installing cable connection lug on the main power wire, then connect to the terminal row.
6. Connection lug should be installed on the grounded wire of all cables.
Only finishing that all cables can be connected to grounded bolt.
7. The electric wire from wire terminal should be through wire clips.

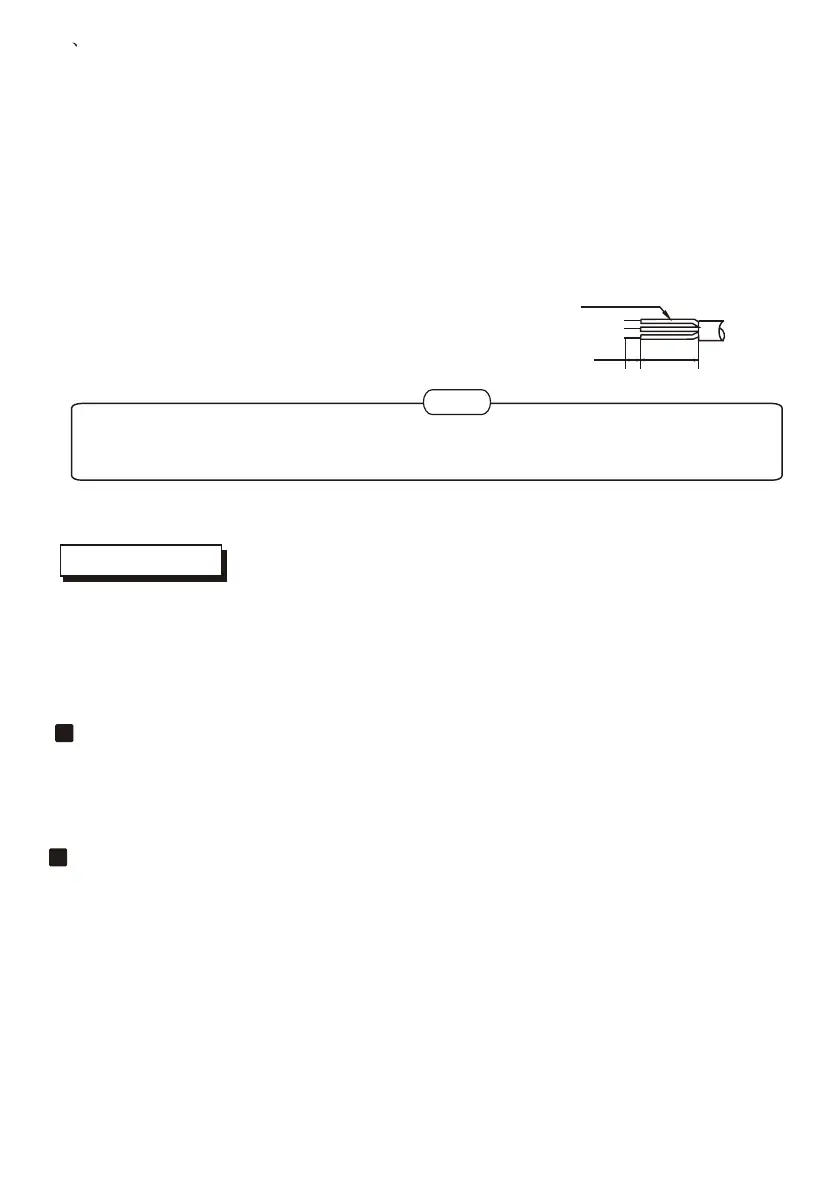

8. Please refer to the right illustration.
10mm
40mm
Connecting Electric Cord
The indoor unit should be connected correctly with the high-pressure and low-presurre stop valve of the
outdoor unit as well as the signal line.Otherwise,some electrical componets and system may suffer damages.
4
Outdoor unit wiring
NOTICE
b. If LCD screen displays normally.
a. After checking, energize your appliance and press the buttons on the control panel
to see if the buttons function
;
Fu
nction test
if the all wires and cables are correctly connected and well fixed.
b
. Check if the power supply complies with requirements
; if there is refrigerant leakage;
a.
Check if piping, drainage and external wiring have been finished correctly.
Before testing
Notes
TRY TEST
1. Please read this operating and installation instructions carefully.
2. Do not let air in or refrigerant out during installing or reinsta
lling the appliance.
3. Test run the air conditioner after finishing installation and keep the record .
4. T
ype of fuse for controller of indoor unit is 50T, rated specification is T 5 A, 250V.
Fuse for th
e whole unit is not supplied by the manufacturer, so the installer must
employ a suitable fuse or other over-
current protective device for the power supply
circuit according to the maximum power input as required.
5.The air conditioner operates safely when ambient static pressure is 0.8~1.05 standard
atmosphere pressure.
24
