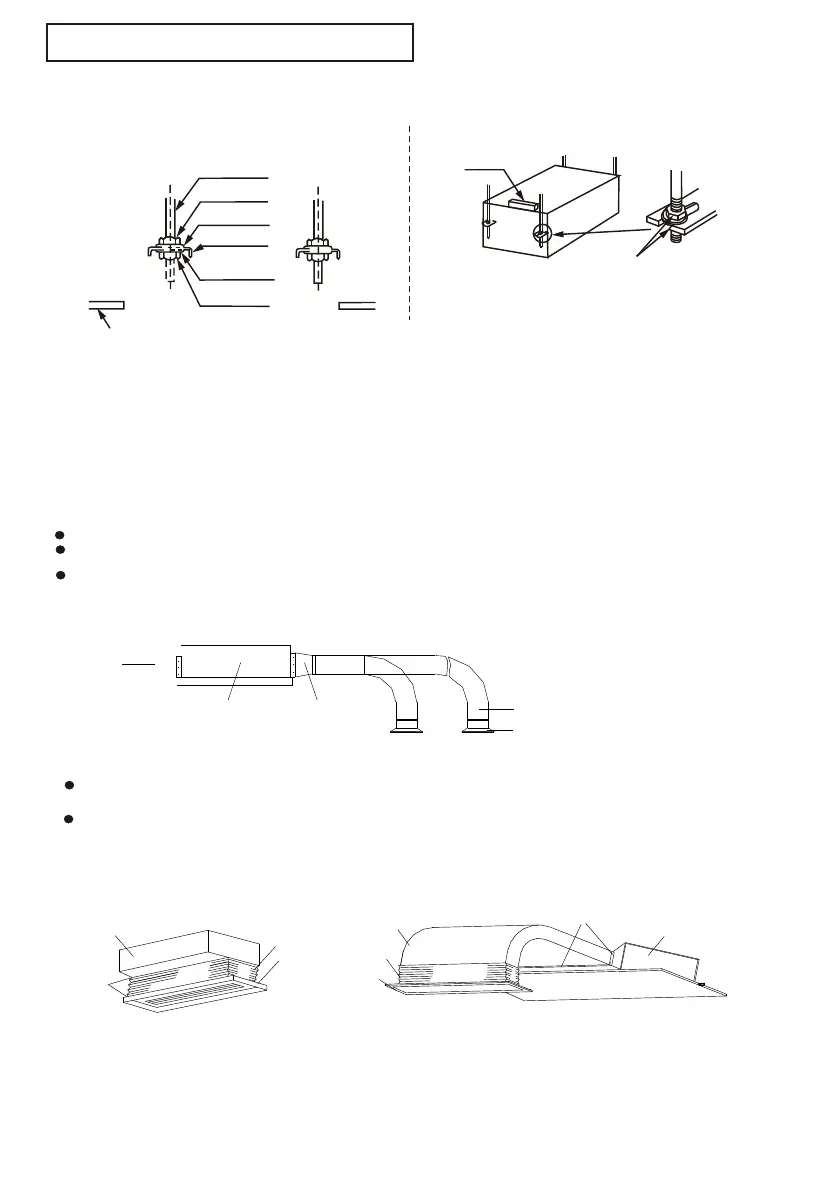

Must Be Fixed Tight
Gradienter
Adjust the nut position while the gap between gasket(downside) and ceiling should be confirmed according
to actual situations.
Hanging Bolt
Nuts(Up)
Gasket(Upside)
Installing Ear
Gasket(Downside)
Nut(Downside)
Below the ceiling
Hang the nut inside the U slot of the installation panel.To confirm level degree with gradienter .
( Leaning downside toward non-draining side is prohibited)
Hanging &Installation of Indoor Unit
2. How to mount outlet pipe
Generally, we have two types of outlet pipe available, i.e. rectangular or round ones.
Rectangular air conduit can be directly connected to air outlet of indoor unit by rivets. For outlet dimensions, see outline drawing of
the unit.
Round air conduit should be connected to a piece of transitional air conduit before it is connected to air outlet of indoor unit, the other
end of it can be separately connected to air conduit window or connected to air conduit window after air flow diversion, and the total
length should not be over 6m. As shown in figure below, air speeds at all air outlets should be set to basically consistent so as to
meet the room air-conditioning requirements.
Indoor unit
Air-outlet window
Outlet pipe
Transitional air
conduit
Air inlet
3. Installation method for return air pipe
In case sidewise air intake is adopted, return air pipe should be fabricated and rivet-connected to
return air orifice, and the other end of it should be connected to return air window.
In case of underside air intake, purchase or fabricate a section of pleated canvas air conduit serving
as transition joint for return air orifice and return air window. in this way, it can be freely adjusted
according to height of indoor ceiling board; in addition, during operation of the unit , canvas air conduit
may avoid vibration of ceiling board, as shown in figure below.
Installation mode for sidewise air intake
Unit
Canvas air conduit
Return air pipe
Installation mode for underside air intake
Return air window
Rivet
Unit
Return air pipe
Canvas air conduit
Rivet
10
