Handleiding

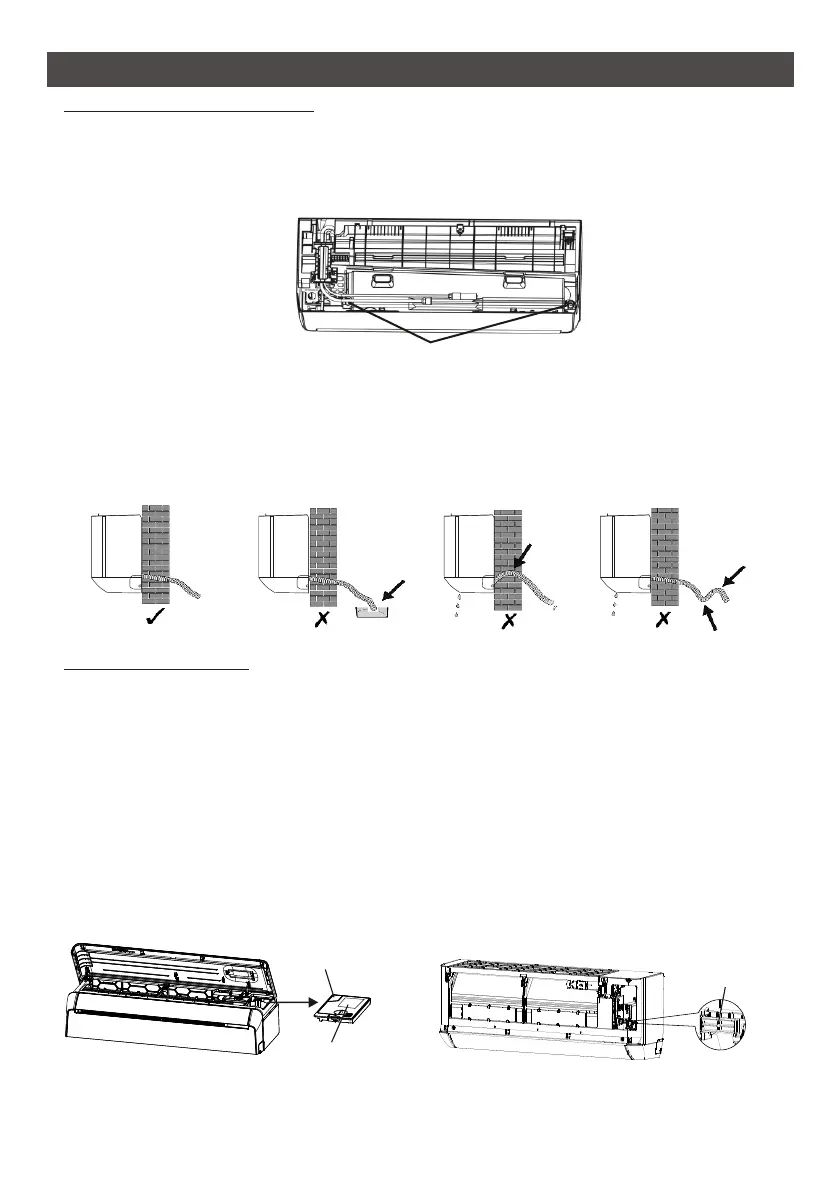

5.1 Adjust the drainage hose(if applicable)

In some model, both sides of the indoor unit are provided with drainage ports, you can choose

one of them to attache the drainage hose. And plug the unused drain port with the rubber

attached in one of the ports.

Step5: Connect Drainage Hose

5.2 Connect the drainage hose to the drainage port, ensure the joint is firm and the sealing

effect is good.

5.3 Wrap the joint firmly with teflon tape to ensure no leaks.

Note: Make sure there is no twists or dents, and the pipes should be placed obliquely

downward to avoid blockage, to ensure proper drainage.

Step6: Connect Wiring

6.1 Choose the right cables size determined by the maximum operating current on the nameplate.

(Check the cables size refer to section INSTALLATION PRECAUTIONS)

6.2 Open the front panel of indoor unit.

6.3 Use a screwdriver, open the electric control box cover, to reveal the terminal block.

6.4 Unscrew the cable clamp.

6.5 Insert one end of the cable into the position of control box from the back of the right end of the

indoor unit.

6.6 Connect the wires to corresponding terminal according to the wiring diagram on t

he electric

control box cover. And make sure that they are well connected.

6.7 Screw the cable clamp to fasten the cables.

6.8 Reinstall the electric control box cover and front panel.

25

INDOOR UNIT INSTALLATION

Drainage ports

Cable clamp

Control box cover

Wiring diagram
