Controls and Functions
Rio3224-D3 Rio1608-D3 Reference Manual
12
NOTE
• We recommend using RJ-45 plugs that are compatible with Neutrik etherCON CAT5e
connectors. Standard RJ-45 plugs can also be used.
• Connect only Dante-compatible devices or Giga-bit Ethernet (GbE)-compatible devices
(including a computer).
• If using a Dante network, do not use the EEE function of the network switch. The EEE function
may deteriorate the clock synchronization performance and interrupt audio.
For details, see the NOTE in the “About Dante
” section on page 6.
L [LINK/ACT]
These indicators show the communication status of the Dante [PRIMARY] and Dante
[SECONDARY] connectors respectively.
They flash fast if the Ethernet cables are connected properly.
M [1G]
These indicators light when the Dante network is functioning as Giga-bit Ethernet.
N Network connector
This RJ-45 connector allows the unit to be connected to a computer via an Ethernet
cable (CAT5 or higher recommended).
NOTICE
Use an STP (Shielded Twisted Pair) cable to prevent electromagnetic interference.
O AC IN connectors [A]/[B]
Use these sockets to connect the supplied power cords. First connect each AC power
cord to this unit, and then insert the power cord plug into an AC outlet.
CAUTION
Be sure to turn off the power to the unit before connecting or disconnecting each power cord.
NOTE
You can ensure power redundancy by connecting power cords to both the AC IN connectors [A]
and [B].
Insert each cord plug all the way until it locks in place securely.

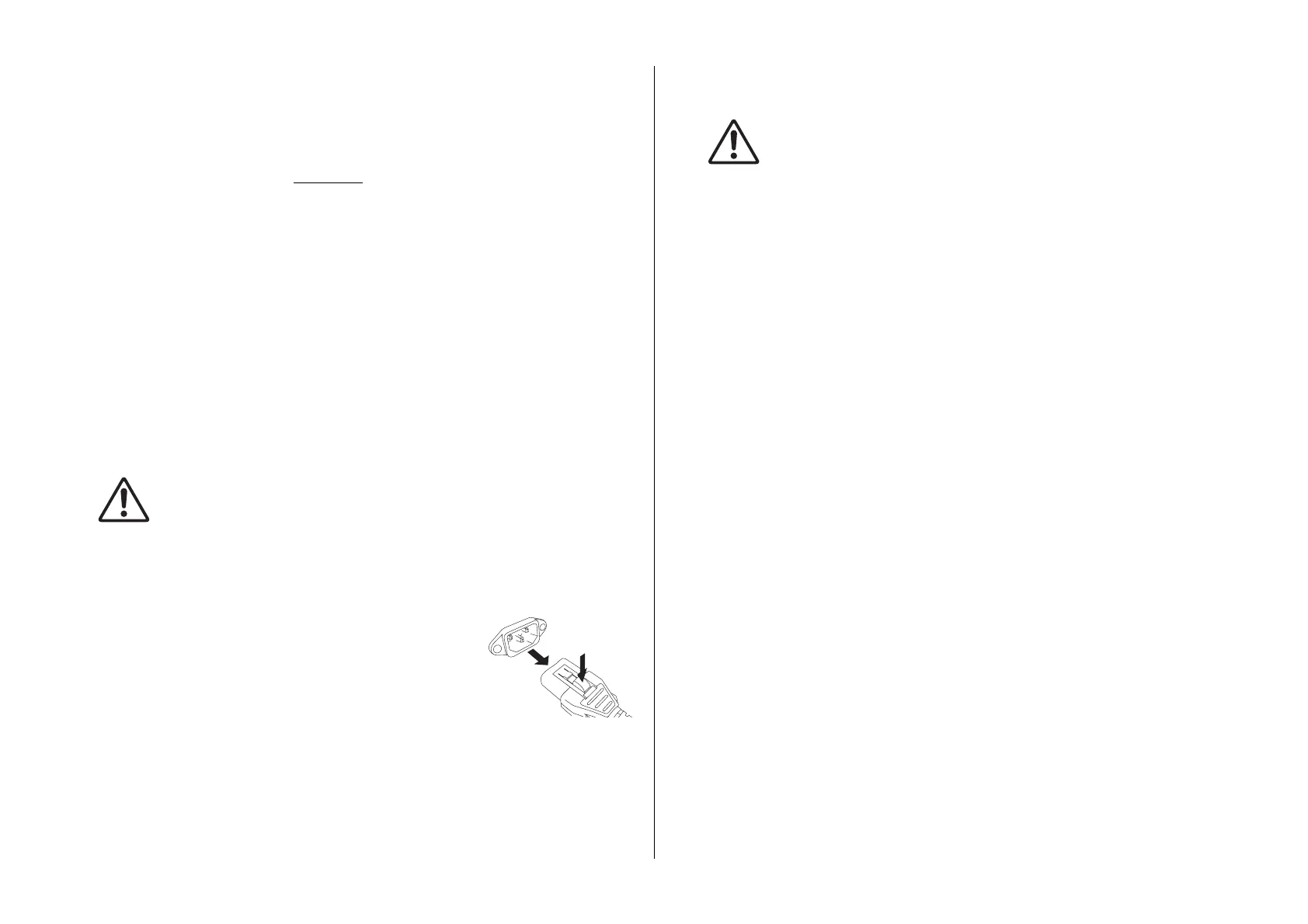

The supplied AC power cords feature a V-lock mechanism via
a latch, which prevents the power cords from disconnecting
accidentally.
To disconnect each power cord, remove it while pressing the
latch on the plug.
P Cooling vent
This product is equipped with a cooling fan. This vent lets warm air escape from the unit.
Do not block the vent with any object.
CAUTION
Do not block the ventilation ports on this product. This product has ventilation ports at
the front and rear to prevent the internal temperature from becoming too high. If the
ventilation ports are blocked, heat will get trapped inside the product, which may cause
malfunction or fire.
