Controls and Functions
Rio3224-D3 Rio1608-D3 Reference Manual
11
G Power switch [ l ]/[ ]
Toggles between power on ( I ) and off ( ).
NOTICE
Turning the unit on and off in rapid succession can cause it to malfunction. After turning
the unit off, wait at least six seconds before turning it on again.
H Power indicator [A]/[B]
Lights when the power to the unit is ON.
I [AES/EBU OUT] 1/2–7/8 (Rio3224-D3 only)
These balanced XLR 3-pin chassis output connectors deliver AES/EBU format digital
audio signals from the unit’s corresponding output channels. Each connector outputs 2-
channel digital audio.
J [OUTPUT +4dBu] 1–16 {1–8}
These are balanced XLR 3-pin chassis output connectors that enable you to output
analog signals from each channel. The rated output level is +4 dBu.

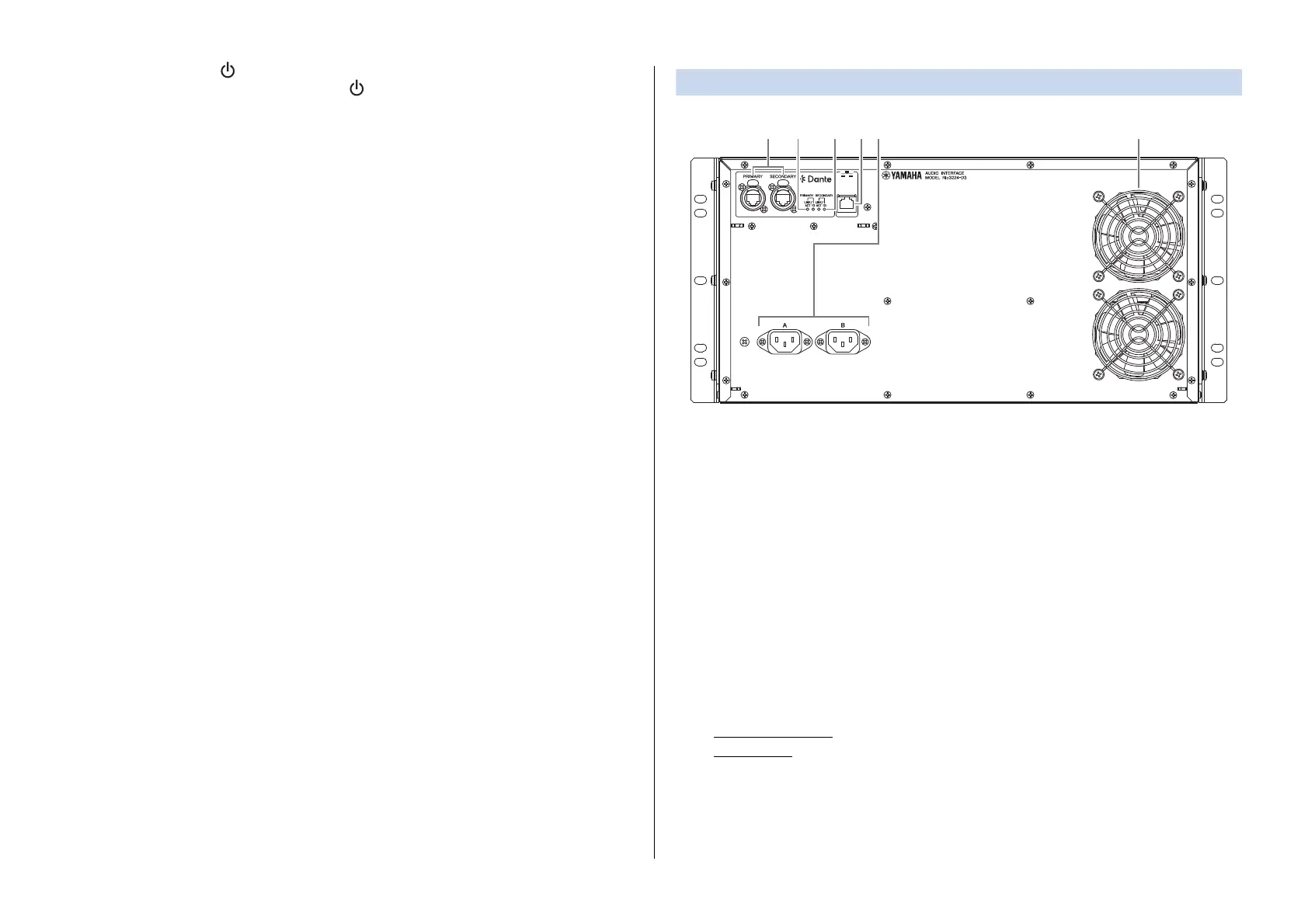

Rear Panel
K Dante [PRIMARY]/[SECONDARY]
These etherCON (RJ-45) connectors can be connected to other Dante devices such as a
RIVAGE PM, DM7, CL, or QL series unit using Ethernet cables (CAT5e or better
recommended).
If SECONDARY port* is set to DAISY CHAIN, the signal that is input from one connector
is transmitted to the other connector.
If SECONDARY port* is set to REDUNDANT, the Dante [PRIMARY] connector is used for
the primary connection and the Dante [SECONDARY] connector is used for the
secondary (backup) connection. If the unit is unable to transmit signals through the
Dante [PRIMARY] connector for some reason (e.g., due to damage or accidental removal
of the cable, or a failed network switch), the Dante [SECONDARY] connector will
automatically take over the connection.
(* To display the SECONDARY port setting screen, first, select SETUP on the MENU TOP
screen, and then confirm your selection. Next, select SEC.PORT (SECONDARY PORT)
from the SETUP menu, and then confirm your selection.)
Related link(s)
“About Connections
”
“SETUP menu
”
NOTICE
Use an STP (Shielded Twisted Pair) cable to prevent electromagnetic interference. Make sure
that the metal parts of the plugs are electrically connected to the STP cable shield by conductive
tape or comparable means.
LK PM N O
