22
FT-847 OPERATING MANUAL
(15) S.SRCH Switch
Pressing this switch momentarily recalls the “SMART
SEARCH™” memories. Pressing and holding in this
switch for ½ second initiates SMART SEARCH™ scan-
ning. With SMART SEARCH™ engaged, the transceiver
quickly searches above and below the Main VFO fre-
quency, storing those frequencies on which activity is
detected (without stopping on them even momentarily).
(16) NAR Switch
This switch is used to activate the “Narrow” filter mode
in the CW (optional YF-115C required), AM, and FM
modes, for improved interference rejection. On FM, it
also selects the low-deviation mode required for HF
FM operation on 29 MHz. Press this switch to select
the Narrow mode; the “
NAR
” icon will appear on the
display panel.
(17) MODE Switches
Pressing one of these switches selects the operating
mode. Per the chart below, repeated presses of a par-
ticular switch will cause the precise mode to be se-
lected from within a mode group (for example, repeat-
edly pressing [SSB] toggles the mode between USB
and LSB).
MODE Switch Available Modes
SSB LSB
ó
USB
CW CW(USB)
ó
CW(LSB)
FM/AM FM
ó
AM
(18) VOICE Switch
Pressing this switch activates the optional FVS-1A,
which provides announcement of the operating fre-
quency (with resolution to the displayed 100 Hz digit)
for operators with vision impairments.

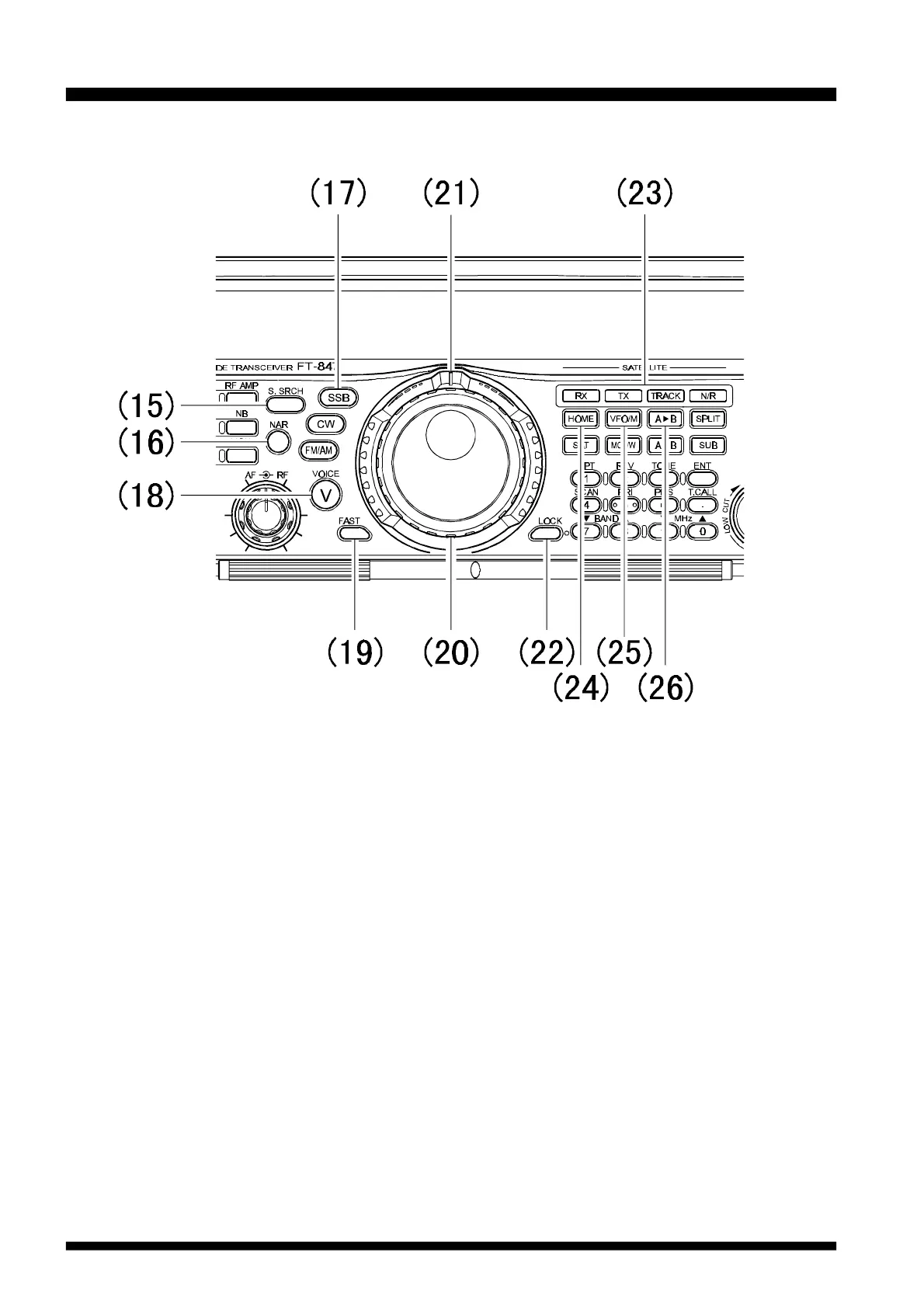

Front Panel Controls & Switches
