Appendix
Appendix

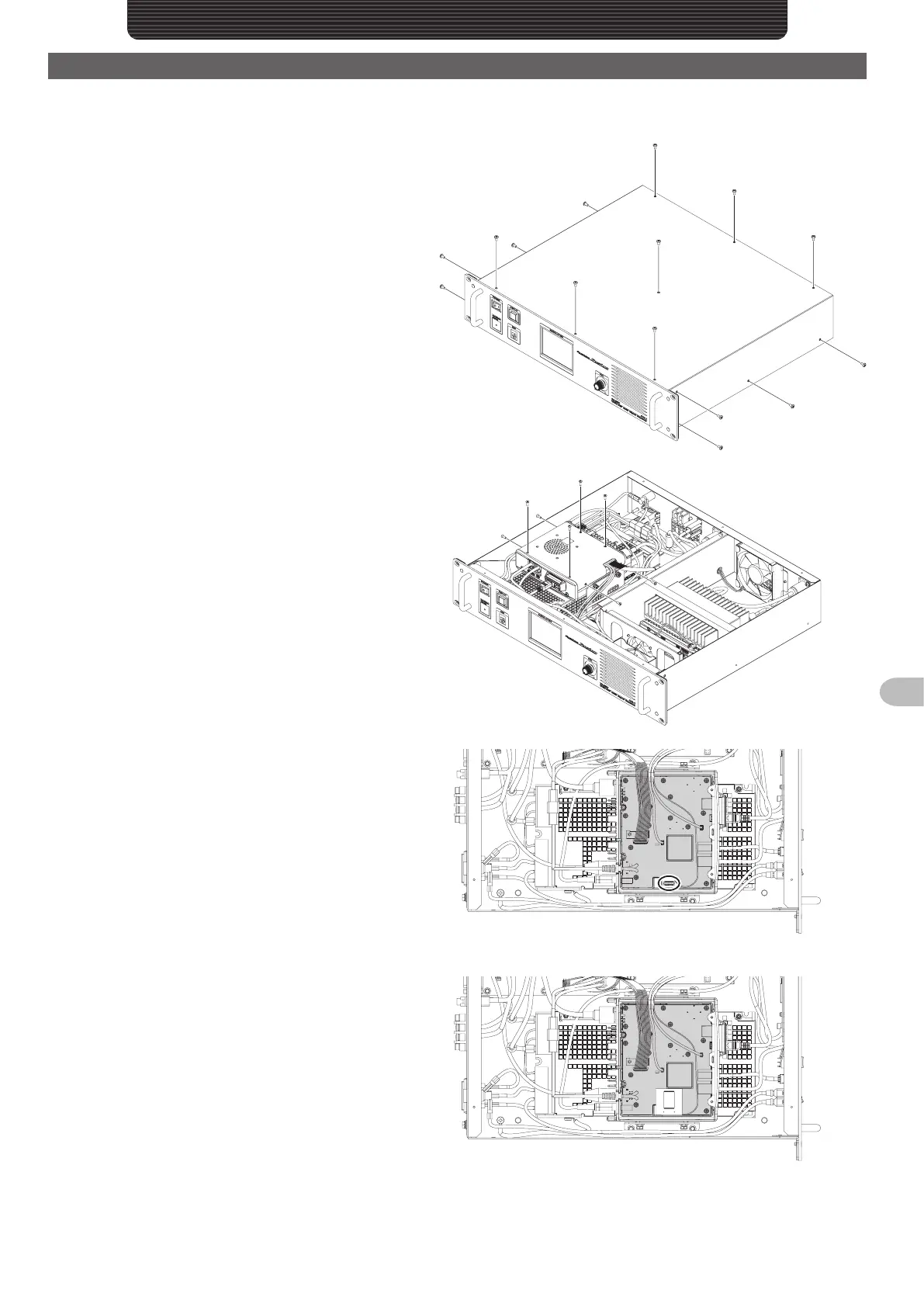

Installation of the Optional Voice guide unit "FVS-2"
1. Turn the DR-1’s [POWER] switch “OFF”.
2. Disconnect all the cables from the DR-1.
3. Referring to Figure 1, remove the 4 screws from each
side and 7 screws from the top cover of the DR-1, then
remove the top cover.
Figure 1
4. Referring to Figure 2, remove the 2 screws from each
side and 4 screws from the top cover of the RX-Unit,
then remove the top cover.
Figure 2
5. Refer to Figure 3 for the mounting location for the FVS-
2.
Figure 3
6. Push the FVS-2 (component side up) onto the pins
corresponding to its assigned mounting location on
the DR-1. Gently press the board down until it is firmly
seated on the connectors.
Figure 4
7. Replace the top cover of the RX-Unit and its 8 screws.
8. Replace the top cover of the DR-1 and 15 screws.
9. Connect the all cables to the DR-1.
