Installation and Connection
Setting up the Repeater

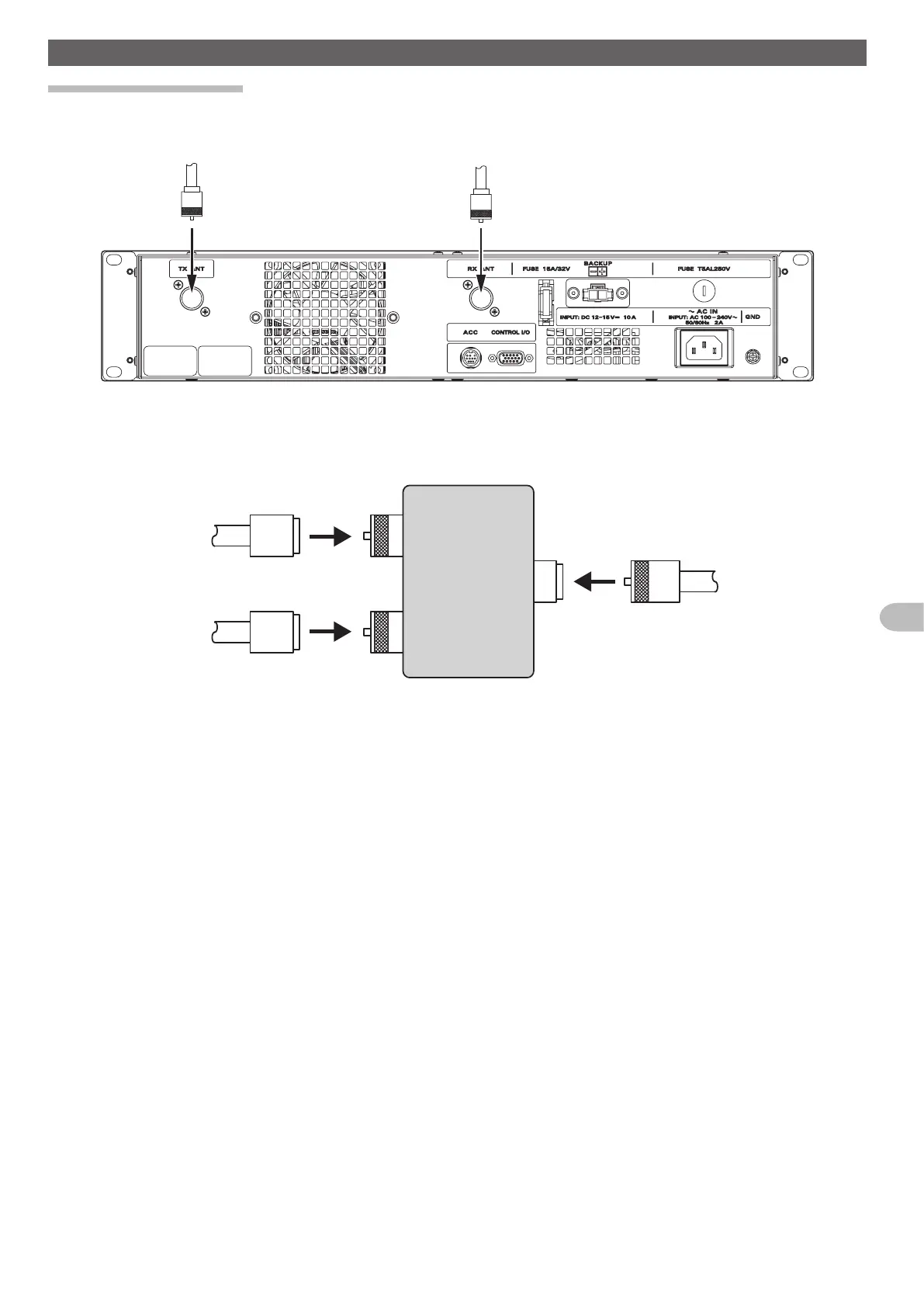

Connecting the antenna
1
Plug the coaxial connectors into the TX ANT and RX ANT jacks respectively at the rear of the repeater, and tighten the shields onto
the jacks.
2 To use a duplexer prepared by yourself, plug in the terminal of the coaxial cables from the TX ANT and RX ANT terminals into the
jacks of the duplexer, and turn to tighten
3 Plug in the terminal of the coaxial cable connected to the antenna into the jack of the duplexer, and turn to tighten
From RX ANT
Duplexer
To antenna
From TX ANT
