MORE PORT CABLES
What is MORE PORT? The MORE PORT (on the back of each Hub or 2X unit) carries up
to 40 channels of Audio, Power, and TalkBack.
• You can use standard XLR Audio cables to connect units via the MORE PORT. If
you’re using Audio XLR cables, the max cable length is 25 feet.
• You can also use DMX cables (XLR cables designed for Data instead of Audio,
recommended for longer cable runs).
o Please note that DMX cables are better to use, especially if you’re using
cables longer than 25 feet.

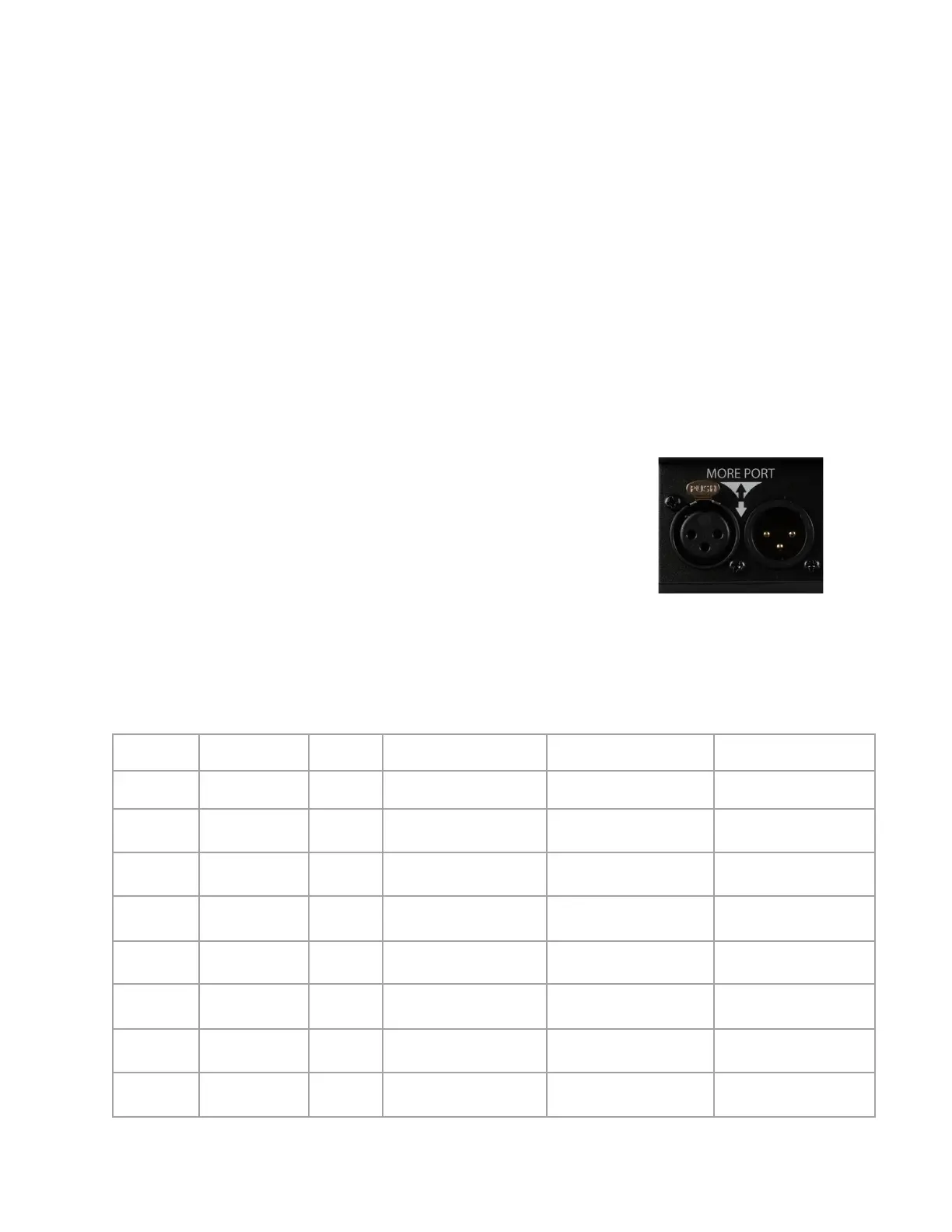

IMPORTANT: MORE PORT and Gender
• Normally XLR output jacks for standard audio cables are male, but MORE PORT
uses the opposite (female). This is not a mistake. This is because the cables carry
voltage, and if the gender was not opposite, you would have XLR pins that could
potentially shock the user if pins are exposed on cable ends.
• The jacks are labeled on the back.
Cable Lengths:
The system can handle a maximum of 275' of cable between ALL units.
Max cable length is 100' between 2 units.
• Max individual cable length is 100’ between units. We suggest that you run the
longest cable between the HUB and rst 2X unit.
Example cable lengths between units:
MAX/EXTREME - Example
Suggested/Example
Typical - Suggested/Example
Hub (unit #1)
CONNECTED TO
2X (unit #2)
100' cable (DMX)
50’ (DMX)
50’ (DMX)
2X (unit #2)
CONNECTED TO
2X (unit #3)
50' cable (DMX)
50’ (DMX)
25' cable (XLR)
2X (unit #3)
CONNECTED TO
2X (unit #4)
25' cable (XLR)
50’ DMX)
25' cable (XLR)
2X (unit #4)
CONNECTED TO
2X (unit #5)
25' cable (XLR)
25' cable (XLR)
25' cable (XLR)
2X (unit #5)
CONNECTED TO
2X (unit #6)
25' cable (XLR)
25' cable (XLR)
25' cable (XLR)
2X (unit #6)
CONNECTED TO
2X (unit #7)
25' cable (XLR)
25' cable (XLR)
25' cable (XLR)
2X (unit #7)
CONNECTED TO
2X (unit #8)
25' cable (XLR)
25' cable (XLR)
25' cable (XLR)
275'
TOTAL CABLE LENGTH
250'
TOTAL CABLE LENGTH
200'
TOTAL CABLE LENGTH
IN
OUT
