8. Remove the clamps and re-install the rubber gasket by pressing it into the slot making sure
it is evenly seated.
9. Place the door back in position and slide to up onto the upper hinge pin, then square it up
with the cabinet.
10. Replace the lower hinge using the three screws removed in Step 2.
11. Replace the toe kick using the two screws removed in Step 1.
ADJUSTMENT SCREWS
TOP BOTTOM
If the door requires adjustment,
the top and bottom hinge each
have adjustment screws.
Loosen the screws,
then with the door open,
raise the handle side to level
and re-tighten the screws.

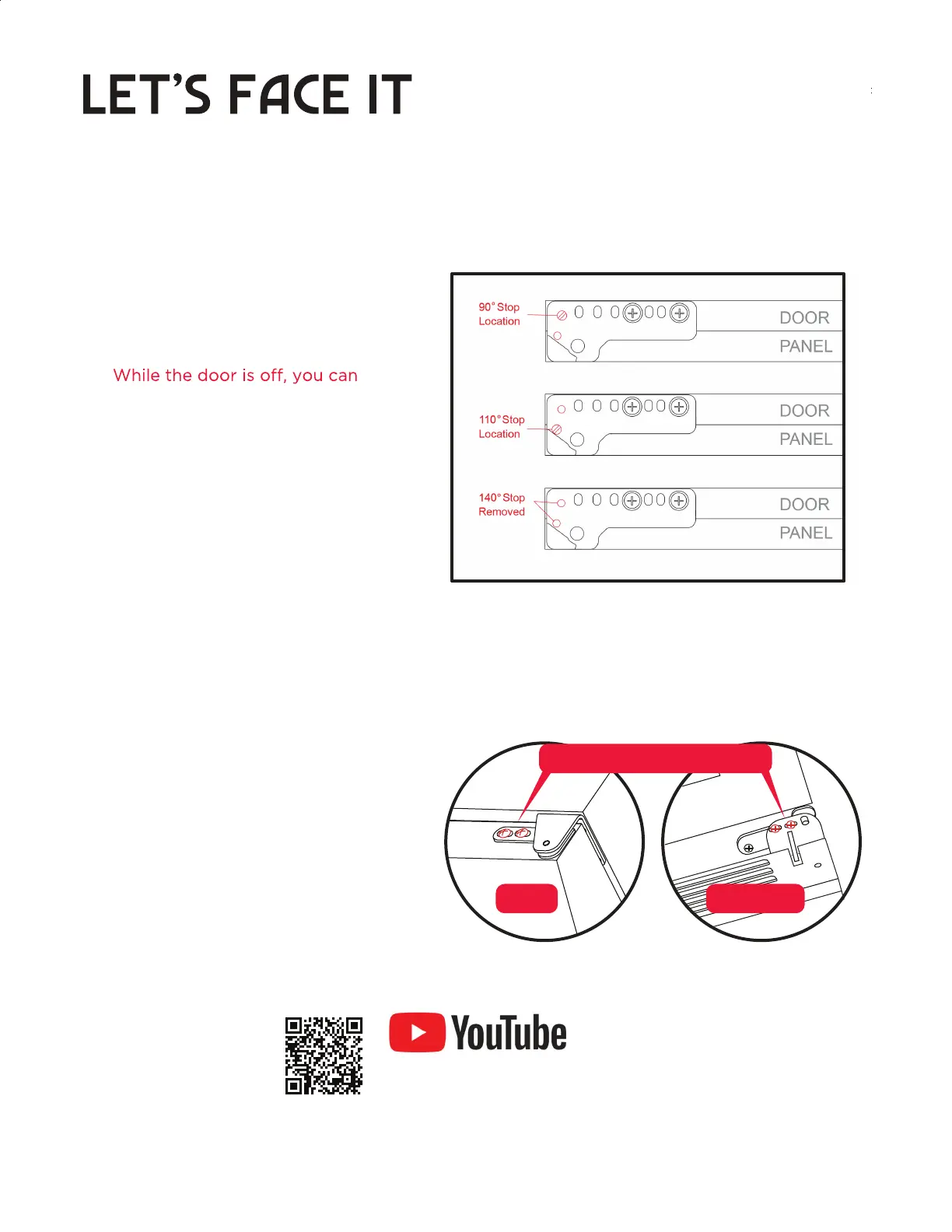

The door hinge stop is set at 110 .
change it to either 90 or 140 .
Simply change the position of
the stop screw in the lower hinge
plate as shown.
o
oo
OPTIONAL
WATCH THE INSTALLATION
VIDEO ON OUR CHANNEL
https://www.youtube.com/channel/UCT-Ip-dM9hoPydpxZfrZzRA
www.xoappliance.com
