MAXIMUM PANEL THICKNESS 3/4”
PANEL MAXIMUM WEIGHT: 20 lbs.
* FOR CABINET DOORS LONGER THAN 30” - CONSULT XO.
10
AFTER INSTALLATION UNDERC OUNTER, OVERLAY DOOR MUST BE ABLE TO OPEN 90 .
o
23 3/4” (603mm)*
3 1/4” (82mm) min
5” (127mm) max
3 1/4” (82mm) min
5” (127mm) max
2 7/8”
(73mm)
min
5”
(127mm)
max
29 3/4”
(756mm)
min
30”
(762mm)
max**

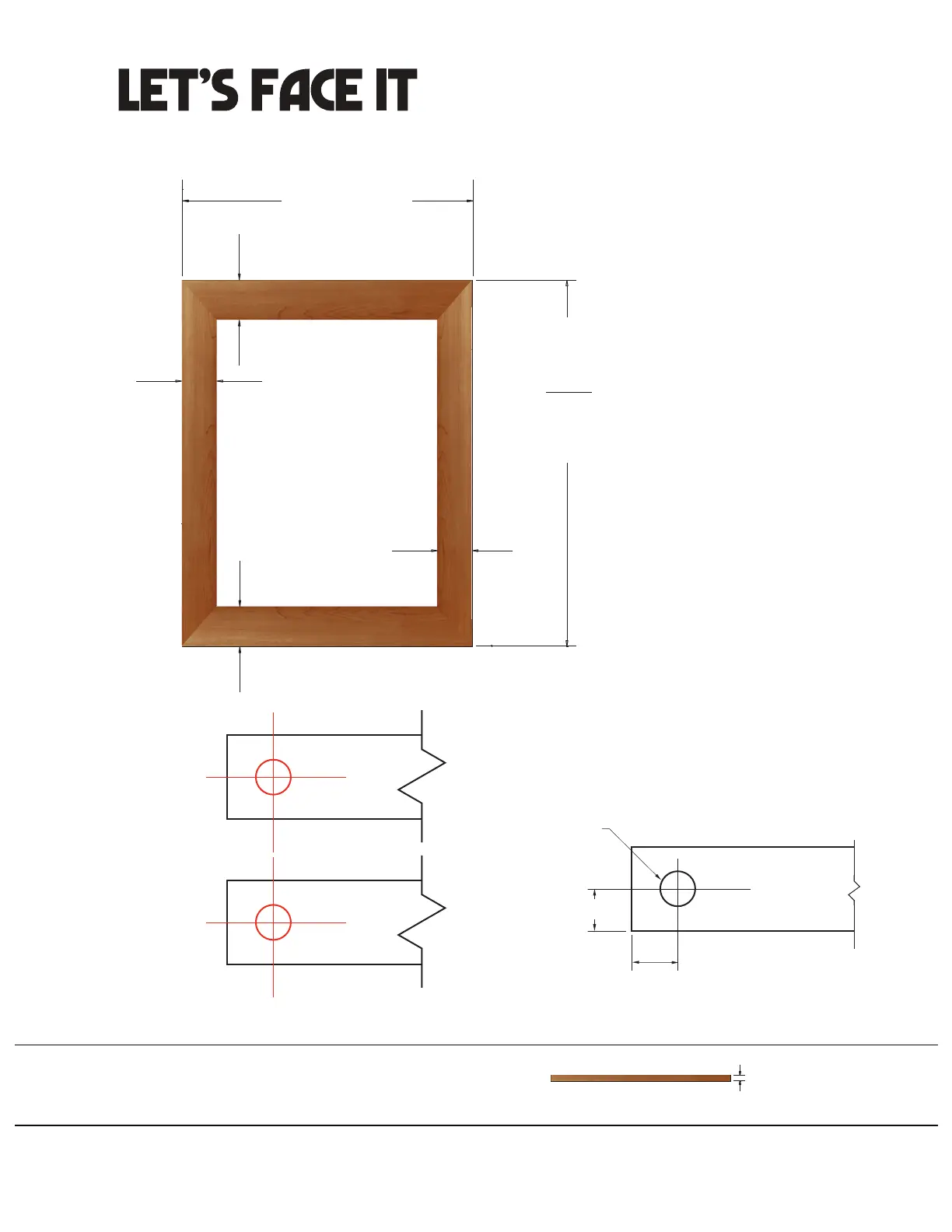

overlay panel dimensions xou24bcgo
Drill a hole at least 5/16” in diameter and
1” deep into the top and bottom of the
frame in the location shown.
TO ACCOMMODATE THE HINGE PINS
ON THE HINGE SIDE OF THE PANEL
2 7/8”
(73mm)
min
5”
(127mm)
max
* IF FRAME WIDTH EXCEEDS 23 3/4”
WHEN MOUNTING TO THE DOOR
ALIGN THE FRAME EVEN WITH THE
HINGE SIDE, LETTING THE EXCESS
OVERHANG THE HANDLE SIDE TO
AVOID INTERFERENCE WITH THE
ZERO CLEARANCE HINGE.
3/8”
13/32”
5/16” Dia.
OUTSIDE
DOOR SIDE
3/4” FRAME
3/4” FRAME
COPY AND CUT OUT
THESE HANDY
HOLE TEMPLATES
