a perfect fit

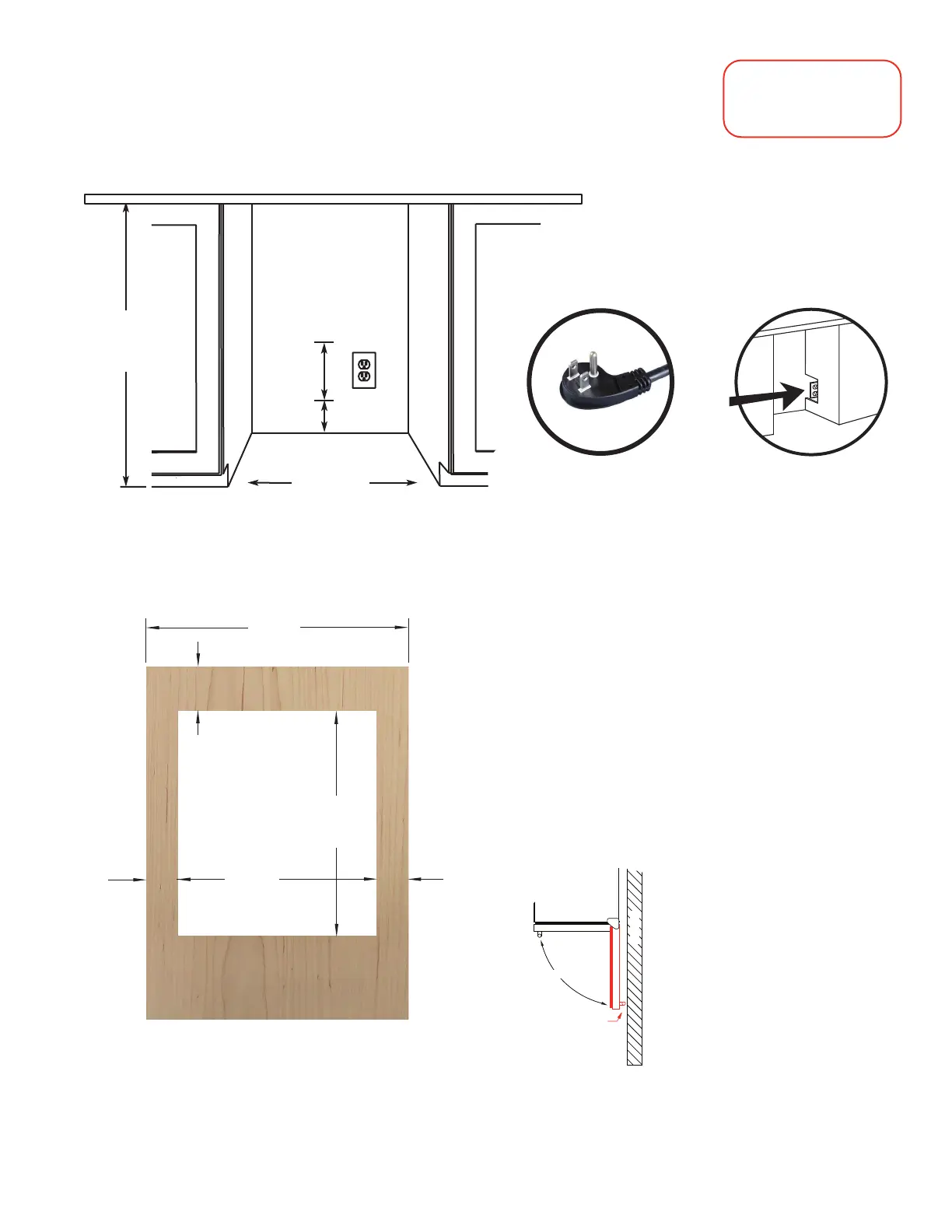

installation us standard height cabinets
rough in dimensions
overlay frame dimensions
12
IF THE DOOR CAN’T OPEN FULLY - YOU CAN’T PULL THE SHELVES OUT.
34 1/2” MIN
(876mm)
ALL XO UNDERCOUNTER
UNITS ARRIVE PRE-WIRED
WITH LOW PROFILE PLUGS
FOR EASY INSTALLATION
NEED MORE SPACE -
CUT INTO AN ADJOINING
CABINET TO REACH AN
OUTLET THERE
7”
(178mm)
4”
(102mm)
24”
(610mm)
WHEN INSTALLING WITH
- LLAW A OT TXEN EDIS EGNIH EHT
LEAVE ADEQUATE SPACE FOR
CABINET HANDLES
DOOR MUST BE ABLE TO OPEN
A MINIMUM OF 90 .
o
90°
Door Swing
WALL
Clearance
Gap
To conceal door completely observe
the frame dimensions as minimums.
To reduce possibility of warping -
overlay frame should be finished on
all sides.
23-5/8”
600mm
17-5/8”
448mm
(max width)
3”
76mm
(min width)
3”
76mm
(min width)
20”
510mm
(max height)
3-15/16”
100mm
(min height)
ADA
European
US Standard
continues on page 13
page 10
page 11
page 12
Extend the panel down to match
the height of adjoining cabinetry
but the gap between the bottom
of the door and the floor must be
at least 3” for ventilation
