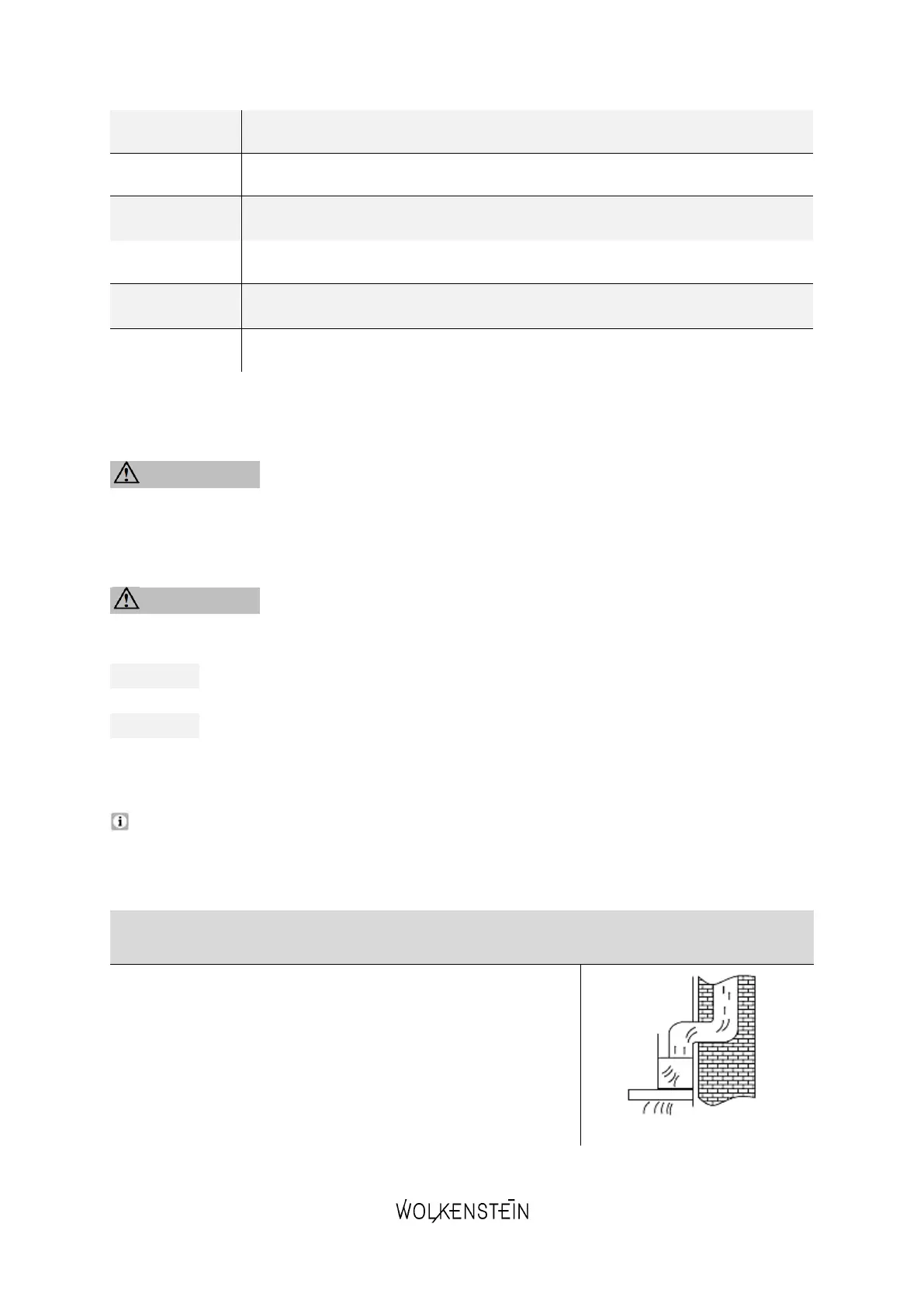

~ 60 ~
3
EXHAUST AIR OUTLET
4
ONE - WAY VALVE
5
EXHAUST HOSE (for extraction mode only)
6
OUTER CHIMNEY
7
INNER CHIMNEY
8
CHIMNEY BRACKET
2.5 Installation: one way valve / extractor hood
WARNING! For safety reasons, use only fastening or installation
screws of the sizes specified in this instruction manual. Failure to follow
the size and installation instructions for screws or mounting devices may
result in electrical hazards. RISK OF ELECTRIC SHOCK!
WARNING! Do not damage the wiring in the wall while drilling. RISK
OF ELECTRIC SHOCK!
NOTICE! Two assistants are required for installation.
NOTICE! Any damage caused by an appliance that is improperly installed
and improperly connected to the mains is not covered by the warranty or
guarantee.
We recommend carrying out the installation of the extractor hood by qualified
personnel. Damages caused by improper installation of the appliance are not
subject to the guarantee or warranty!
YOU CAN LAY THE EXHAUST HOSE AS FOLLOWS
(FOR EXTRACTION MODE ONLY)
VERTICALLY: lay the exhaust hose to a roof cap*.
Fig. similar.
