~ 65 ~

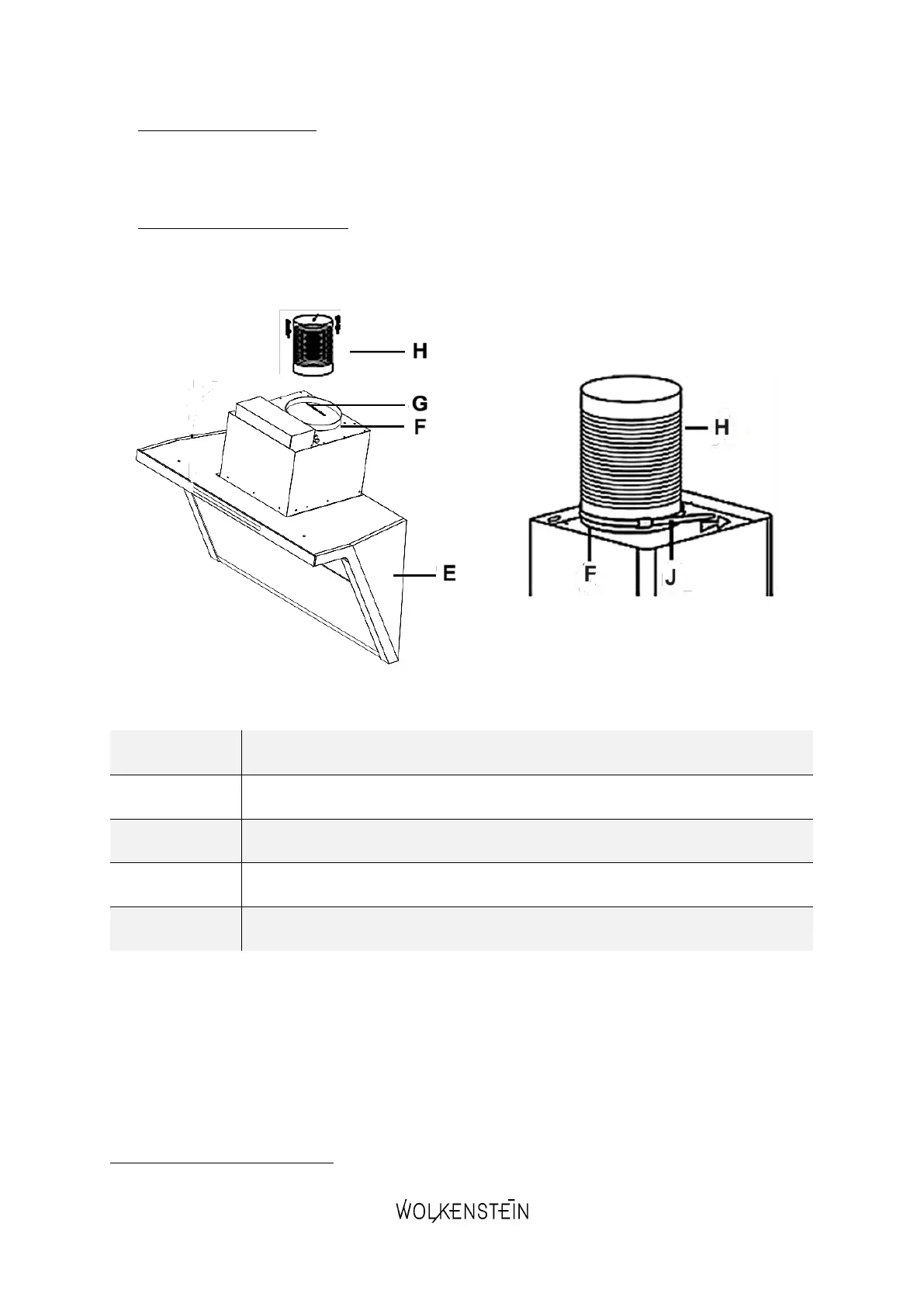

4. EXTRACTION MODE: connect the exhaust hose (H) to the exhaust air outlet (F)
of the extractor hood (E / s. fig. below on the left). Fix the exhaust hose (H)
using a cable tie (J / s. fig. below on the right).
RECIRCULATION MODE: please ignore step 4. « EXTRACTION MODE », step 7 a.
and step 9.; please observe the instructions given in chapter 3.2 RECIRCULATION
MODE.
Fig similar: figures serve as examples only.
E
HOUSING OF THE EXTRACTOR HOOD
F
EXHAUST AIR OUTLET
G
ONE - WAY VALVE
H
EXHAUST HOSE (for extraction mode only)
J
CABLE TIE
19
5. Install the extractor hood on the wall bracket (s. fig. below). Ensure that the
extractor hood is aligned horizontally.
19
Not included in the scope of delivery.
