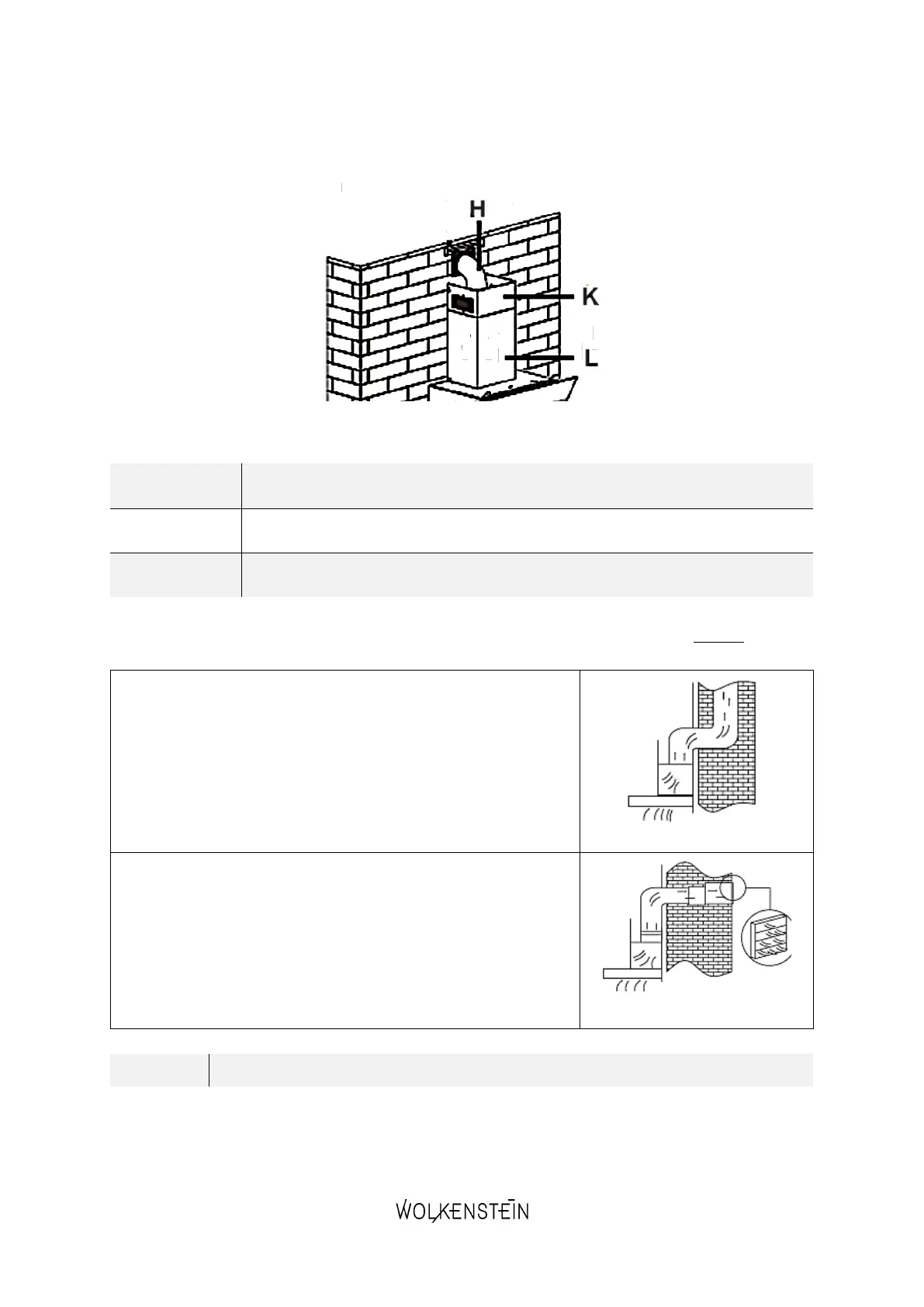

9. Guide the exhaust hose (H / for extraction mode only) to the outside (s. fig.
below and s. step 8.).
Fig similar: figure serves as an example only.
H
EXHAUST HOSE (for extraction mode only)
K
INNER CHIMNEY
L
OUTER CHIMNEY
10. You can lay the exhaust hose as follows (for EXTRACTION MODE ONLY).
VERTICALLY: lay the exhaust hose to a roof cap*.
Fig. similar.
HORIZONTALLY: lay the exhaust hose to an exhaust
outlet equipped with an air grille*.
Fig. similar.
*
Article not included in the scope of delivery.
11. Pull out the upper chimney. Align the chimney according to the installed inner
chimney bracket (O / s. fig. below). Fix the inner chimney to the inner chimney
bracket (O / s. fig below) using two screws (N = ST 4*10 mm).
