All burners on the device must be on during by-pass
flame adjustment.
1.
Turn thermostat knob to 375°F.
2. Wait 15 minutes for oven to heat up.
3. Turn thermostat knob to lowest oven setting. DO
NOT TURN OFF.
4. Observe burner flame. The flame should be
approximately 1/8" and stable on each port.

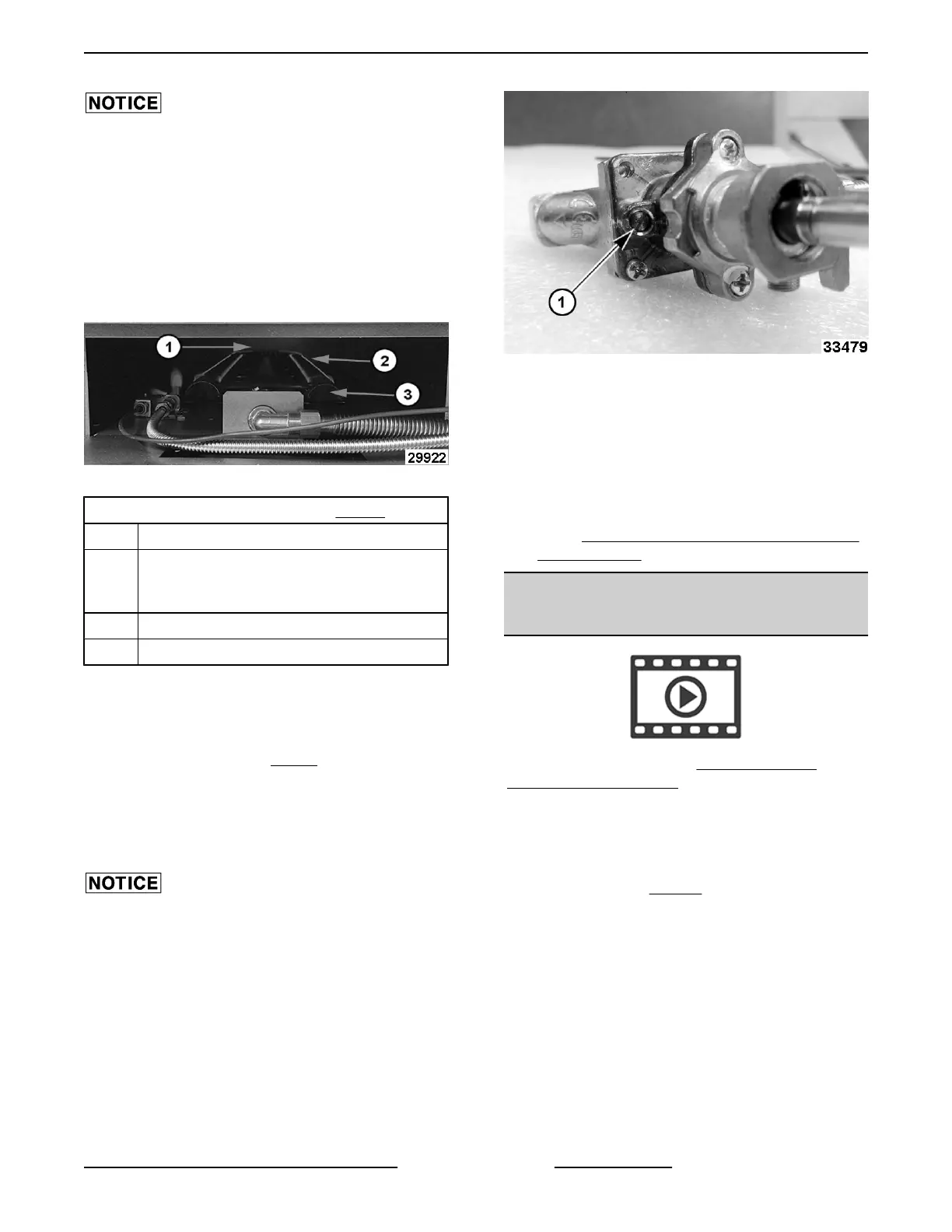

Fig. 45
By-Pass Flame Shown in Fig. 45
Item Description
1
Gap in flame, or some flickering fo the flame
is acceptable, only in the U-shape bend of
the burner.
2 By-Pass flame.
3 Oven burner.
5. Remove thermostat knob.
6. Adjust by-pass flame.
NOTE: With small flat edge screwdriver, turn by-pass
flame adjustment screw (1, Fig. 46) or ports should be
set to just above “flickering”.
• Counterclockwise to increase by-pass
flame.
• Clockwise to decrease flame.
Both legs of burner should have approximately 1/8"
stable flame on each port.
Fig. 46
7. Replace thermostat knob.
8. Turn knob to 400°. Verify increase in flame height
on burner ports.
9. Turn knob back to lowest oven setting. Verify
decrease in by-pass flame height on burner ports
and that burner remains lit.
10. Verify OVEN THERMOSTAT TEMPERATURE
CALIBRATION.
OVEN THERMOSTAT
TEMPERATURE CALIBRATION
NOTE: Video available for Oven Thermostat
Temperature Adjustment.
1. Pull oven temperature knob off.
2. Separate the knob from the stem.
3. Check oven temperature using temperature
tester. Refer to: TOOLS.
4. Rotate knob left or right to temperature test
reading and slide onto stem.
NOTE: If needed, loosen dial screws, rotate the dial
to match temperature test reading and tighten screws.
WX RANGE - 3. SERVICE PROCEDURES, TEST AND ADJUSTMENTS
Page 17 of 27 F45992 (1123)
