vMON-Series
Page 20
4. SMPTE Standard: Display of the SMPTE protocol. (SDI only)
5. Color Depth: Display of the Color Depth of the signal.
6. Color Format: Display of the Color Format of the signal.
7. Data Level: Display of the Data Level of the signal. (HDMI only)
8. Picture Rate: Display of the Picture Rate of the signal. (SDI only)
9. Scanning Method: Display of the Scanning Method of the signal. (SDI only)
10. Colorimetry: Display of the Colorimetry of the signal.
11. Link Assignment: Display of the Link Assignment of the SDI signal.
Configuration Menu
Rotate the U+D Image knob to highlight the Config selection and press the U+D
Image knob to enter the submenu. This menu will let you save, load or perform
other operations on the monitor configurations. This menu is shown in Figure 2-10.
Use the L+R Volume and U+D Image knobs to travel through the menu and
make changes, as explained in the Menu Navigation section of this chapter.

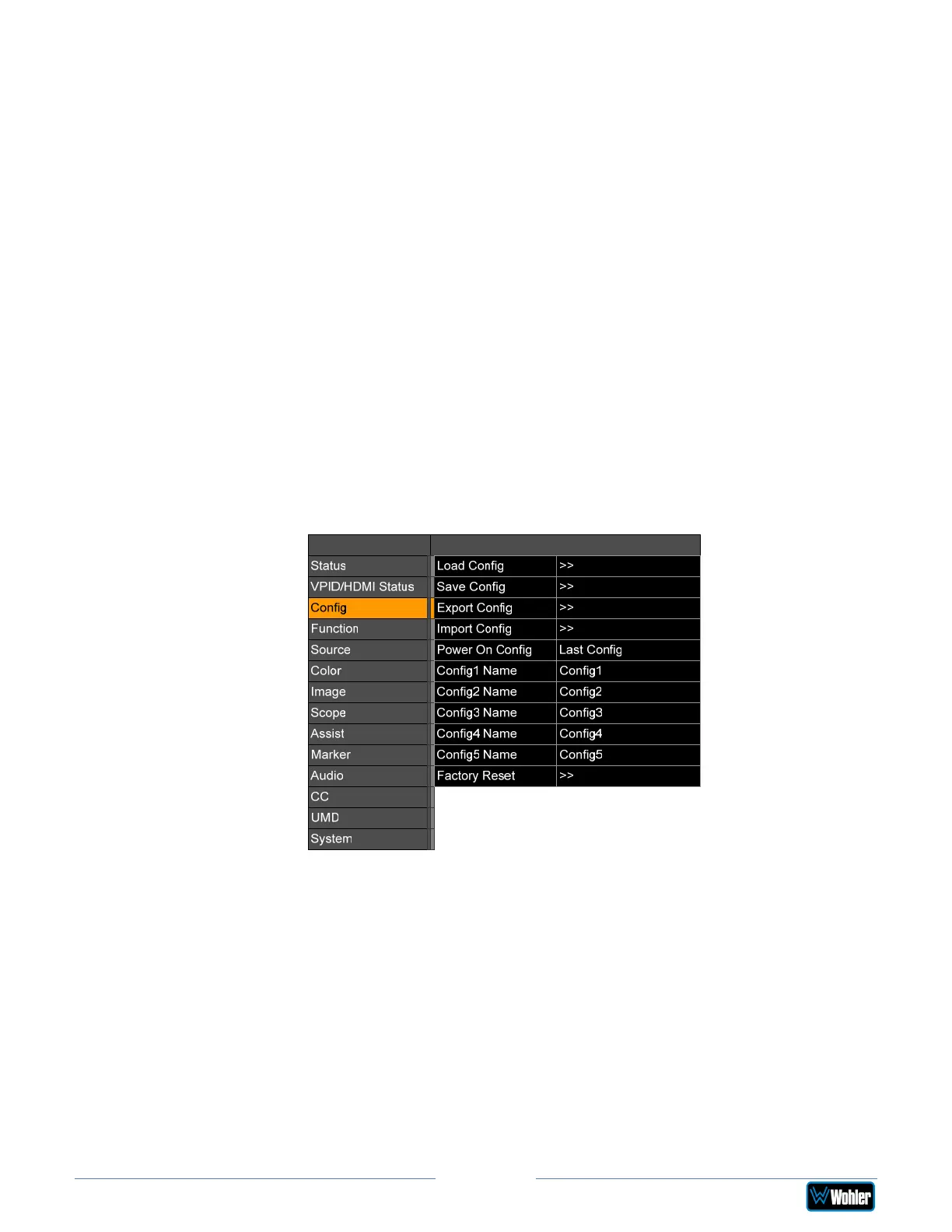

Figure 2-10: Config Menu
The items this menu contains are as follows:
1. Load Config: Use this to select Configurations 1 through 5 to load.
2. Save Config: Use this to select Configurations 1 through 5 to save. Note
that in the Function menu, the S1 through S4 buttons, for example, can be
set to enable Configurations. After modifying parameters, be sure to save the
Configuration by pressing the L+R Volume knob, otherwise pressing the S1
through S4 buttons will still load the previous Configuration.
3. Export Config: Use the U disk to export either the current Configuration or
all Configurations.
4. Import Config: Import either the current Configuration or all Configurations
from the U disk.
5. Power On Config: This sets which Configuration will be loaded when the
