vMON-Series
Page 31
c. VITC2: The Time Code will be displayed as VITC2.
d. LTC: The Time Code will be displayed as LTC.
Note: Time Code cannot be displayed on HDMI signals.
8. Time Code Position: The Time Code display may be set to the Top of the
screen or the Bottom of the screen.
Marker Menu
Rotate the U+D Image knob to highlight the Marker selection and press the U+D
Image knob to enter the submenu. This menu allows you to set the various Marker
functions of the monitor. This menu is shown in Figure 2-17.
Use the L+R Volume and U+D Image knobs to travel through the menu and
make changes, as explained in the Menu Navigation section of this chapter.

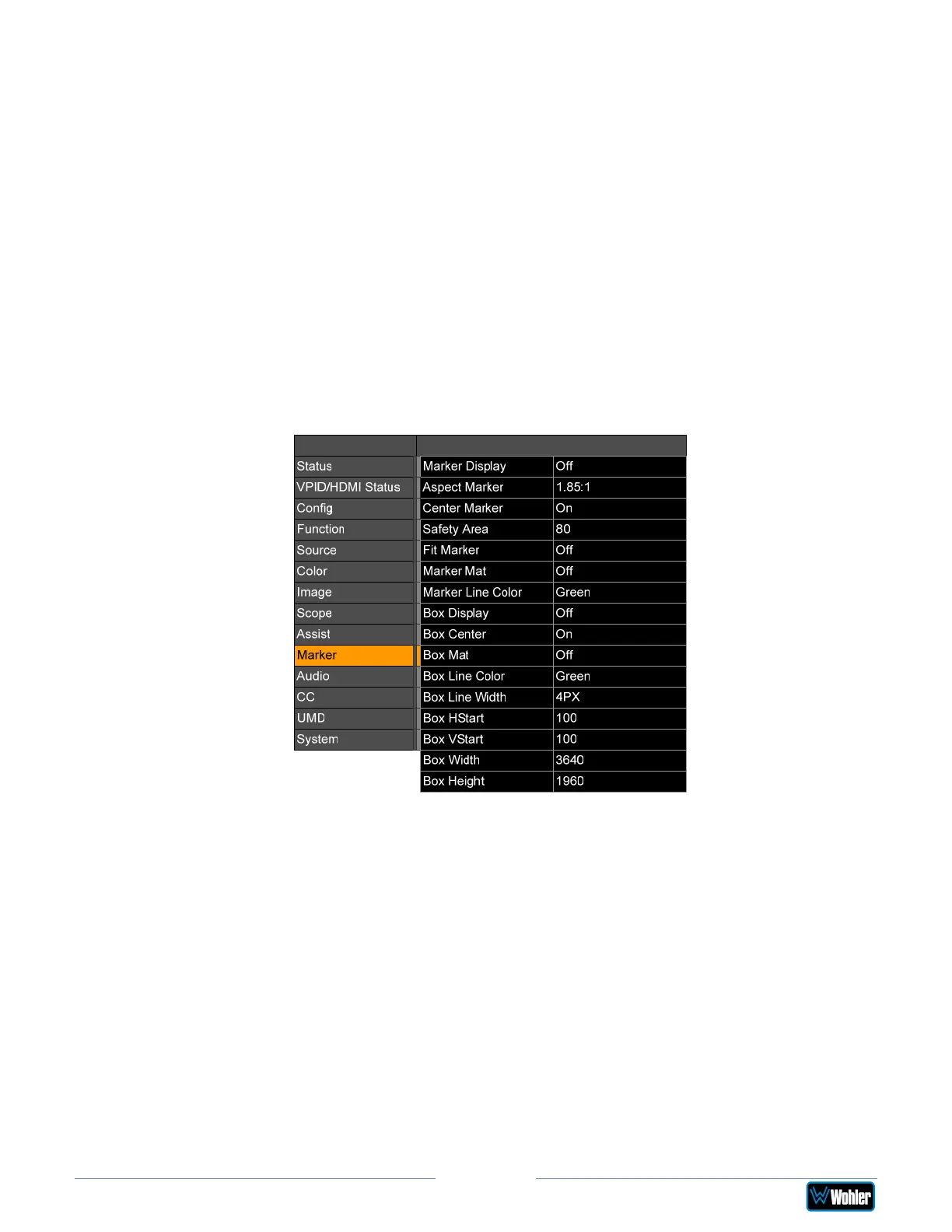

Figure 2-17: Marker Menu
The items it contains are as follows:
1. Marker Control: This selection turns all markers ON you have enabled or
turns them OFF.
2. Aspect Marker: The Area Marker may be set to OFF or may be set to
various ratios: 4:3, 16:9, 15:9, 14:9, 13:9, 1.85:1, or 2.35:1.
3. Center Marker: The Center Marker may be turned to OFF or ON.
4. Safety Area: The Safety Area marking may be turned OFF or it may be set
to various percentages: 80%, 85%, 88%, 90%, or 93%.
5. Fit Marker: The Fit Marker may be turned OFF or ON.
6. Marker Mat: The Marker Mat may be turned OFF or it may be set to Black
or Gray.
7. Marker Line Color: This turns the Marker Line on and to one of the
following colors: White, Red, Green, Blue, or Gray.
