vMON-Series
Page 12
2. DC Power: This is a 4-pin XLR-M jack. A 12V battery (not supplied) or a 12VDC
power supply (not supplied) can be connected to this connector for operation when
not connected to the AC mains. The pinout is shown in Figure 2-3. Observe the
polarity shown. This connector may not be present in some models.

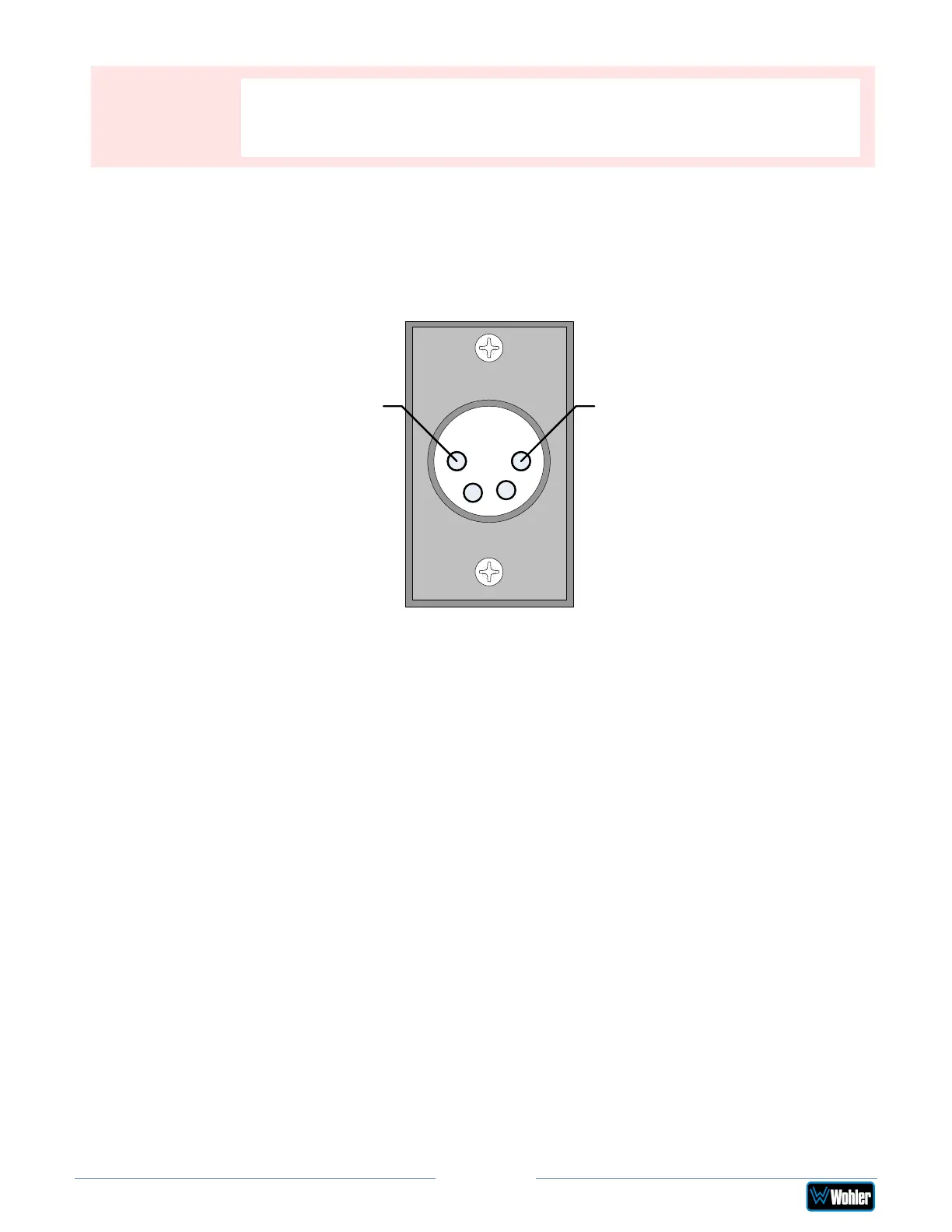

Figure 2-3: DC Power Connector Pinout
1 4
3
Pin 1
Gnd
Pin 4
+12VDC
2
3. Audio Out: This is a 3.5mm stereo jack. It produces analog audio from the
monitored video signal. It can be connected to an external audio amplifier or to
headphones.
4. 12G SDI In/Out: The IN connector receives a 12G/6G/3G/HD/SD-SDI signal to be
monitored and the OUT connection outputs this signal. The number of 12G In/Out
pairs will vary according to model. Refer to the Tables and Block Diagrams in
Chapter 3 of this manual.
5. 3G SDI In/Out: The IN connector receives a 3G/HD/SD-SDI signal to be
monitored and the OUT connection outputs this signal. The number of 3G In/Out
pairs will vary according to model. Refer to the Tables and Block Diagrams in
Chapter 3 of this manual.
6. HDMI In/Out: An HDMI input and output is provided. They will support a
4096x2160 60Hz (4K/60p) maximum signal.
7. RS-422 In/Out: RS-422 In and Out connections are provided. This uses an
adaptive TSL3.1 or TSL4.0 protocol. This protocol supports a dynamic UMD/Tally
control. The RS-422 interface operates at 38400 baud, 8-bit data, 1 stop bit and
even parity. Refer to the pinout in Figure 2-4 and to the connection chart in Table
2-1.
Important:
By design, the supplied AC mains power cord will only plug into a
three-prong grounded outlet for your safety. If the plug does not fit
into the outlet, contact an electrician to replace the obsolete outlet.
