vMON-Series
Page 13

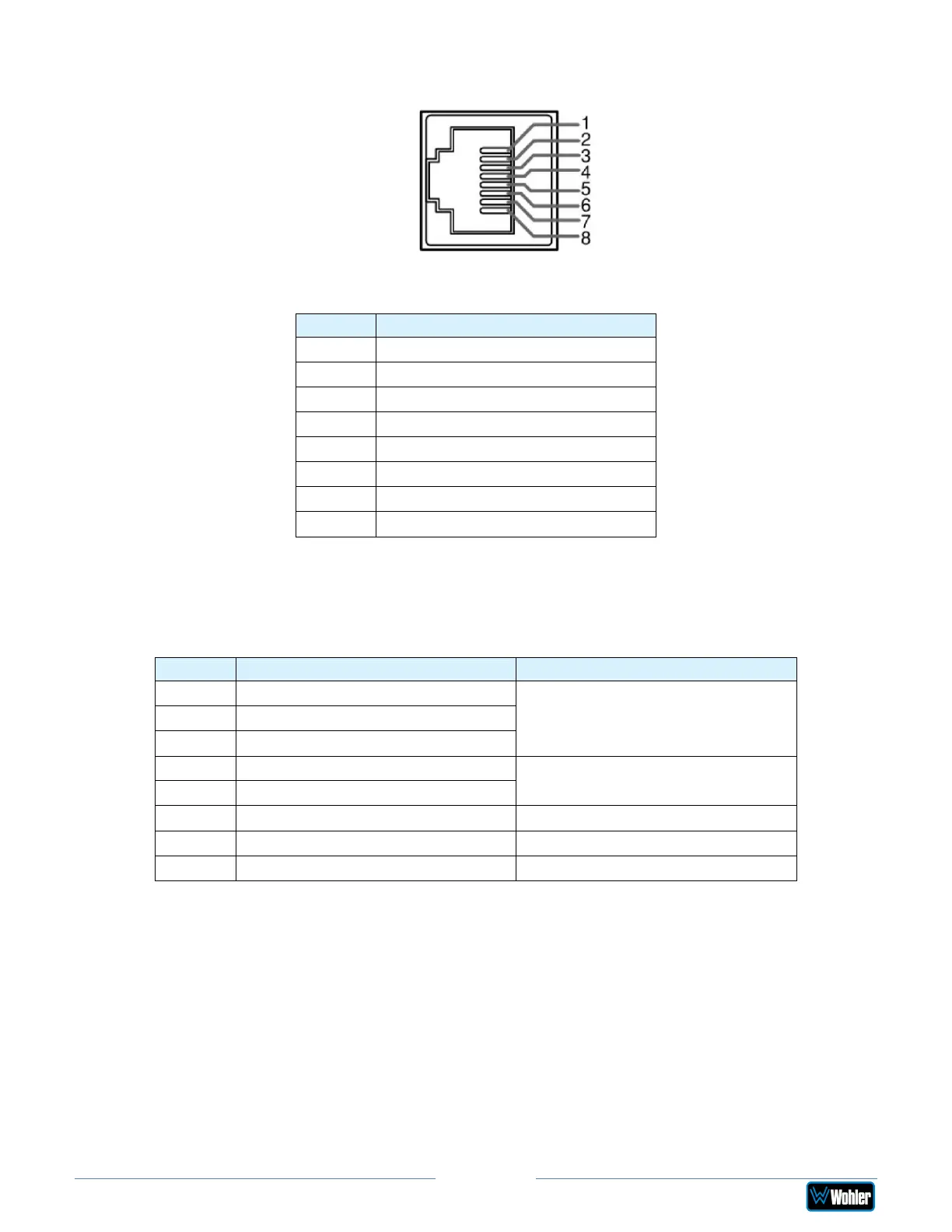

Figure 2-4: RS-422 Jack Pinout
Table 2-1: RS-422 Jack Connections
Pin
Function
1 GND (Power Ground)
2 GND (Power Ground)
3 Tx-
4 Rx+
5 RX-
6 Tx+
7 NC (No Connection)
8 NC (No Connection)
8. GPI: A GPI interface is provided for external control. Refer to the pinout in Figure
2-3 and to the connection chart in Table 2-2.
Table 2-2: GPI Jack Connections
Pin
GPI Signal
Description
1 GPI 1
2 GPI 2
3 GPI 3
Activates when grounded or
set to a low level. GPI 1, 2, 3,
and 4 functions set in menu.
4 NC
5 NC
No Connection
6 GPI 4 As with GPI 1, 2, or 3 above.
7 NC No Connection
8 GND GPI Ground return
9. LAN: This Ethernet port can be used for color correction, upgrading, or remote
network control UMD via TSL5.0. Please contact Wohler Technical Service for
further information.
10.SDI SFP+: This SFP+ cage accepts an optional 12G/6G/3G/HD/SD-SDI optical
input module.
11.USB: This USB 2.0 Type A connector allows you to use a flash drive (not supplied)
to perform updates to the monitor FPGA, OSD, APP EDP software, or LUT file.
